Description

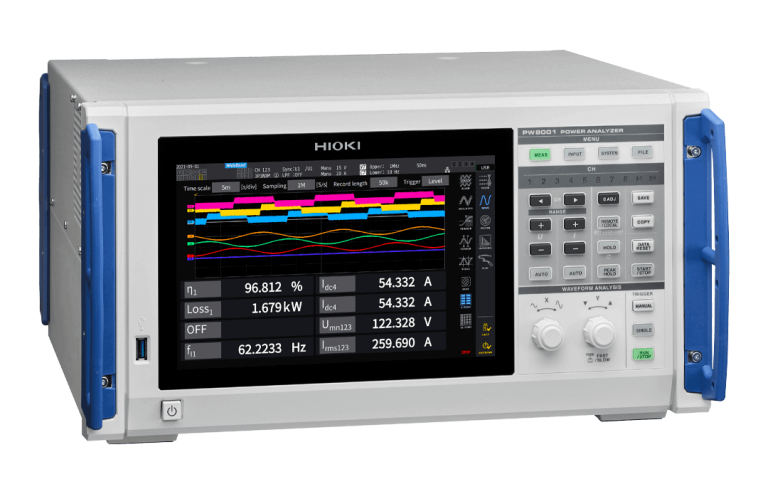

Welcome to the Hioki PW8001-04 POWER ANALYZER, a cutting-edge instrument designed to provide accurate and reliable power measurements for a wide range of applications. At MME, we understand the importance of precise power analysis in ensuring the efficiency and reliability of electrical systems.

With its high-accuracy measurement capabilities, the Hioki PW8001-04 is ideal for applications such as power quality analysis, motor testing, and harmonic measurement. Its wide measurement range for voltage and current ensures that it can handle a variety of measurement tasks with ease.

Hioki PW8001-04 Key Features

The Hioki PW8001-04 POWER ANALYZER boasts a range of advanced features that make it an essential tool for power measurement and analysis. Some of its key features include:

Measurement lines: 1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units: Max. 8 units (mix and match)

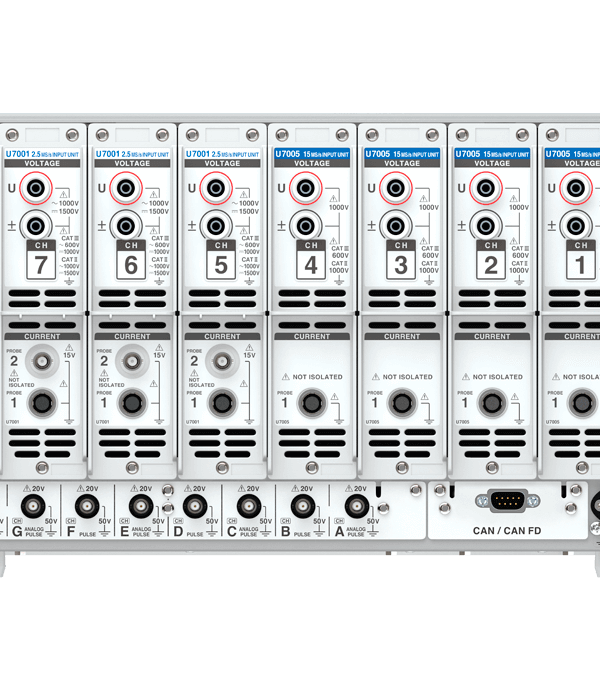

Type of input unit: U7001 2.5 MS/s INPUT UNIT, U7005 15 MS/s INPUT UNIT
Measurement frequency band: U7001: DC, 0.1 Hz to 1 MHz, U7005: DC, 0.1 Hz to 5 MHz
Sampling: U7001: 2.5 MHz, 16-bit, U7005: 15 MHz, 18-bit
Data update rate: 1 ms, 10 ms, 50 ms, 200 ms

Who Needs the Hioki PW8001-04?

The Hioki PW8001-04 POWER ANALYZER is designed for a wide range of applications, including:

Power quality analysis

Motor testing

Harmonic measurement

Waveform recording

Motor analysis

FFT analysis

Flicker measurement

IEC-compliant harmonic measurement

IEC-compliant flicker measurement

Hioki PW8001-04 Applications

The Hioki PW8001-04 POWER ANALYZER is suitable for a variety of applications, including:

Power quality analysis
Motor testing
Harmonic measurement
Waveform recording
Motor analysis
FFT analysis
Flicker measurement
IEC-compliant harmonic measurement
IEC-compliant flicker measurement

Why Buy Hioki PW8001-04 from mme-ae?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At mme-ae, we offer a wide range of Hioki products, including the PW8001-04 POWER ANALYZER. Our experienced team is dedicated to providing exceptional customer service and support to ensure that you get the most out of your purchase.

Whether you’re looking for a reliable power analyzer for your laboratory or a high-accuracy instrument for your industrial application, we’ve got you covered. Browse our selection of Hioki products today and discover the difference that mme-ae can make.

Hioki PW8001-04 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)
Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
