Description

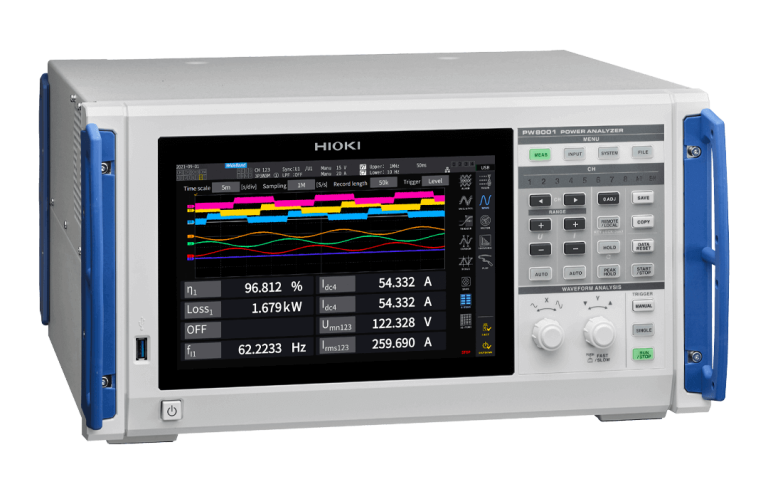

At Mohammad Mahdi Electronics, we offer the Hioki PW8001-11 POWER ANALYZER, a high-accuracy power measurement instrument designed for various applications. With its wide measurement range for voltage and current, this analyzer is ideal for power quality analysis in industrial, commercial, and residential settings.

The Hioki PW8001-11 features IEC-compliant harmonic measurement and flicker measurement, making it an excellent choice for applications that require precise power quality analysis. Additionally, it supports motor analysis and FFT analysis, providing valuable insights into motor performance and efficiency.

Hioki PW8001-11 Key Features

The Hioki PW8001-11 POWER ANALYZER boasts several key features that make it an essential tool for power quality analysis. These include:

Measurement lines: 1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units: Max. 8 units (mix and match)
Type of input unit: U7001 2.5 MS/s INPUT UNIT, U7005 15 MS/s INPUT UNIT
Measurement frequency band: U7001: DC, 0.1 Hz to 1 MHz, U7005: DC, 0.1 Hz to 5 MHz
Sampling: U7001: 2.5 MHz, 16-bit, U7005: 15 MHz, 18-bit
Data update rate: 1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001): 50/60 Hz: 0.02% of reading + 0.05% of range, DC: 0.02% of reading + 0.05% of range, 50 kHz: 0.4% of reading + 0.1% of range
Accuracy for power (U7005): 50/60 Hz: 0.01% of reading + 0.02% of range, DC: 0.02% + 0.03% of reading of range, 50 kHz: 0.15% of reading + 0.05% of range
Measurement range: Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V, Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA
Measurement parameters: voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)

Who Needs the Hioki PW8001-11?

The Hioki PW8001-11 POWER ANALYZER is designed for various applications, including power quality analysis in industrial, commercial, and residential settings. It is ideal for:

Industrial applications:

Commercial applications:

Residential applications:

Hioki PW8001-11 Applications

The Hioki PW8001-11 POWER ANALYZER has various applications, including:

Power quality analysis

Harmonic measurement

Flicker measurement

Motor analysis

FFT analysis

Waveform recording

Why Buy Hioki PW8001-11 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki PW8001-11 POWER ANALYZER at competitive prices, along with excellent customer support and service. Our team of experts can help you choose the right instrument for your application and provide training and support to ensure that you get the most out of your investment.

Additionally, we offer a wide range of power quality analyzers from leading manufacturers, including Hioki. We are committed to providing our customers with the best possible products and services, and we look forward to serving you.

Hioki PW8001-11 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)

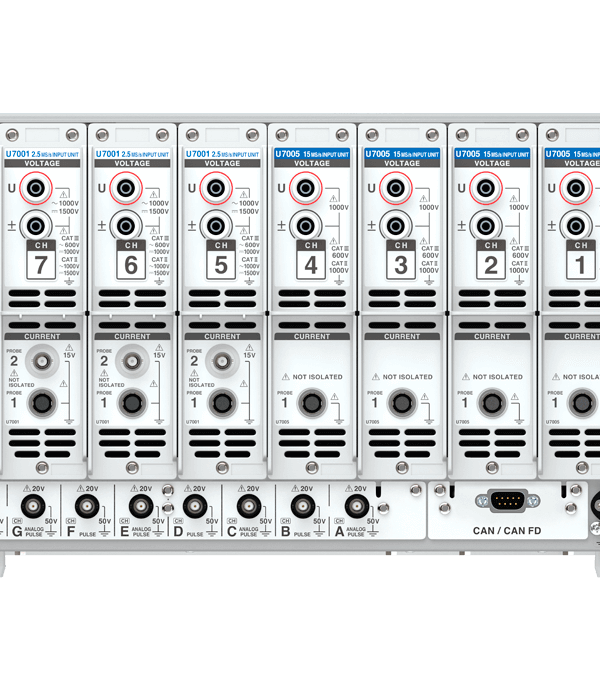

Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
