Description

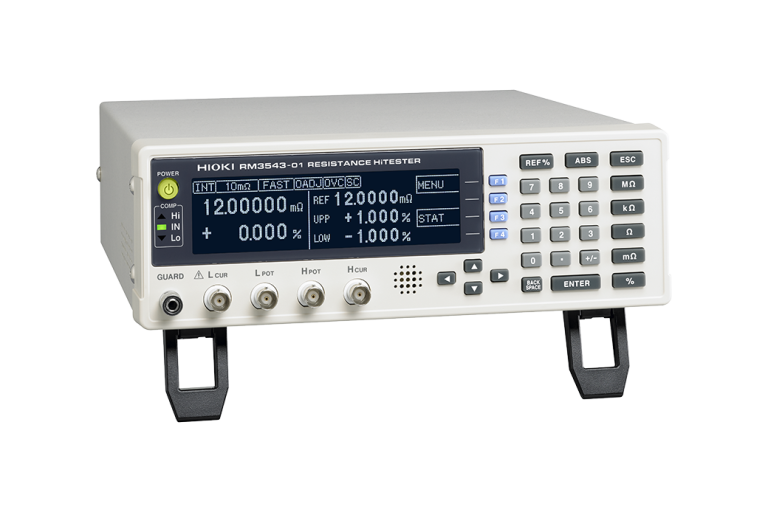

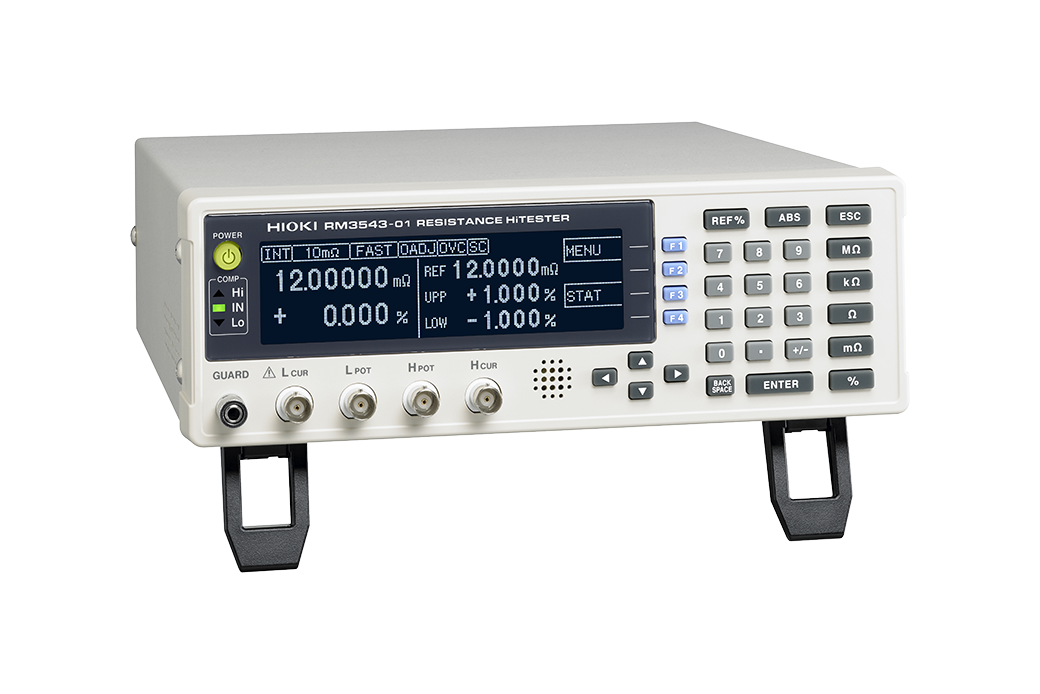

At MME, we offer the Hioki RM3543-01 RESISTANCE HiTESTER, a reliable and accurate instrument for measuring electrical resistance. With its four-terminal, constant-current DC measurement method, this device provides precise results across a wide range of resistance values.

Whether you’re working in a laboratory, testing electrical components, or ensuring compliance with electrical safety standards, the Hioki RM3543-01 is an essential tool. Its Hioki heritage and reputation for quality ensure that you’re getting a top-notch instrument for your needs.

Hioki RM3543-01 Key Features

The Hioki RM3543-01 offers a range of features that make it an ideal choice for electrical testing and measurement. These include:

Measurement method: Four-terminal, constant-current DC
Resistance range: 10 mΩ to 1000 Ω
Display: Monochrome graphic LCD 240 × 64 dot, white LED backlight
Measurement accuracy: ±0.060 % rdg. ±0.001 % f.s.
Testing current: 1 A DC to 1 mA DC
Open-terminal voltage: 20 V DC max.
Sampling rate: FAST, MEDIUM, SLOW, 3 settings
Integration time: 0.1 ms to 100.0 ms

Who Needs the Hioki RM3543-01?

The Hioki RM3543-01 is designed for a wide range of applications, including:

Electrical testing and measurement

Compliance with electrical safety standards

Research and development

Quality control

Manufacturing

Hioki RM3543-01 Applications

The Hioki RM3543-01 is suitable for a variety of applications, including:

Electrical testing and measurement

Compliance with electrical safety standards

Research and development

Quality control

Manufacturing

Why Buy Hioki RM3543-01 from MME?

At mme-ae, we offer the Hioki RM3543-01 RESISTANCE HiTESTER at competitive prices, along with excellent customer service and support. Whether you’re looking for a reliable instrument for electrical testing and measurement or need help with electrical instruments, our team is here to assist you.

We also offer a range of Hioki instruments, including the Hioki RM3543-01, which is designed to meet the needs of professionals in a variety of industries.

Hioki RM3543-01 Specifications

Measurement method	Four-terminal, constant-current DC
Resistance range	10 mΩ (Max. 12.00000 mΩ, 0.01 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 7 steps
Display	Monochrome graphic LCD 240 × 64 dot, white LED backlight
Measurement accuracy	[at 10 mΩ range, with SLOW mode, average 16 times settings] ±0.060 % rdg. ±0.001 % f.s.
Testing current	[at 10 mΩ range] 1 A DC to [at 1000 Ω range] 1 mA DC
Open-terminal voltage	20 V DC max. Note: Voltage when not measuring is 20 mV or less, with current mode set at PULSE and Contact Improver Setting set at OFF/PULSE (measured with a voltmeter having 10 MΩ)
Sampling rate	FAST, MEDIUM, SLOW, 3 settings
Integration time	[at 10 mΩ range, default value] FAST 2.0 ms, MED 5.0 ms, SLOW 1 PLC, Setting range: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz Note: PLC = one power line cycle (mains wave-form period)
Other functions	Comparator (compare setting value with measurement value), Delay, OVC (offset voltage compensation), Average, Measurement fault detection, Probe short-circuit detection, Improve contact, Current mode setting (A pulse application function that applies current only during measurement), Auto-memory, Statistical calculations, Settings monitor (when using two instruments, a difference in settings causes warning notification), Retry, Trigger function. etc,.
Interfaces	External I/O, RS-232C, Printer, GP-IB (Model RM3543-01)
External I/O	Trigger, Hold input, Comparator output, Settings monitor terminal, Service power output +5V, +12V, etc.
Power supply	100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass	260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 3.0 kg (105.8 oz)
Included accessories	Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1
