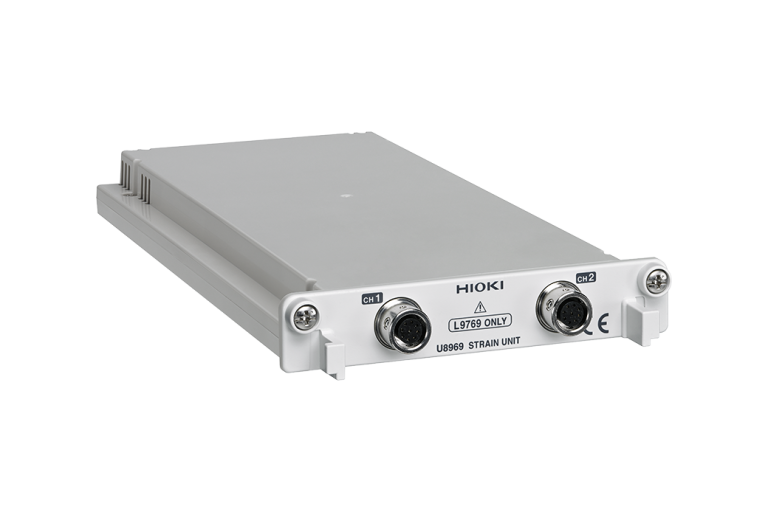

Hioki U8969 Strain Unit — Electrical Measurement and Testing

At Mohammad Mahdi Electronics, we offer the Hioki U8969 Strain Unit for precise electrical measurement and testing. This unit is designed to measure strain gauge signals with high accuracy, making it an essential tool for various applications.

With its 2-channel measurement capability, the Hioki U8969 enables distortion analysis, allowing you to capture detailed information about your electrical signals. The NDIS connector provides easy connection to your measurement setup, while the 30 V rms or 60 V DC rated voltage ensures safe operation.

Hioki U8969 Key Features

The Hioki U8969 Strain Unit offers several key features that make it an ideal choice for electrical measurement and testing:

• Measurement functions: Measures strain gauge signals with high accuracy
• Number of channels: 2, for distortion measurement (electronic auto-balancing, balance adjustment range within ±10 000 µε or less)
• Input terminals: NDIS connector EPRC07-R9FNDIS (via Conversion Cable L9769, NDIS connector PRC03-12A10-7M10.5)
• Max. rated voltage to ground: 30 V rms or 60 V DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
• Suitable transducer: Strain gauge converter, Bridge impedance: 120 Ω to 1 kΩ, Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0
• Measurement range: 20 µε to 1000 µε/div, 6 ranges, full scale: 20 div
• Low-pass filter: 5/10/100 Hz, 1 kHz
• Measurement resolution: 1/1250 of measurement range (using 16-bit A/D conversion)
• Maximum sampling rate: 200 kS/s (simultaneous sampling across 2 channels)

Who Needs the Hioki U8969?

The Hioki U8969 Strain Unit is designed for various applications, including:

Electrical measurement and testing

Distortion analysis

Strain gauge signal measurement

High-accuracy measurement

Compact design for easy integration

Hioki U8969 Applications

The Hioki U8969 Strain Unit is suitable for a range of applications, including:

Why Buy Hioki U8969 from mme-ae?

At mme-ae, we offer the Hioki U8969 Strain Unit for precise electrical measurement and testing. Our team of experts is dedicated to providing you with the best possible service and support. Whether you’re looking for a reliable measurement solution or need help with your electrical testing needs, we’re here to help.

Discover more about our recorders and dataloggers or explore our measurement guides for expert advice and insights.

Hioki U8969 Specifications
