Hioki U8979 Charge Unit — Electrical Safety and Measurement Solutions | MME

At MME, we offer the Hioki U8979 Charge Unit, a cutting-edge solution for electrical safety and measurement applications. This charge unit is designed to provide accurate measurements of acceleration and voltage, making it an essential tool for various industries.

With its compact design and lightweight construction, the Hioki U8979 is easy to integrate into your existing setup. Its 2 channels allow for simultaneous measurement, making it ideal for applications where multiple measurements are required.

Hioki U8979 Key Features

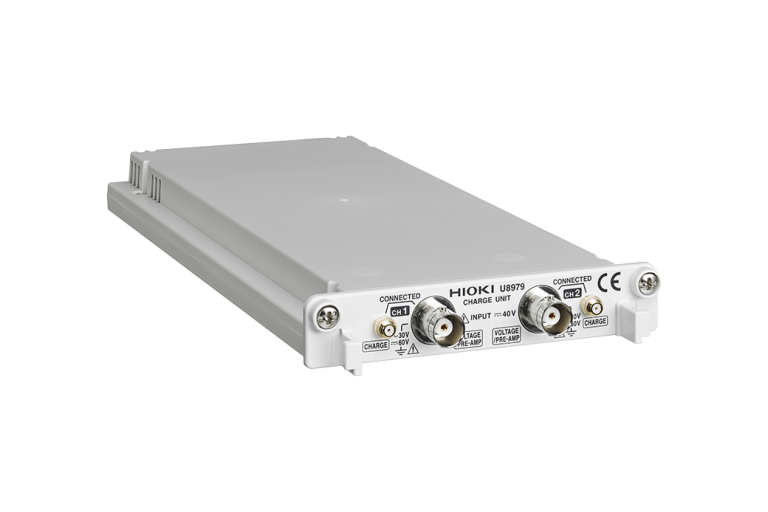

The Hioki U8979 features a range of measurement functions, including acceleration measurement, voltage input, and charge input. Its input terminals are designed for optimal measurement, with a metal BNC terminal for voltage input and a miniature connector for charge input.

• Measurement functions: Acceleration measurement, voltage input, and charge input
• Number of channels: 2
• Input terminals: Input for voltage input / preamplifier built-in: Metal BNC terminal, Charge input: Miniature connector (# 10-32 UNF)
• Adaptive converter: Charge output type acceleration detector, Accelerometer with built-in preamplifier
• Measurement range: 1 (m/s^2) to 200 k (m/s^2) f.s., 12 ranges × 6 kinds
• Charge input sensitivity: 0.1 to 10 pC / (m/s^2)
• Preamplifier Built-in sensor input sensitivity: 0.1 to 10 mV / (m/s^2)
• Amplitude accuracy: ± 2% f.s.
• Frequency characteristic: 1 (1.5) to 50 kHz -3 dB (charge input)
• Low pass filter: 500/5 kHz
• Preamplifier power supply: 3.5 mA ± 20%. 22 V ± 5%
• Maximum input charge: ± 500 pC (high sensitivity side 6 range), 50.000 pC (low sensitivity side 6 range)
• Measurement range Voltage input: 10 mV to 40 V f.s., 12 ranges, DC amplitude accuracy: ± 0.5% f.s.
• Frequency characteristics: DC to 50 kHz -3 dB (when DC-coupled), 1 Hz to 50 kHz -3 dB (when AC-coupled)
• Low pass filter: 5/500/5 kHz, Input coupling: AC/DC/GND
• Max. allowable voltage: 40 V DC
• Measurement resolution: 1/25000 of measurement range (using 16-bit A/D conversion)
• Highest sampling rate: 200 kS/s
• Anti-aliasing filter: Built-in filter for eliminating aliasing phenomenon (aliasing distortion) in FFT operation (Cutoff frequency automatic setting / OFF)
• TEDS: IEEE 1451.1.4 class 1 compatible (Reading sensor information, corresponding to automatic setting of sensitivity)

Who Needs the Hioki U8979?

The Hioki U8979 is designed for various industries, including electrical safety and measurement applications. Its compact design and lightweight construction make it ideal for applications where space is limited.

With its 2 channels, the Hioki U8979 allows for simultaneous measurement, making it an essential tool for applications where multiple measurements are required.

Whether you’re working in electrical safety, measurement, or other related fields, the Hioki U8979 is a reliable solution for your measurement needs.

Hioki U8979 Applications

The Hioki U8979 is suitable for a range of applications, including:

• Electrical safety testing
• Measurement and monitoring
• Research and development
• Quality control

Why Buy Hioki U8979 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At mme-ae, we offer the Hioki U8979 as part of our range of electrical safety and measurement solutions. Our team of experts is dedicated to providing the best possible service and support to ensure that you get the most out of your purchase.

With our competitive pricing and fast shipping, you can trust mme-ae to provide you with the best possible value for your money.

Hioki U8979 Specifications
