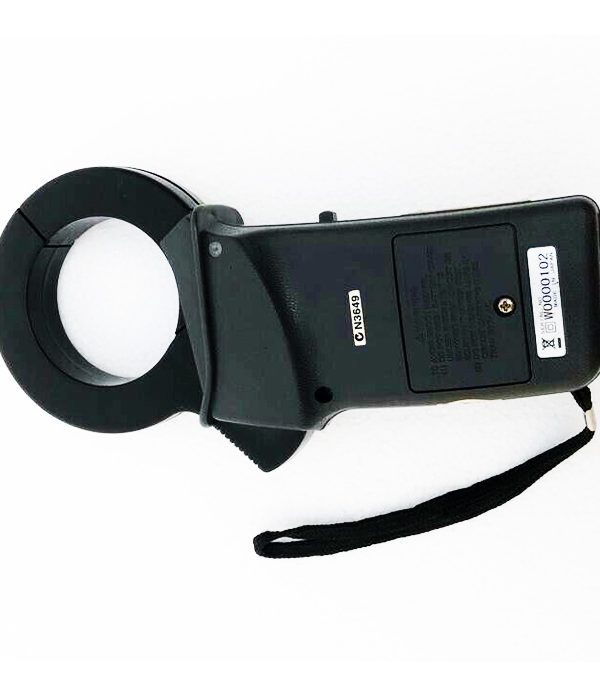

Kyoritsu KEW 2413R Leakage Clamp Meter

Kyoritsu Leakage Clamp Meters KEW 2413R

A 1000A True RMS AC clampmeter that can also detect leakage current is the Kyoritsu 2413R. It can clamp on all three or four-phase wires because of its extra-wide 68mm opening jaws, which allows it to monitor the entire leakage current.

The Kyoritsu 2413R includes five scales: 200mA, 2/20, 200A, and 1000A. It also contains a frequency selection switch that helps to reduce harmonic effects and improve measurement accuracy, especially at the lower end of the current scale.

Kyoritsu Leakage Clamp Meters KEW 2413R specifications:

• AC A (50/60HZ): 200mA/2/20/200/1000A
  ±2.5%rdg±5dgt (200mA/2/20A)
  ±3.0%rdg±5dgt (200A, 0 – 500A)
  ±5.5%rdg (501 – 1000A)
• AC A (WIDE): 200mA/2/20/200/1000A
  ±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A)
  ±2.0%rdg±5dgt (50/60Hz) (200A, 0 – 500A)
  ±5.0%rdg (50/60Hz) (501 – 1000A)
• CREST FACTOR: 3.0 or less
• CONDUCTOR SIZE: Ø68mm max.
• FREQUENCY RESPONSE: 40Hz – 1kHz
• OUTPUT: Waveform :
  AC200mV against the maximum value of each range (1000A range is 100mV)
  Recorder :
  DC200mV against the maximum value of each range (1000A range is 100mV)
• APPLICABLE STANDARDS: IEC 61010-1 CAT III 300V Pollution degree 2
  IEC 61010-2-032
• POWER SOURCE: 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
