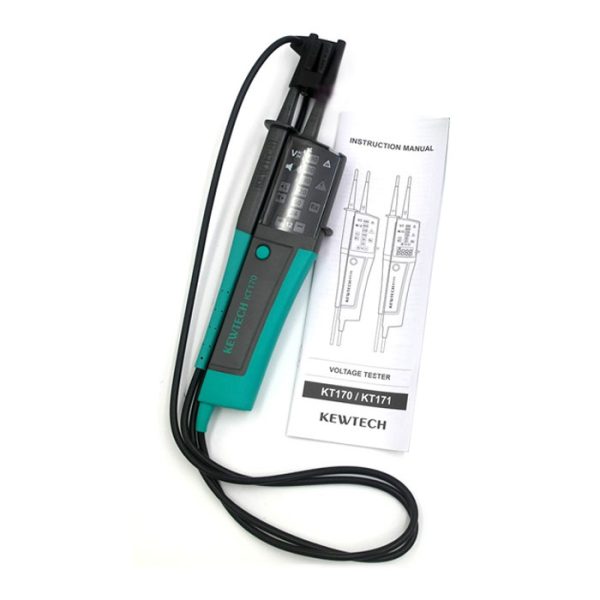

Kyoritsu KT 170 Voltage Tester

kyoritsu kt170 voltage testers

The Kyoritsu KT 170 is a portable voltage tester commonly used by electricians, maintenance personnel, and other professionals to check the presence and level of voltage in electrical circuits. This device is designed to detect AC and DC voltages up to 600 volts and is equipped with visual and audible alarms to alert the user to the presence of live voltage.

To buy kt170 and get more information about the price of it contact us through.MME is your one-stop destination for buying the best voltage detectors at competitive prices. With a wide range of options available, you can find the perfect voltage testers to meet your requirements.

protection cover 4mm tips replacement

A key component of the Kyoritsu KT170 is the 4mm tips, which are used to make contact with the circuit under test. Over time, these tips can become worn or damaged, reducing the accuracy of the readings taken by the device. In such cases, it may be necessary to replace the tips with new ones.

Kyoritsu Voltage Testers KT 170 key features:

• AC and DC voltage tests up to 690V with LED
• Comply with the latest standards IEC 61243 and IEC 61010
• Novel design Large and bright LEDs: Values are visible in the dark place Ergonomic design fits in the hand
• Two functions are available in one model “Measurement without battery” and “Self Test (all LED on)”
• Test leads withstand harsh environments at low temperature
• Penlight (white LED)
• Auto-power ON/OFF
• Audible indication
• Variable test tips, φ2mm or φ4mm
• Probe protection cover can store the attachment of caps
• IP65 (IEC 60529)

more information

other kyoritsu voltage testers are kt171, and KEW 5711, by using compare button on our site you will be allowed to compare products based on price, technical specifications, key features, and more. So that you can choose the best one for your application.

Voltage Testers KT 170 specifications:

• Voltage Range:12 – 690V AC/DC
• Nominal Voltage:12/24/50/120/230/400/690V AC (16 – 400Hz), DC (±)
• Tolerance: Light on at more than:
• (Threshold Voltage): 7±3V (12V LED) 18±3V (24V LED) 37.5±4V (50V LED) 75%±5% of nominal voltage
  (120/230/400/690V LED)
• Response Time:<0.6s at 100% of each nominal voltage
• Peak Current:ls<3.5mA (at 690V)
• Measurement Duty:30s ON (operation time) 240s OFF (recovery time)
• Applicable standards: IEC 61243-3, IEC 61010-1, IEC 61557-7
  CAT Ⅲ 690V / CAT Ⅳ 600V Pollution degree 2
