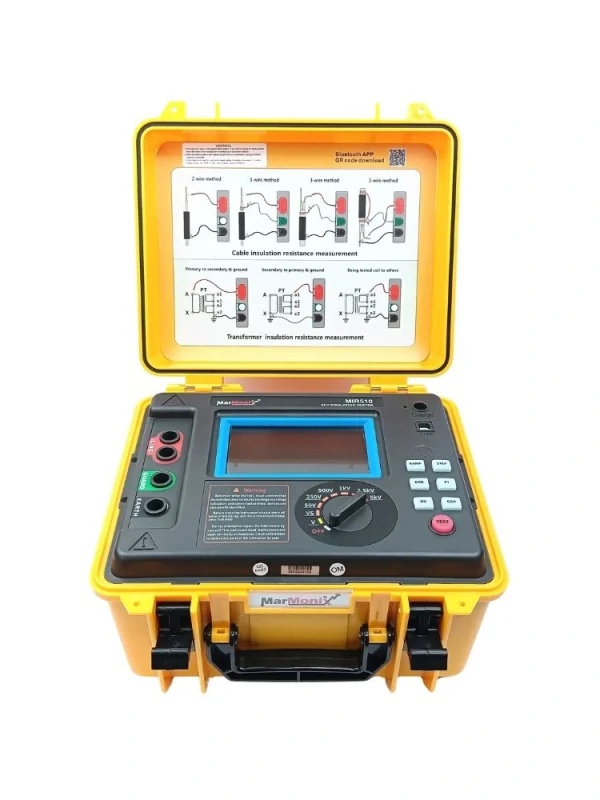

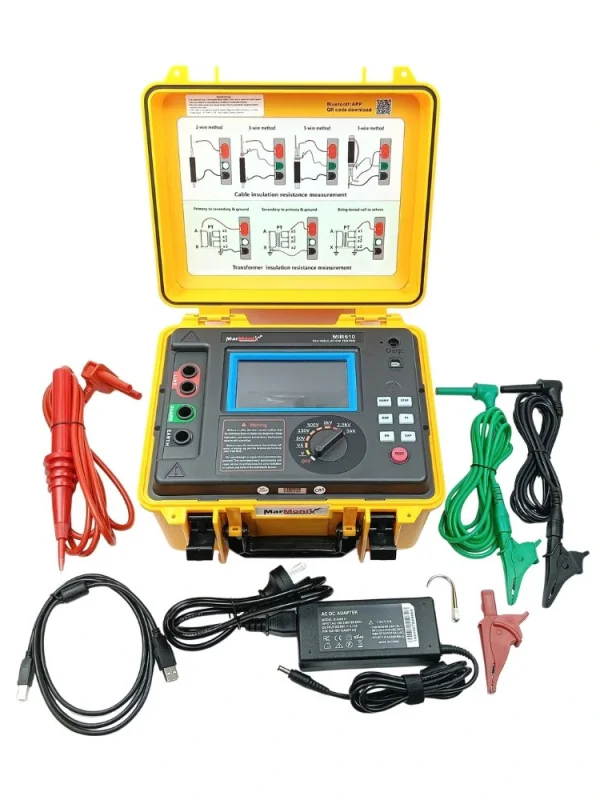

MarMonix MIR510 Insulation Resistance Tester

Short Description:

The MarMonix MIR510 Insulation Resistance Tester combines precision, safety, and user-friendly features, making it a valuable asset for professionals tasked with ensuring the reliability of electrical insulation. Its comprehensive capabilities and adaptable design cater to a wide range of testing scenarios, solidifying its place as a trusted tool in electrical testing.

  • Filtered Resistance Test (10S, 20S, 30S, 40S options)
  • Voltage Measurement (V)
  • Capacitance Measurement (uF)
Product purchase
SKU: 102089 Categories: ,

Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868

19 People watching this product now!
Terms of sending goods ›
  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

Buy MarMonix MIR510

The MarMonix MIR510 Insulation Resistance Tester is a high-performance instrument designed to evaluate the integrity of electrical insulation in various systems. Its advanced features and robust design make it an essential tool for electrical maintenance, testing, and quality assurance professionals.

Key Features

The MarMonix MIR510 offers a wide range of test voltages, allowing for flexibility in assessing insulation resistance across different applications. This adaptability ensures accurate measurements tailored to specific testing requirements.

Equipped with a large, easy-to-read display, the tester provides precise digital readings, enhancing user experience and reducing the likelihood of errors during data interpretation. The intuitive interface simplifies operation, making it accessible for seasoned professionals and those new to insulation testing.

Designed with safety in mind, the MarMonix MIR510 includes features such as automatic discharge of capacitive circuits and voltage detection to prevent accidental misuse. These safety measures protect the user and the equipment under test, ensuring reliable and secure operation.

Applications

The versatility of the MarMonix MIR510 makes it suitable for a variety of applications:

  • Electrical Maintenance: This is ideal for routine testing of motors, generators, and transformers to ensure insulation integrity and prevent unexpected failures.
  • Quality Assurance: Used in manufacturing settings to verify the insulation quality of electrical components before deployment.
  • Field Service: Portable design allows for on-site testing in various environments, providing flexibility for service technicians.

MarMonix MIR510 Specifications

The MarMonix MIR510 Insulation Resistance Tester measures resistance between 0.5 ΜΩ and 10 TΩ and operates with AC/DC voltage from 0V to 1000V.

Specification Details
Function Insulation resistance measurement (IR), polarization index measurement (PI), Dielectric Absorption Ratio Test (DAR), Ramp Test Mode (RAMP), Filtered Resistance Test (10S, 20S, 30S, 40S options), Voltage Measurement (V), Capacitance Measurement (uF), Leakage Current Measurement (nA)
Power Supply Rechargeable lithium battery pack 6.2Ah
Rated Voltage 250V / 500V / 1000V / 2500V / 5000V
Output Voltage Accuracy (5%-10%) ±10V
Insulation Resistance Range 0.5ΜΩ-10ΤΩ
Short Circuit Current >7mA MAX
Polarization Index Test (PI) Yes
Dielectric Absorption Ratio Test (DAR) Yes
Ramp Test Mode Test at 10% of the preset voltage until the preset voltage
Filtered Resistance Test Mode 10S, 20S, 30S, 40S
Voltage Measurement Range: AC/DC 0V-1000V; Accuracy: ±5%rdg ±3V
Capacitance Measurement Range: 10nF-25uF; Accuracy: ±10% ±10nF
Leakage Current Measurement Range: 0.01nA-9.00mA; Accuracy: ±5%rdg +0.5nA
Voltage Monitor Monitors voltage of the measured object, discharge status after test; forbids testing when voltage >36V
Test Time Automatic record test time, range: 0s-99995
Storage Function Automatically stores test data with date and time, a total of 1000 groups

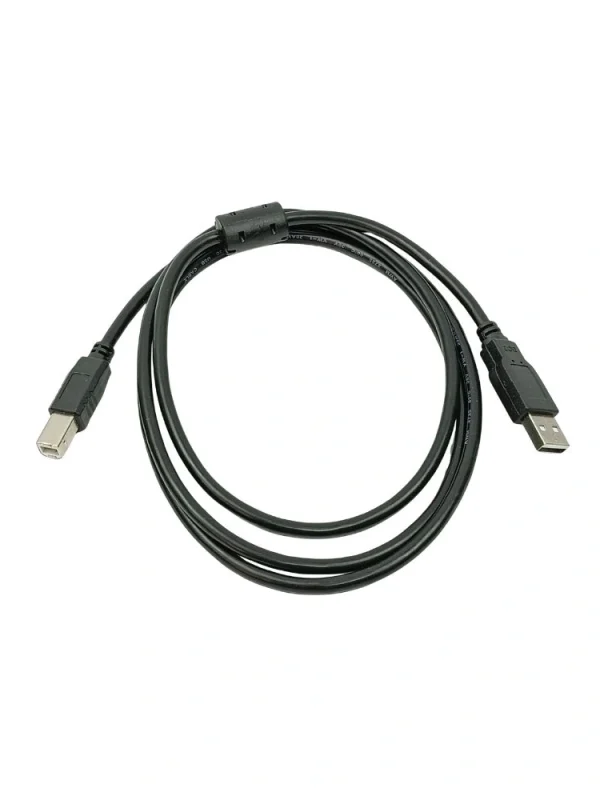

Upload Function Upload stored data to a computer via the USB communication cable
Battery Power Display Displays battery power alerts when voltage is low
Automatic Shutdown Shuts down automatically after 15 minutes of inactivity
Meter Dimension 280mm × 260mm × 160mm
Weight 4900g

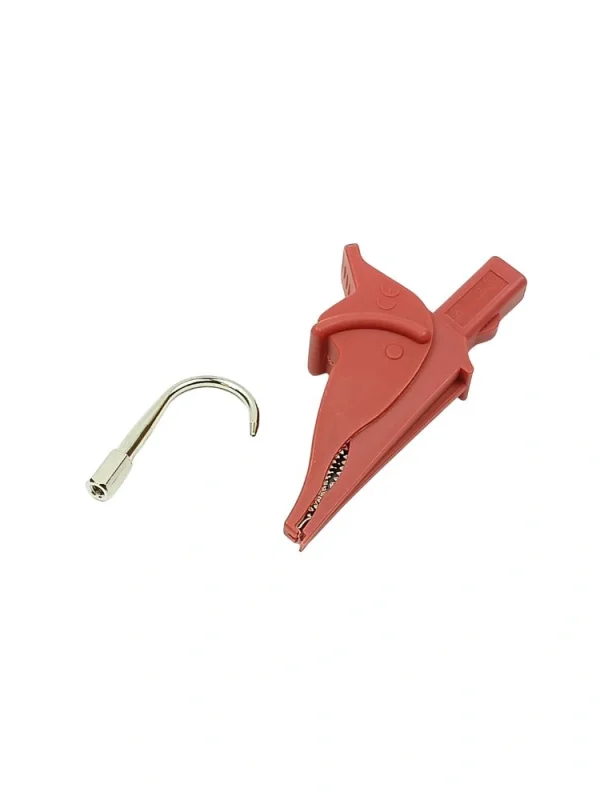

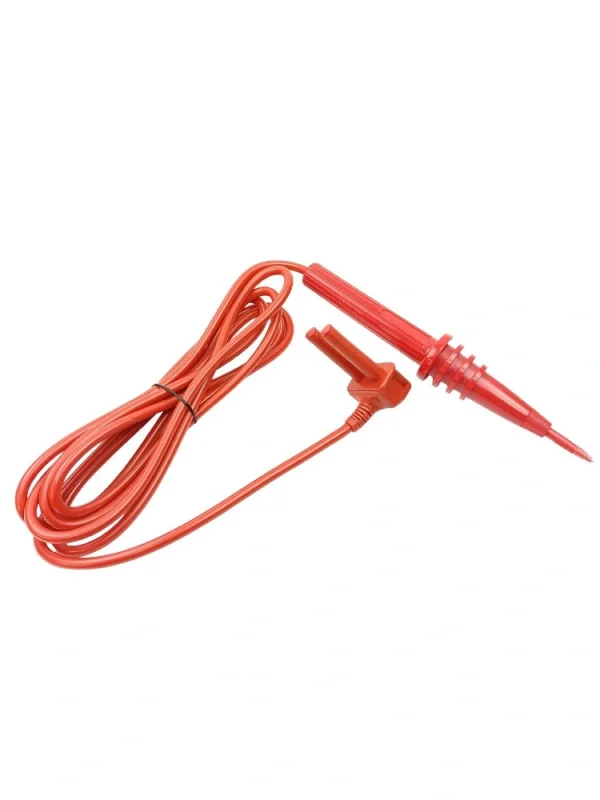

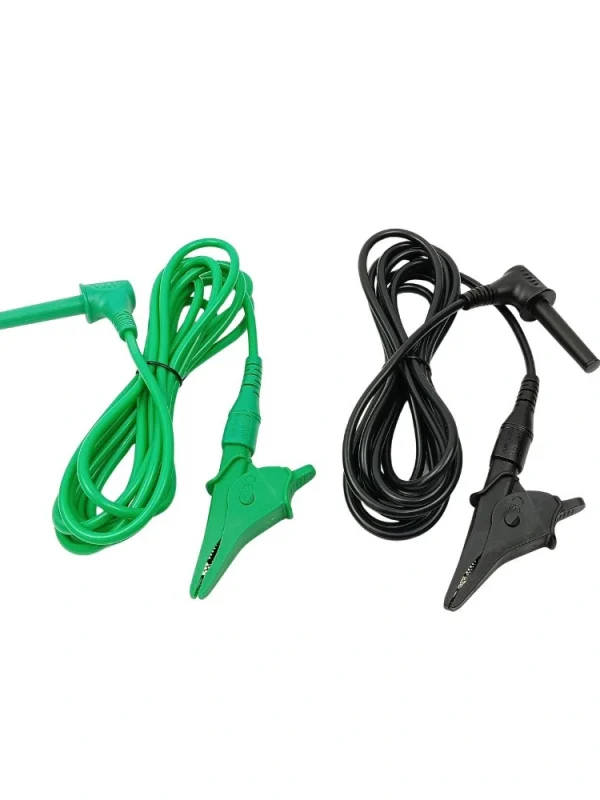

Test Wire Red high voltage test wire 1 pcs (with alligator clip 1 pcs and hook 1 pcs), green test wire 1 pcs, black test wire 1 pcs

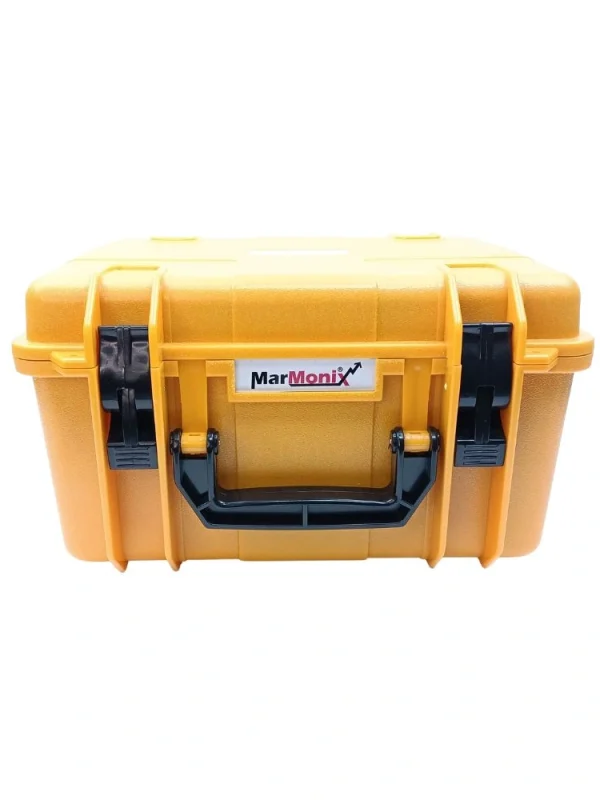

Protection Level Closed case: IP65, Open case: IP40
Withstand Voltage 3mA AC 50Hz
Working Temperature and Humidity -20°C to 50°C, 80%rh
Storage Temperature and Humidity -25°C to 65°C, 80%rh
Insulation Resistance 50ΜΩ (1000V) (between test circuit and shell)
Withstand Voltage AC 3kV 50Hz 1min (between test circuit and shell)
Suitable Safety Standard IEC61010-1, IEC61326-1

Buy the MarMonix MIR510 Insulation Resistance Tester, a tool that combines precision, safety, and user-friendly features. It is essential for professionals responsible for ensuring the reliability of electrical insulation. With its comprehensive capabilities and versatile design, it is suitable for a wide range of testing scenarios, making it a trusted instrument in electrical testing.

Function

Insulation resistance measurement (IR), polarization index measurement (PI), Dielectric Absorption Ratio Test (DAR), Ramp Test Mode (RAMP), Filtered Resistance Test (10S, 20S, 30S, 40S options), Voltage Measurement (V), Capacitance Measurement (uF), Leakage Current Measurement (nA)

Power Supply

Rechargeable lithium battery pack 6.2Ah

Rated Voltage

250V / 500V / 1000V / 2500V / 5000V

Insulation Resistance Range

0.5ΜΩ-10ΤΩ

Short Circuit Current

>7mA MAX

Filtered Resistance Test Mode

10S, 20S, 30S, 40S

Voltage Measurement

Range: AC/DC 0V-1000V; Accuracy: ±5%rdg ±3V

Capacitance Measurement

Range: 10nF-25uF; Accuracy: ±10% ±10nF

Leakage Current Measurement

Range: 0.01nA-9.00mA; Accuracy: ±5%rdg +0.5nA

Voltage Monitor

Monitors voltage of the measured object, discharge status after test; forbids testing when voltage >36V

Test Time

Automatic record test time, range: 0s-99995

Automatic Shutdown

Shuts down automatically after 15 minutes of inactivity

Dimension

280mm × 260mm × 160mm

Weight

4900g

Test Wire

Red high voltage test wire 1 pcs (with alligator clip 1 pcs and hook 1 pcs), green test wire 1 pcs, black test wire 1 pcs

Protection Level

Closed case: IP65, Open case: IP40

Working Temperature and Humidity

-20°C to 50°C, 80%rh

Insulation Resistance

50ΜΩ (1000V) (between test circuit and shell)

Withstand Voltage

AC 3kV 50Hz 1min (between test circuit and shell)

Suitable Safety Standard

IEC61010-1, IEC61326-1
