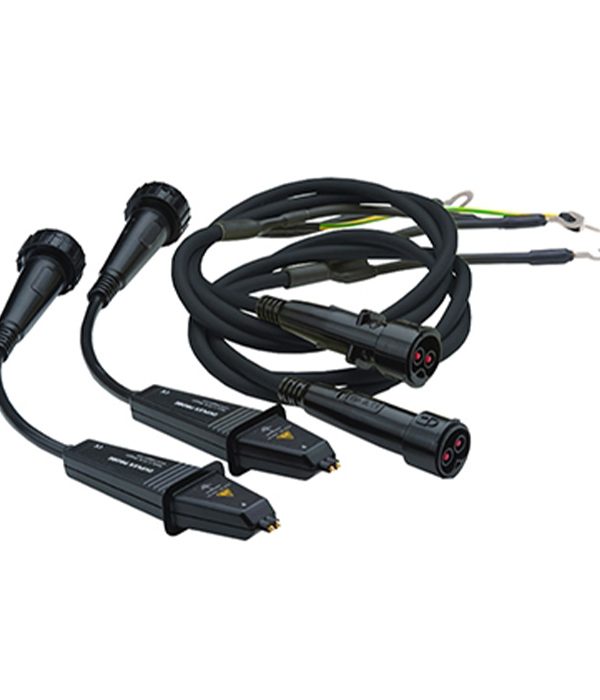

Megger 10 A DLRO test leads A SELECTION OF TEST LEADS

Megger 10 A DLRO test leads A SELECTION OF TEST LEADS

The Megger DLRO duplex connect four-terminal test lead system is designed to provide the most cost-effective and convenient way to provide the user with all of the test lead terminations and lead lengths required for the many different applications encountered in low resistance testing.

At the center of this unique test lead system is a bespoke connector allowing terminations such as kelvin clips or duplex test probes to be changed as required. There are two connector versions, one being fitted with indicator LEDs that operate with the DLRO10 range of instruments. The indicator LEDs provide enhanced safety and convenience with indications as follows:

DLRO10 and DLRO10HD
Warning of connection to hazardous live voltage.
When continuity is made
When a test is complete and measurement is on the instrument display.

DLRO10X adds
Indication of pass/fail to user-set test limits.

All of these important indications are therefore seen near the point of connection without needing to view the instrument display. There is even a 6 m extension lead to provide the ultimate flexibility.

Megger 10 A DLRO test leads A SELECTION OF TEST LEADS specifications:

• Lead resistances -C hook termination to the connector:
• 1.5 m lead (1 off): 20 m ohm.
• 3 m leads (1 off) 30 m ohm.
• 6 m leads (1 off) 40 m ohm.
