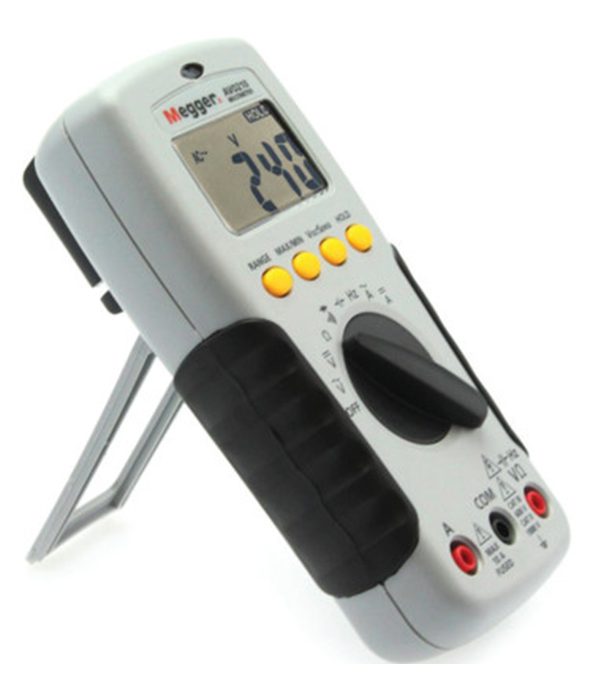

Megger AVO210 Electrician’s Multimeter

Megger AVO210 ELECTRICIAN’S MULTIMETER

Offering AC and DC voltage and current measurements alongside resistance, frequency, and capacitance ranges, the Megger AVO210 Digital Multimeter is a great general-purpose option for electricians, heating engineers, or alarm technicians.

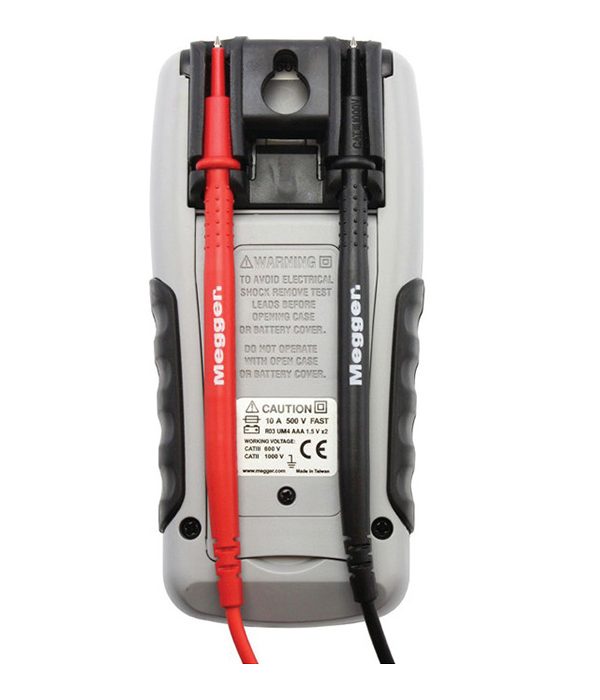

Coming complete with GS38-compliant shrouded test leads, the Megger AVO210 provides 1000 V DC / 750 V AC and 10 A AC / DC ranges, with results displayed in its 2000-count digital display.

With its user-friendly design and easy-to-use rotary dial, the Megger AVO210 offers a range of additional features – such as non-contact voltage detection, auto-ranging, and data hold functionality – making the instrument useful for a wide range of applications.

Megger AVO210 ELECTRICIAN’S MULTIMETER Key Features

• Versatility: The AVO210 can measure voltage, current, and resistance, along with capacitance, frequency, and temperature, making it a comprehensive tool for a wide range of electrical measurements.
• Accuracy: Known for its precise readings, the AVO210 ensures high measurement accuracy which is crucial for critical electrical system evaluations and troubleshooting.
• Ease of Use: The multimeter features a large, clear digital display with a backlight, making it easy to read under varying light conditions. Its user interface is intuitive, with clearly labeled functions and a simple, logical layout of controls.
• Safety: Safety is paramount in electrical testing, and the AVO210 is built with this in mind. It includes features such as a CAT IV 600V safety rating, which is suitable for complex and high-energy systems, providing the necessary protection against voltage spikes.
• Durability: The AVO210 is constructed with a rugged case that can withstand drops and rough handling typical in industrial environments. It also features weather-resistant qualities, ensuring reliable performance in diverse environmental conditions.
• Battery Life: Optimized for prolonged use, the AVO210 offers exceptional battery life, minimizing the need for frequent replacements and ensuring continuous operation during extended testing sessions.

Megger AVO210 Specifications:

• Display: 2000 counts
• Polarity: Automatic, positive implied, negative indicated
• Over-range Indication: “OL” or “-OL”
• Battery Indicator: “<” is displayed when the batteries voltage drops below the operating voltage
• Auto Power Down: Approx 10 minutes
• Operating Ambient: Non-condensing ≤10 ÆC, 11 ÆC ~ 30 ÆC (≤80% R.H) 31ÆC ~ 40 ÆC (≤75% R.H), 41 ÆC ~ 50 ÆC (≤45% R.H)
• Storage Temperature Range & Humidity: -20 ÆC to 60 ÆC, 0 to 80% R.H. when the battery removed from the meter
• Temperature Co-efficient: 0.15 x (Spec. Accy.) / ÆC, < 18 ÆC or > 28 ÆC
• Sample Rate: Samples 2 times per second nominal
• Maximum Altitude: 6561.7 ft (2000 m)
• Safety: Complies with EN61010-1, UL61010-1, IEC 61010-1, V/Ω CAT III 600 V, CATII 1000 V, A CAT III 500 V
• Pollution Degree: 2
• Power Supply: 1.5 V x 2 LR03 or AAA size
• Battery Life: Alkaline 250 hours
• Dimension: 74 mm x 156 mm x 44 mm
• Weight: 320 g
