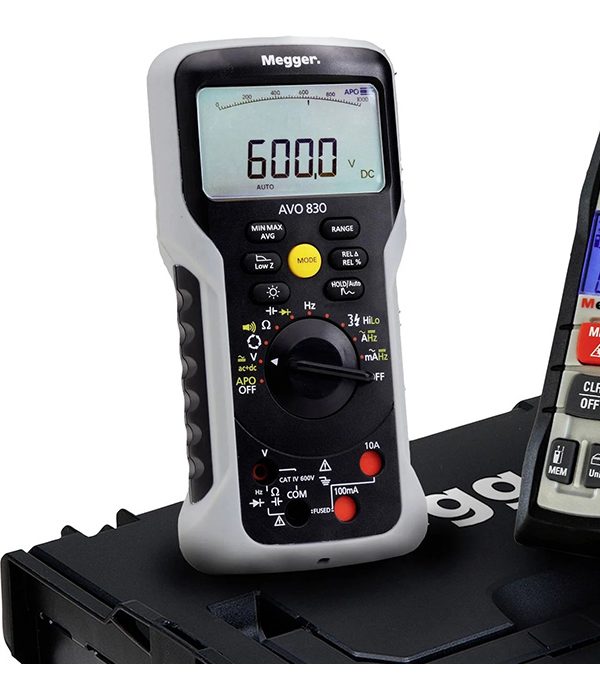

Megger AVO830-HIGH-END Multimeter

Megger AVO830-HIGH-END Multimeter

The Megger AVO830 Digital TRMS Multimeter has been designed for electricians, technicians, service personnel and engineers. As such it is able to perform an eclectic variety of electrical measurements and has been ruggedly designed to ensure that it is suitable for use in an array of challenging environments.

It can be used to perform true-RMS measurements for voltage and current. This instrument is able to measure AC and DC voltage to 600V. Please note that this tester has a sister product, the Megger AV0835 Digital TRMS Multimeter, which has a slightly larger measurement range and is able to measure AC/DC voltage to 1000V, as well as temperature.

Like its sister product, this instrument can measure currents between 0.1mA and 10A and is able to take resistance readings between 0.001Ω and 50MΩ. The Megger AVO830 Digital TRMS Multimeter is also capable of performing conductance and diode tests and can measure capacitance and frequency, as well as perform phase sequence measurements as part of a three-phase circuit and motor testing.

This tester has a basic accuracy of 0.1% and can be adjusted to suit the application using manual and automatic range control.

Measurement results are indicated on the Megger AVO830 Digital TRMS Multimeter’s dual digital display with an analog arc for indicating voltage, which is displayed as both an analog and digital quantity. The Megger AVO830 Digital TRMS Multimeter’s display features a 10 000 count resolution and 4.5 digits.

Related Products

If you are looking for similar products visit PCE-ITM 20.MME-AE is a renowned importer and distributor of multimeters in Dubai and various other countries, providing the most competitive prices in the market. For purchasing a Multimeter and obtaining detailed pricing information, we encourage you to get in touch with our knowledgeable experts at MME-AE.

Megger AVO830-HIGH-END Multimeter Specifications

• Designed for electricians, technicians, service personnel, and engineers
• Capable of performing an eclectic variety of electrical measurements.
• Ruggedly designed to ensure that it is suitable for use in challenging environments
• True-RMS measurements for voltage and current.
• Measure AC/DC voltage to 600V
• Measure current between 0.1mA and 10A
• Measure resistance between 0.001Ω and 50MΩ.
• Perform conductance and diode tests
• Measure capacitance.
• Measure frequency
• Perform phase sequence measurements for three-phase circuit and motor testing
• Basic accuracy of 0.1%.
• Manual and automatic range control
• Dual digital display.
• Analogue arc for indicating voltage
• Voltage is displayed as a digital and analogue quantity.
• The display includes a 10,000-count resolution and 4.5 digits
• MIN/MAX.
• AVG
• Hold (manual)
• Auto Hold.
• Smoothing of the Measured Quantity
• 800 Hz low-pass filter.
• Phase sequence detection.
• Input impedance switching
• Non-contact live circuit detection.
• IP54
• Weatherproof, compact casing.
• The safety rating of CAT IV 600V
• Compliant with IEC 61010.
• Offers the highest protection in the industry
• Suitable for use on high-energy electrical installations, normal mains supplies and electrical equipment.
• A multifunctional, adaptable, practical instrument.
• Ideal for conducting an extensive array of tests on an eclectic variety of electrical equipment.
