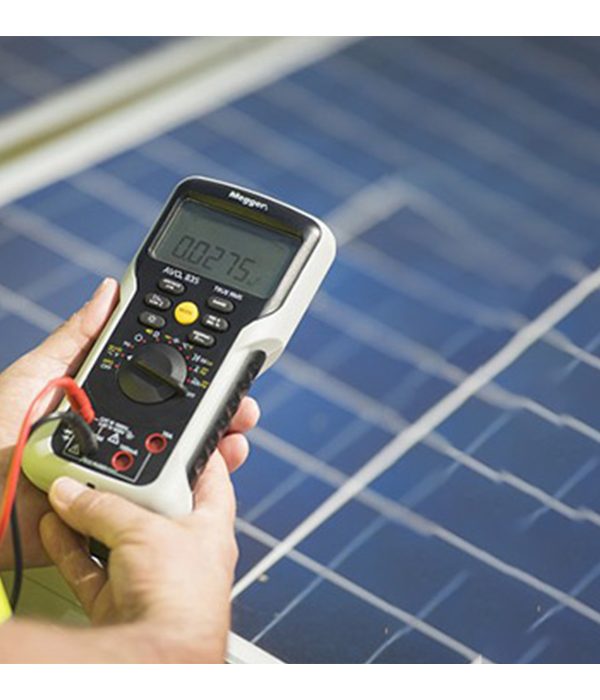

Megger AVO835 Multimeter
Short Description:
The Megger AVO835-HIGH-END MULTIMETER is capable of measuring a variety of electrical entities as well as temperature (using the supplied type-K thermocouple).
Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868
- In-stock items are delivered within 2 business days.
- We are not Supporting COD Payments Terms Outside UAE
Megger AVO835-High-End MultimeterÂ
The Megger AVO835 Digital TRMS Multimeter stands as a high-performance tool within the AVO800 series, crafted for professional electricians, technicians, service personnel, and engineers. This multimeter is an essential device for those involved in complex and high-energy electrical installations, including typical mains supplies and various electrical equipment.
Versatile Measurement Capabilities: The AVO835 is not just a standard multimeter; it includes a type-K thermocouple, enhancing its utility by enabling precise temperature measurements. This feature broadens the scope of its applications, making it suitable for tasks that require both electrical and temperature diagnostics. Alongside temperature, the AVO835 can measure up to 1000 V in AC, DC, and AC+DC voltage ranges, and it supports current measurements from 0.1 mA to 10 A with true RMS accuracy. This comprehensive range of measurements ensures that professionals can rely on one tool for multiple diagnostics, increasing efficiency and reliability in the field.
Megger AVO835-High-End Multimeter Specifications:
- Measure a variety of electrical entities and temperature
- Supplied with a type-K thermocouple.
- Ideal for electricians, technicians, service personnel, and engineers
- Can be used to test high-energy electrical installations, normal mains supplies, and electrical equipment
- Compliant with CAT III 1000V / CAT IV 600V safety standards.
- Compliant with IEC 61010
- Surge protected.
- Phase sequence detection
- Input impedance switching.
- Non-contact live circuit detection
- True-RMS AC/DC voltage to 1000V.
- True-RMS AC/DC current between 0.1mA and 10A
- Resistance from 0.001Ω to 50MΩ.
- Conductance tests
- Diode tests.
- Measure capacitance to 20mF
- Measure frequency.
- Perform phase sequence measurements for three-phase circuit and motor testing
- Temperature between -20°C and 300°C
- Basic accuracy of 0.1%.
- 800Hz low-pass filter
- Manual and automatic range control
- Minimum and Maximum.
- Average.
- Hold (manual)
- Auto Hold
- Smoothing of the Measured Quantity.
- Dual digital display
- Analog arc.
- Voltage measurements are displayed as an analog and digital value
- 10 000 count resolution.
- 4.5 digits
- Compact, weatherproof casing.
- IP54
- Ideal for performing tests on a vast variety of electrical systems and equipment.
DC voltage range/resolution/Accuracy | |
---|---|
AC current range/resolution/Accuracy | |
DC current range/resolution/Accuracy |
10 A/0.01 mA/± (1.0%rdg+3dig) |
AC Voltage Input impedance |
10 A/0.01 mA/± (1.5%rdg+3dig) |
Conductance |
60 nS/0.01 nS/± (1.5%rdg+10dig) |
Resistance Range/resolution/Accuracy |
50 MΩ/0.01 Ω/± (1.0%rdg+2dig) |
Capacitance Range/resolution/Accuracy |
20 mF/1 nF /±(2%rdg+2dig) |
Temperature range/resolution/ Accuracy |
-20 °C or 300 °C/0.1 °C /±(1.0%rdg+20dig) |
MIN - MAX |
√ |
Average |
√ |
True RMS |
√ |
Auto Hold |
√ |
Specifications
Feature | Specification |
---|---|
Measurement Type | TRMS voltage and current measurement |
Display | Dual digital readout, Classic Megger analogue arc |
Accuracy | 0.1% basic accuracy |
Resolution | 10,000 count resolution 4 ½ digits |
Phase Sequence Measurement | For 3 phase circuit and motor testing |
Input Impedance | Switchable between 10 MΩ and 10 kΩ |
Live Circuit Detection | Non-contact with Hi/low sensitivity |
Resistance Range | From 0.01 Ω to 50 MΩ, conductance and Diode measurement |
Range Control | Auto and manual |
Measurement Capture | Minimum, maximum and average |
Measurement Smoothing | For fast changing quantity capture |
Modes | Hold and Auto Hold |
Low Pass Filter | 800 Hz |
Additional Measurements | Capacitance, frequency, temperature* |
Environmental Protection | IP54 |
