Megger DCM330-Fork Multimeter

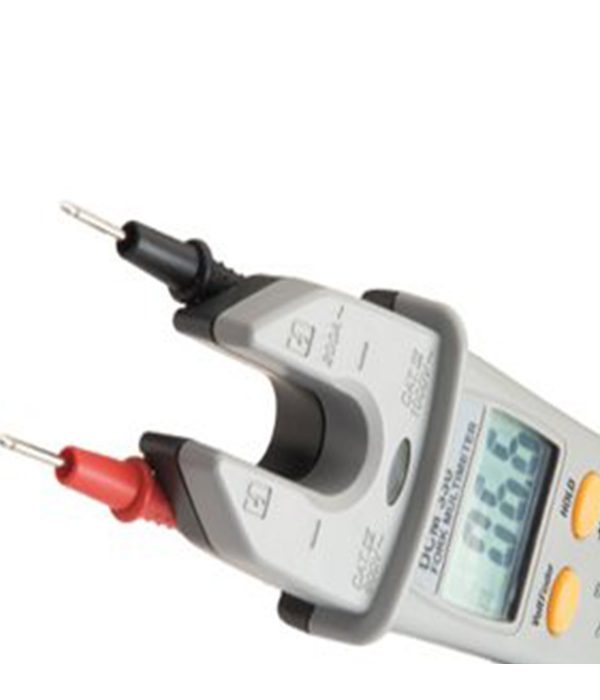

The Megger DCM330-FORK MULTIMETER is a fork-style clamp meter; it does not include fully-closing clamping jaws. Instead, hold the sensors around the conductor you wish to measure and this tester will evaluate AC current up to 200A.

(1 customer review)
SKU: 3670

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

17 People watching this product now!

Megger DCM330 Fork Multimeter

The Megger DCM330 Fork Multimeter is an indispensable tool for professionals in electrical maintenance and troubleshooting, combining the functionality of both a traditional multimeter and a clamp meter into one compact, efficient device. This instrument is specially designed for straightforward, one-handed operation, making it an excellent choice for both fieldwork and laboratory use.

Versatile Measurement Capabilities: The DCM330 excels in versatility with its ability to measure AC currents up to 200 A using its open-jaw current measurement feature. Additionally, it supports auto-ranging AC and DC voltage measurements from 0.1 V to 1000 V, and resistance measurements from 0.1 Ω to 20.00 MΩ, ensuring comprehensive coverage for a wide array of electrical testing needs.

Enhanced Safety Features: Rated for CAT III 1000V and CAT IV 600V, the DCM330 offers robust protection for users, making it safe for use in a variety of environments from high-voltage industrial applications to residential low-voltage installations. This high safety rating assures that it is equipped to handle significant transient voltages and reduces the risk of surges and spikes while performing measurements.

At MMElectronics, we strive to provide exceptional customer service. Our expert team is ready to assist you in selecting the right Multimeter for your application.

Megger DCM330 Fork Multimeter Specifications

  • Open-style jaws – don’t require clamping around the conductor
  • Suitable for use with conductors up to 16mm in diameter
  • Compact, pocket-sized design
  • Measures AC current up to 200A
  • 0.1 to 1000V auto-ranging AC/DC voltage measurements
  • Measure resistance from 0.1Ω to 20MΩ
  • Continuity buzzer and diode checks
  • Non-contact AC voltage detector
  • CAT III 1000V and CAT IV 600V compliance
  • Auto power off when left idle
Related Product
5
1 review
1
0
0
0
0

1 review for Megger DCM330-Fork Multimeter

Clear filters
  1. Natalie

    This meter does everything I need it to

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

Data Sheet

Data Sheet

Specifications

Feature Specification
Jaw Style Open-style jaws, no need for clamping around the conductor
Conductor Size Suitable for use with conductors up to 16mm in diameter
Design Compact, pocket-sized design
AC Current Measurement Measures AC current up to 200A
Voltage Measurement 0.1 to 1000V auto-ranging AC/DC voltage measurements
Resistance Measurement Measure resistance from 0.1Ω to 20MΩ
Continuity and Diode Continuity buzzer and diode checks
Voltage Detection Non-contact AC voltage detector
Safety Compliance CAT III 1000V and CAT IV 600V compliance
Auto Power Off Auto power off when left idle
