Megger DLRO10HD- DUAL POWER 10A Low Resistance Ohmmeter
2 Comments
Experience high accuracy with the Megger DLRO10HD, perfect for precise low-resistance measurements in electrical applications.
Terms of sending goods ›
Order Via phone number
Order Via Online Form
Estimated Delivery: 2–4 business weeks
Description

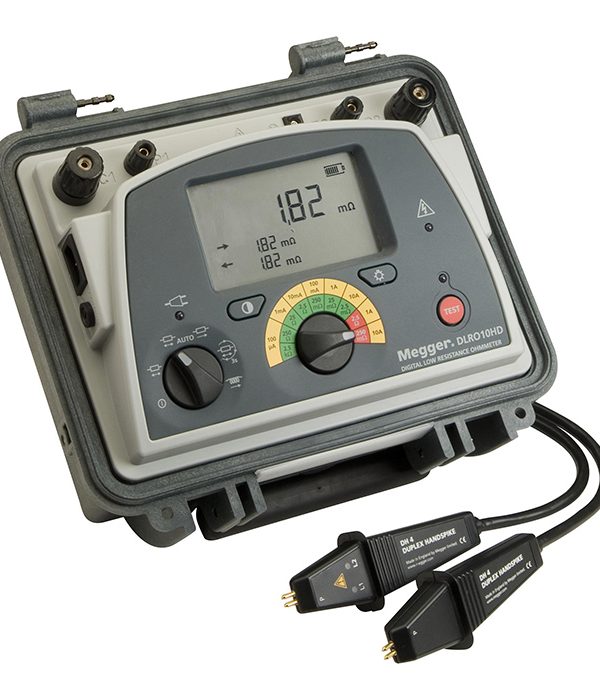

Megger DLRO10HD- DUAL POWER 10A LOW RESISTANCE OHMMETER
Equally at home in the laboratory, the workshop or in the field, on the bench or on the ground, The heavy duty Megger Ducter™ DLRO10HD low resistance ohmmeter combines rugged construction with accuracy and ease of use. It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat.
Megger DLRO10HD- DUAL POWER 10A LOW RESISTANCE OHMMETER Specifications:
- Nominal Current:Up to 10A
- No. of higher power ranges:2
- Display:LCD Backlit
- Weight:6.7 kg
Additional information
| micro__ohmmeter__type (microomhmeter) |
4-wire |
|---|---|
| micro__resistance__range (microhometer) |
0-2 |
Datasheet
Datasheet
Specifications
Specifications
| General Specifications | |
|---|---|
| Temperature Coefficient | < 0.01% per °C, from 5 °C to 40 °C |
| Maximum Altitude | 2000 m (6562 ft) to full safety specifications |
| Display Size/Type | Main 5-digit + 2 × 5-digit secondary displays |
| Battery Type | 6 V, 7 Ah sealed lead acid |
| Voltage Input Range | 100 – 240 V, 50 / 60 Hz, 90 VA |
| Charge Time | 8 hours |
| Backlight | LED backlight |
| Battery Life | >1000 Auto (3 sec) tests |
| Auto Power Down | 300 seconds |
| Mode Selection | Left rotary switch |
| Range Selection | Right rotary switch |
| Memory Features (HDX only) | Right rotary switch |
| Weight | 6.7 kg |
| Case Dimensions | L 315 mm × W 285 mm × H 181 mm |
| Pouch for Test Leads | Yes (lid mounted) |
| Test Leads | Choose from DH4C lead set or KC1 Kelvin Clip lead set |
| IP Rating | IP65 (case closed), IP54 (battery operation) |
| Record Storage (HDX only) | 200 test records |
| Safety Rating | In accordance with IEC61010-1, CAT III 300 V when used with optional terminal cover (order code: 1002-390) |
| Operating Temperature and Humidity | −10 °C to +50 °C (14 °F to 122 °F), <90% RH |
| Reference Conditions | 20 °C ± 3 °C |
| Storage Temperature and Humidity | −25 °C to +60 °C, <90% RH |
| EMC | In accordance with IEC61326-1 (Heavy industrial) |
| Noise Rejection | Less than 1% ±20 digits additional error with 100 mV peak 50/60 Hz on potential leads. Warning displayed if hum/noise exceeds this level. |
| Maximum Lead Resistance | 100 mΩ total for 10 A operation, irrespective of battery condition |
Reviews (2)
2 reviews for Megger DLRO10HD- DUAL POWER 10A Low Resistance Ohmmeter
Clear filtersYou must be logged in to post a review.
Bench Multimeters
jasem –
phenomenal
mohammadjasem –
The Megger DLRO10HD is a powerful and reliable tool for accurate low resistance measurements, perfect for any professional setting.
