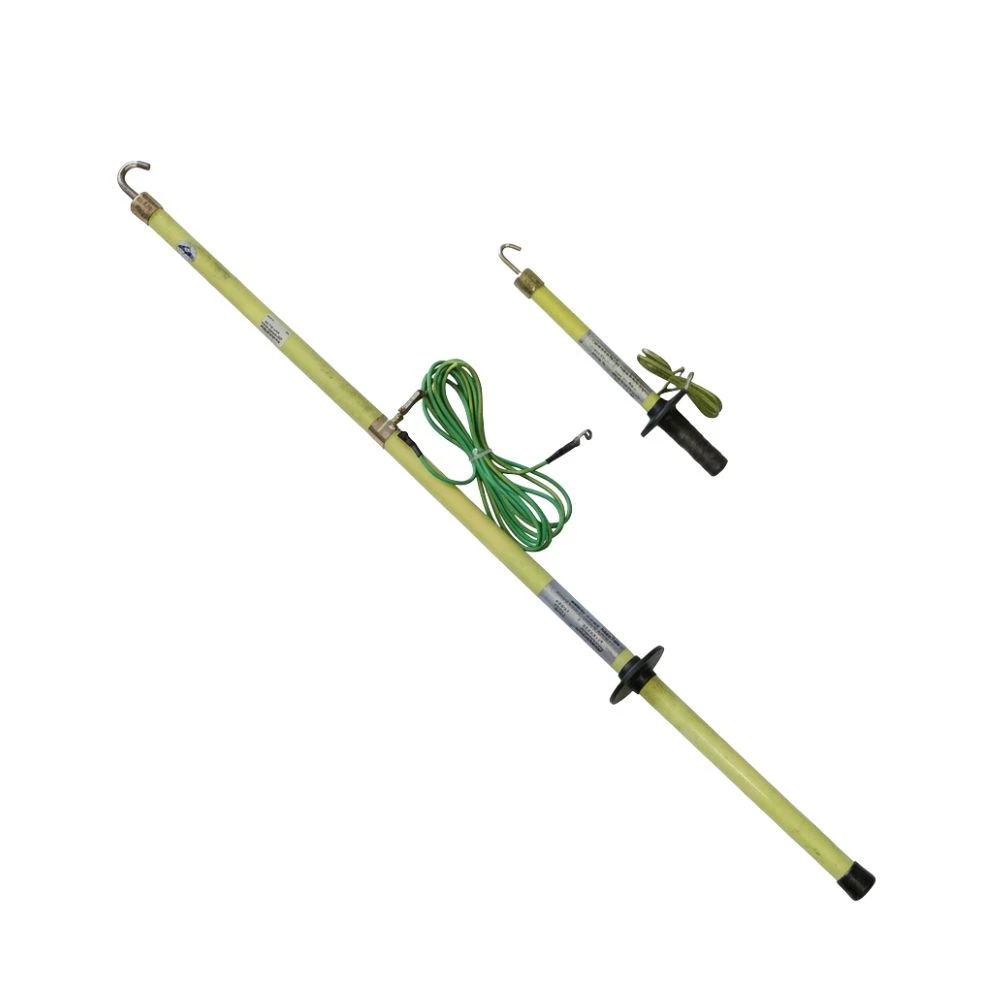

Megger EST 50 High voltage discharge rod
(No Reviews)
- Safe Cable Discharging: Rated for voltage levels up to 50 kV, ideal for industrial medium-voltage networks.
- Controlled Energy Dissipation: Built-in 100 kΩ internal damping resistor prevents sudden current surges and hardware damage.
- Insulated Fiber-Glass Body: High dielectric strength GFK material with integrated hand shield protection.
- Substation Essential: Designed with a 136 cm reach to maintain strict clearance distances during maintenance.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Megger EST 50 Discharge Rod: Secure Earthing for 50 kV Systems
Safety in electrical substation testing starts with reliable charge elimination. The Megger EST 50 grounding and discharge rod is engineered to discharge capacitive energy safely before test connections are handled. Featuring a 100 kΩ damping resistor, it slowly releases stored cable charges up to 6 μF, neutralizing the dangerous post-charging effect without sparks or structural stress to the conductor.
Key Operational Safety Features
- Damped Discharge Technology: Avoids dangerous high-current arcs by limiting the discharge rate mathematically (t = R x C).
- GFK Insulation Tube: High-grade fiberglass-reinforced plastic ensures high insulation safety under humid or warm climates.
- Ergonomic Guard Ring: Clear handle marking ensures technicians keep their hands well behind the high-voltage threshold.
Specifications
Specifications
| Model Designation | EST 50 (Megger) |
| Max. Discharge Voltage | 50,000 Volts (50 kV) |
| Resistor Value | 100 Kilohms (100 kΩ) |
| Max. Cable Capacity | 6 microfarads (μF) |
| Physical Length | 1.36 Meters (Approx. 53 inches) |
| Total Net Weight | 1.90 kg |
