    Ensure safety with the Megger High Voltage discharge rod-EST for efficient high voltage equipment discharge.

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 3751 Categories: , ,
    Brand:Megger

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

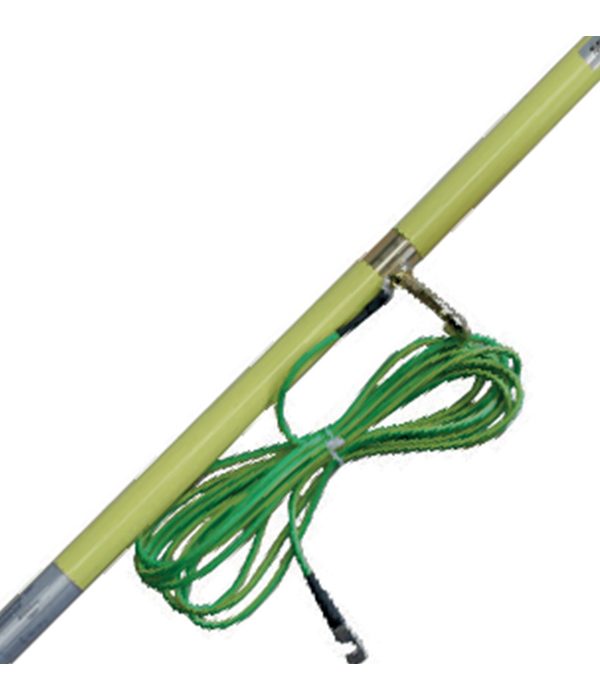

    Megger High Voltage discharge rod-EST

    The EST high voltage discharge rod is ideal for damped discharge and direct, visible earthing/grounding of high voltage cables and test units, and it is ideal for damped discharge and direct, visible earthing/grounding. It has a live conductor at the tip, and the rod has a discharge resistor that controls the discharge current and assures a damped discharge. The rod can eliminate the post-charging effect by instantaneously eliminating the cable charge.

    The discharge rods comprise GFK (fiberglass reinforced plastic), include a handle, and are conservatively rated for physical contact with high voltage. You can also select from six discharge rod types with varying voltages, resistances, and lengths.

    Megger High Voltage discharge rod-EST specifications:

    • Complies with EN 50191, EN 61230, and EN 61219
    • Versions for 35 kV to 150 kV are available
    • Discharge resistors ensure damped discharge
    • Choice of 6 versions of discharge rod for different voltages
    catalog

    catalog

    Data Sheet

    Specifications

    Specifications

    Model Voltage Length Weight Max. Capacity Resistance
    EST 0 – 152 cm / 59.84 in. 1.40 kg / 3.09 lb. – –
    EST 35 35 kV 50 cm / 19.69 in. 0.95 kg / 2.09 lb. 6 μF 10 kΩ
    EST 50 50 kV 136 cm / 53.54 in. 1.90 kg / 4.19 lb. 6 μF 100 kΩ
    EST 75 75 kV 156 cm / 61.42 in. 2.20 kg / 4.85 lb. 3 μF 150 kΩ
    EST 100 100 kV 176 cm / 29.92 in. 2.50 kg / 5.51 lb. 3 μF 200 kΩ
    EST 150 150 kV 208 cm / 81.89 in. 2.85 kg / 6.28 lb. 2 μF 300 kΩ
