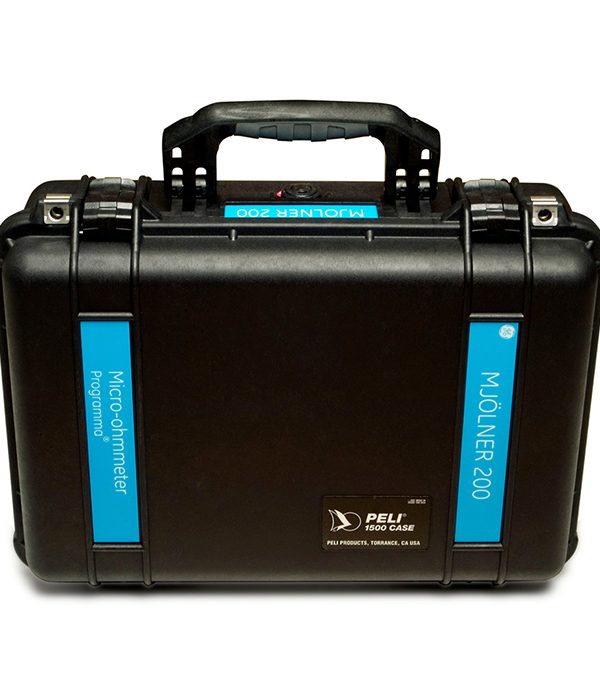

Megger Mjölner200- 200 A Micro-ohmmeter With Dualground Safety

Megger MJÖLNER200- 200 A MICRO-OHMMETER WITH DUALGROUND SAFETY key features:

  • Specifically designed for measuring contact resistances in circuit breakers, disconnecting switches, bus-bar joints, and other such devices
  • Safer testing using the patented DualGround™ technology to test circuit breakers with both sides grounded
  • Fully automatic testing- microprocessor controlled
  • Wide measuring range and test currents
  • High-Power and lightweight
(1 customer review)
SKU: 3601

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 37,000 (excl.VAT)

17 People watching this product now!

Megger Mjölner200- 200 A Micro-ohmmeter With Dualground Safety

The MJÖLNER Series is designed to measure the resistance of circuit breaker contacts, bus-bar joints, contact elements in bus-bars and other high-current links. This product has been designed with safety, ease of use and versatility in mind. It can be used anywhere to measure a low resistance value with high accuracy. It conducts true DC ripple free current testing of bus bars, circuit breakers, fuses, etc.

Megger MJÖLNER200 Key Features:

  • DualGround™ Safety: The DualGround™ technology ensures that the circuit is grounded on both sides, reducing the risk of electrical accidents. This feature is particularly beneficial in environments where safety is paramount, making the MJÖLNER200 ideal for utility substation and industrial settings.
  • High Current Output: With an ability to generate up to 200 A, this micro-ohmmeter can effectively measure low resistance values with high accuracy. The high current output helps in obtaining precise readings even in low-resistance applications.
  • Portable Design: Despite its robust functionality, the MJÖLNER200 is designed for portability. Its compact and rugged design makes it suitable for field tests, and it can be operated in challenging environmental conditions.
  • User-Friendly Interface: The device features a straightforward, easy-to-use interface that simplifies the testing process. This allows both experienced technicians and new users to operate the device with minimal training.
  • Versatile Testing Capabilities: The MJÖLNER200 is not only limited to breaker testing but can be used for a variety of applications including testing busbar joints, welding joints, and other components where low resistance measurement is crucial.
  • Battery Operated: For added convenience, the unit can be operated using batteries, enhancing its usability in field conditions where power supply may be limited.
  • Substation Maintenance: Ensures all connections and joints have proper integrity without the risk of high resistance which can lead to failures.
  • Industrial Testing: Ideal for checking grounding systems and bolted connections in industrial plants.
    Railway Maintenance: Can be used to test rail bonds and other connections that require maintenance and monitoring.

Megger MJÖLNER200- 200 A MICRO-OHMMETER WITH DUALGROUND SAFETY specifications:

  • Specifications are valid at nominal input voltage. Specifications are subject to change without notice.Environment Application field : The instrument is intended for use in high-voltage substations and industrial environments.
  • Temperature Operating : -20°C to +50°C (-4°F to +122°F)
  • Storage & transport : -40°C to +70°C (-40°F to +158°F)
  • Humidity : 5% – 95% RH, non-condensing
  • CE-marking
  • LVD : 2014/35/EU
  • EMC : 2014/30/EU
  • RoHS : 2011/ 6 5 / E U
  • General
  • Mains voltage : 100 – 120 / 200 – 240 AC, 50 / 60 Hz
  • Input current (max)13 A at 100 V, 6 A at 230 V (3 sec)
  • Protection:Fuses (200 mAT and 400 mAT) Thermal fuse, Software Shut off temperature: 70ºC (158ºF) internal temperature
  • Dimensions : 410 x 330 x 175 mm (16.1” x 13” x 6.9”)
  • Weight : 7.3 kg (16.1 lbs) 14.5 kg (32 lbs) incl. cables and soft case
  • Display : LCD
  • Available languages : English, Deutsch, Français, Español, Svensk Printer Thermal
  • printer Thermal paper roll : Width 57 mm, diameter 32 mm
5
1 review
1
0
0
0
0

1 review for Megger Mjölner200- 200 A Micro-ohmmeter With Dualground Safety

Clear filters
  1. Nicole

    Just what we needed

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

Data Sheet

Data Sheet

specifications

Category Specification Details
Environment Application Field The instrument is intended for use in high-voltage substations and industrial environments.
Operating Temperature -20°C to +50°C (-4°F to +122°F)
Storage & Transport Temperature -40°C to +70°C (-40°F to +158°F)
Humidity 5% – 95% RH, non-condensing
CE-marking LVD 2014/35/EU
EMC 2014/30/EU
RoHS 2011/65/EU
General Mains Voltage 100 – 120 / 200 – 240 AC, 50 / 60 Hz
Input Current (max) 13 A at 100 V, 6 A at 230 V (3 sec)
Protection Fuses (200 mAT and 400 mAT), Thermal fuse, Software Shut off temperature: 70ºC (158ºF) internal temperature
Dimensions Instrument 410 x 330 x 175 mm (16.1” x 13” x 6.9”)
Weight 7.3 kg (16.1 lbs), 14.5 kg (32 lbs) incl. cables and soft case
Display Language Options English, Deutsch, Français, Español, Svensk
Printer Type & Paper Specifications Thermal printer, Thermal paper roll: Width 57 mm, diameter 32 mm
