Megger DLRO200 Micro-ohmeter

Megger DLRO200 MICRO-OHMETER key features:

  • Small and weighs less than 15kg
  • Test currents from 10 A to 200 A d.c.
  • 0.1 µΩ best resolution
  • On board memory for up to 300 test results and notes
  • RS232 port to download stored results or for real time output to a printer
  • Supplied complete with 5m test leads and download software
(1 customer review)
SKU: 3819

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

17 People watching this product now!

Megger DLRO200 Micro-ohmeter

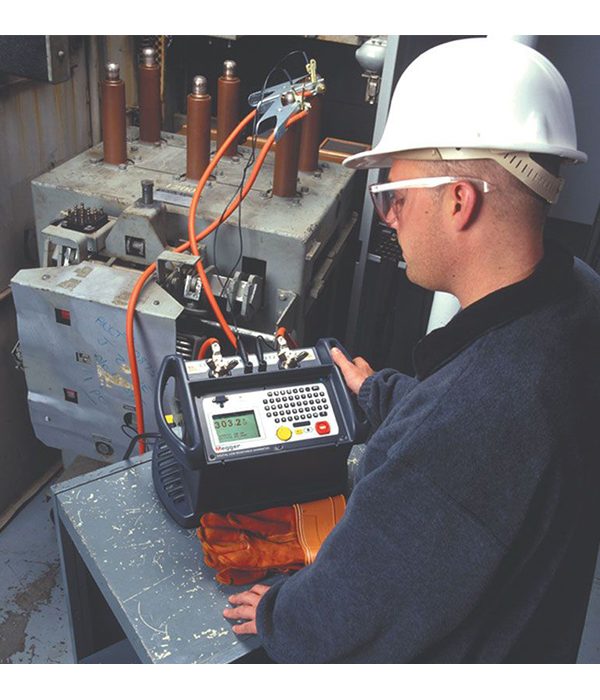

The Megger DLRO200 Micro-Ohmmeter is a state-of-the-art device designed to deliver high-accuracy resistance measurements in electrical systems. Weighing less than 15 kg, this compact instrument is perfectly suited for use in various environments, including field applications, production floors, and workshops. Its portability is a key feature, facilitating easy transportation and use in different settings without compromising performance.

Capable of generating test currents ranging from 10 A to 200 A DC, the DLRO200 is a versatile tool that adjusts to the specific requirements of each test, subject to load resistance and supply voltage. This adaptability makes it ideal for a wide array of applications, particularly in testing connections such as circuit breaker contacts, switch contacts, and busbar joints where high current is necessary.

One of the standout technological features of the DLRO200 is its four-terminal measurement technique. This advanced method significantly enhances measurement accuracy by eliminating the potential error caused by the resistance of the test leads. The DLRO200 achieves a remarkable resolution of 0.1 µΩ, ensuring precise and reliable readings across a range from 0.1 µΩ to 1 Ω at high currents.

Megger DLRO200 Micro-ohmeter specifications:

  • Power Supply for DLRO200 for full output (unsmoothed DC) 100 to 265 V 50/60 Hz with a load less than 19 mΩ (supply >207 V rms), or 11 mΩ (115 V rms) including current leads.
  • Test Modes Manual, Auto, Continuous.
  • Range 0.1 μΩ to 999.9 mΩ (subject to supply voltage and leads used).
  • Data storage and communication:RS-232 port
  • Max output current (DC):200 A
  • Power source:Mains
  • Safety features:IEC61010-1
5
1 review
1
0
0
0
0

1 review for Megger DLRO200 Micro-ohmeter

Clear filters
  1. Catherine

    Perfect thanks

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

catalog

Data Sheet

specifications

Technical Specifications of the Megger DLRO200 Micro-Ohmmeter
Specification Category Details
Power Supply for Full Output 100 to 265 V 50/60 Hz; Load < 19 mΩ (supply > 207 V rms) or 11 mΩ (115 V rms) including current leads
Test Modes Manual, Auto, Continuous
Measurement Range 0.1 μΩ to 999.9 mΩ (subject to supply voltage and leads used)
Data Storage and Communication RS-232 port
Max Output Current (DC) 200 A
Power Source Mains
Safety Features IEC61010-1
