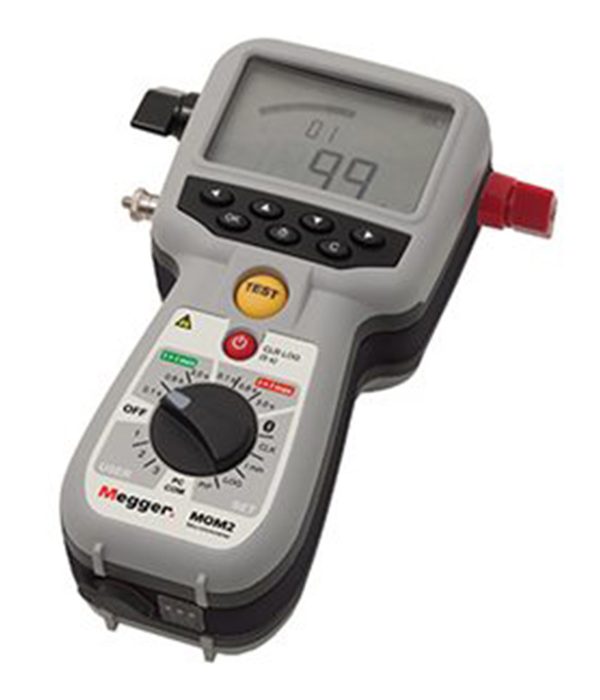

Megger MOM2 Hand-held 200 A Micro-ohmmeter

Megger MOM2  HAND-HELD 200 A MICRO-OHMMETER key features:

  • Up to 220 A
  • Battery powered
  • Light weighs only 1 kg
  • Safe test – DualGround™
  • Auto range: 1 μΩ to 1000 mΩ
  • Bluetoot® PC communication
  • Complies with IEEE and IEC standards
(1 customer review)
SKU: 3632

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 24,500 (excl.VAT)

14 People watching this product now!

Megger MOM2 Hand-held 200 A Micro-ohmmeter

The Megger MOM2 is designed to measure the resistance of circuit breaker contacts, bus-bar joints and other high-current links. This product is designed with safety, ease of use and versatility in mind.

MOM2 uses an ultra capacitor to generate the high output current. The ultra capacitor is able to store a huge amount of energy compared to conventional capacitors and can deliver very high current during the discharge thanks to its very low internal resistance. The microhmmeter can be used anywhere to measure a low resistance value with high accuracy. With MOM2 it is possible to make measurements according to the DualGround™ method. This means that the test object will be grounded on both sides throughout the test giving a safer, faster and easier workflow.

Overview of the Megger MOM2

The Megger MOM2 is a highly portable micro-ohmmeter that has revolutionized resistance testing in difficult and remote locations. With its lightweight design and powerful battery, the MOM2 allows for easy transportation and use in the field without sacrificing accuracy. This instrument is particularly effective for measuring the contact resistance of circuit breaker contacts, busbar joints, and other critical connections where low resistance is essential.

Key Features of the Megger MOM2

The Megger MOM2 is not just compact but packed with features that enhance its usability and efficiency:

  • High Precision: The MOM2 delivers extremely accurate low-resistance measurements, crucial for ensuring the operational integrity of electrical systems.
  • DualGround™ Safety: This feature allows testing to be performed by grounding both sides of the breaker, significantly increasing safety by avoiding floating potentials.
  • Bluetooth Connectivity: The integration of Bluetooth allows the MOM2 to communicate with accompanying software, facilitating the storage and analysis of test results directly on a smartphone or tablet.
  • Battery Operated: Equipped with a powerful rechargeable battery, the Megger MOM2 can conduct up to 200 tests on a single charge, making it ideal for extensive field use.

Applications of the Megger MOM2 Micro Ohmmeter

The versatility of the Megger MOM2 makes it suitable for various testing scenarios:

  • Utility Substations: Essential for testing substation components like switchgear and busbar joints to prevent potential failures.
  • Manufacturing Facilities: Used in quality control processes to test mechanical and electrical connections during the manufacturing of electrical components.
  • Railway and Aerospace: Ensures the integrity of electrical connections in safety-critical systems in both the railway and aerospace industries.

Megger MOM2 Price

The price of the Megger MOM2 can vary based on suppliers and additional features or accessories included. Generally, the unit is competitively priced to reflect its advanced technology and capabilities. Potential buyers should expect to invest in a device that not only offers advanced testing solutions but also a long-lasting tool that can withstand the rigors of fieldwork. For specific pricing, contacting authorized Megger distributors or visiting their official website is recommended.

Megger MOM2 Hand-held 200 A Micro-ohmmeter Specifications:

  • Battery Power : Five AA (HR6) 2700mAh NiMH cells
  • Recharge Time : <12h
  • Typical Recharge Time at 25°C : 3h
  • Battery Charger Mains Voltage : 100 to 250V AC, 50/60Hz
  • Battery Charger Power Consumption : 60W
  • Battery Charger Protection : Against wrong battery type, low/high temperature
  • Real Time Clock Battery Life : ≥ 10 years
  • Audible Feedback : Different buzzer sounds
  • User Presets : 3
  • Field Calibration : Yes
  • Encapsulation : IP54
  • Dimensions (excluding binding posts) : 217 x 104 x 72mm (8.5 x 4.1 x 2.8 inches)
  • Weight : 1.0kg (2.2lbs) instrument only
  • 5.0kg (11lbs) with accessories and carrying case
5
1 review
1
0
0
0
0

1 review for Megger MOM2 Hand-held 200 A Micro-ohmmeter

Clear filters
  1. amer

    A quality ohmmeter

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

datasheet

Data Sheet

Specifications

Specification Details
Battery Power Five AA (HR6) 2700mAh NiMH cells
Recharge Time <12h
Typical Recharge Time at 25°C 3h
Battery Charger Mains Voltage 100 to 250V AC, 50/60Hz
Battery Charger Power Consumption 60W
Battery Charger Protection Against wrong battery type, low/high temperature
Real Time Clock Battery Life ≥ 10 years
Audible Feedback Different buzzer sounds
User Presets 3
Field Calibration Yes
Encapsulation IP54
Dimensions (excluding binding posts) 217 x 104 x 72mm (8.5 x 4.1 x 2.8 inches)
Weight 1.0kg (2.2lbs) instrument only, 5.0kg (11lbs) with accessories and carrying case
