MEGGER Teleflex SX-1

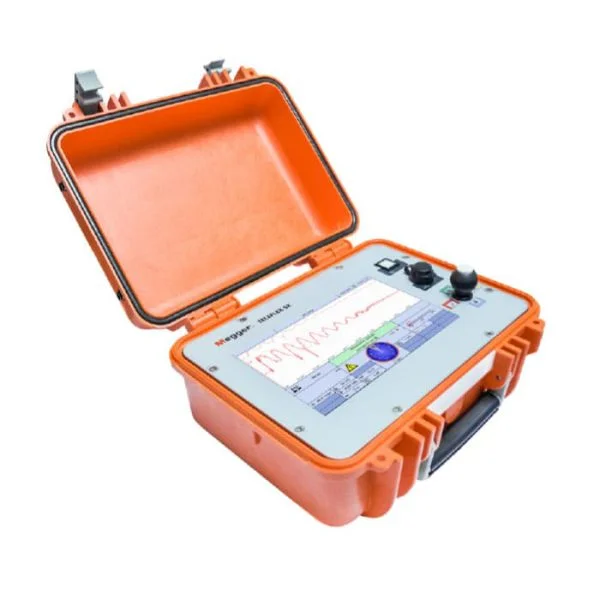

The MEGGER Teleflex SX-1 is a portable 2-channel time domain reflectometer (TDR) designed to provide quick, effective, accurate and safe prelocation of faults in cable installations.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price
MEGGER Teleflex SX-1
The MEGGER Teleflex SX-1 is a portable 2-channel time domain reflectometer (TDR) designed to provide quick, effective, accurate, and safe relocation of faults in cable installations. The operation of the instrument is via a single jog dial and an intuitive, well-proven piechart interface. The large and bright color display with touchscreen functionality further enhances operator comfort and supports rapid and accurate results. The Teleflex SX-1 is powered by its internal rechargeable battery and may be operated in battery-only mode or via a smart charger connected to a mains power supply.
Key Features of the Teleflex SX-1:
High-Voltage Compatibility: The device supports all high-voltage pre-location methods, making it a versatile tool for a wide range of cable testing scenarios.
Advanced Multi-Shot Technology: Equipped with multi-shot technology, the Teleflex SX-1 can capture up to 15 fault traces per arc reflection shot, enhancing the depth and breadth of fault analysis.
Intuitive Operation: Operation is simplified through a single jog dial and an intuitive software interface displayed on a large, bright, color touch screen. This user-friendly interface ensures that tasks can be performed with ease and accuracy, promoting quick learning and mastery of the device.
Flexible Power Options: Flexibility is at the heart of the Teleflex SX-1 design. It can be operated using a rechargeable battery or connected to the mains supply via a smart charger, accommodating various field conditions and preferences.
Integrated with Surge Wave Generators: For enhanced diagnostic capabilities, the Teleflex SX-1 can be used on its own or in conjunction with surge wave generators (thumpers), providing a comprehensive solution for locating faults in electrical cables.
MEGGER Teleflex SX-1 Specifications:
- LCD size: 10.1”
- Aspect ratio:16:10
- Resolution: 1.280 x 800 (WXGA)
- Backlight: LED
- Luminance: 1000 cd/m² directly bonded Anti-glare touchscreen
- Pulse generation: Unipolar
- Pulse amplitude: 50 V fixed
- Pulse width:20 ns … 10 μs
- Measuring range XR: 20 m … 160 km at VOP = 80 m/μs
- Resolution:0.1 m at VOP = 80 m/µs
- Accuracy:0.1%
- Timebase accuracy: Better than 100 ppm
- Data rate: Faster than 400 MHz
- Dynamic range: More than 96 dB
- ProRange: More than +22 dB(distance-dependent de-attenuation)
- The velocity of propagation:10 … 149.9 m/μs
- VOP settable to m/µs or ft/µs or nvp
- Output impedance: 50 Ω No dedicated internal compensation necessary
- ARM® trigger: ΔU trigger technology with automatic adjustment
- External voltage :< 400 V, only with separation filter
- Memory: 4 GB for program and data
- Connections: USB, BNC, CAN
- Protection class: IP 65 enclosed, IP 54 open
- Battery: 12 V Li-Ion rechargeable battery Overload protection Deep Discharge protectionSmart charger 110 … 240 V, 50/60 Hz 10 … 17 V DC, 3.8 A 6 hrs of operating time on full charge 4 hrs recharge time
- Dimensions (W x H x D) :362 x 195 x 305 mm(14.2 in. x 7.6 in. x 12 in.)
- Weight:7,8 kg (17.1 lbs)
- Operating temperature :- 10 °C … + 50 °C (14 °F … +122 °F)
- Storage temperature: – 20 °C … + 60 °C ( -4 °F … +140 °F)
1 review for MEGGER Teleflex SX-1
Clear filtersYou must be logged in to post a review.
Brand
Megger
Megger
Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.
Specifications
Specification | Detail |
---|---|
LCD size | 10.1” |
Aspect ratio | 16:10 |
Resolution | 1.280 x 800 (WXGA) |
Backlight | LED |
Luminance | 1000 cd/m² directly bonded Anti-glare touchscreen |
Pulse generation | Unipolar |
Pulse amplitude | 50 V fixed |
Pulse width | 20 ns … 10 µs |
Measuring range XR | 20 m … 160 km at VOP = 80 m/µs |
Resolution | 0.1 m at VOP = 80 m/µs |
Accuracy | 0.1% |
Timebase accuracy | Better than 100 ppm |
Data rate | Faster than 400 MHz |
Dynamic range | More than 96 dB |
ProRange | More than +22 dB (distance-dependent de-attenuation) |
The velocity of propagation | 10 … 149.9 m/µs |
VOP settable | m/µs or ft/µs or nvp |
Output impedance | 50 Ω No dedicated internal compensation necessary |
ARM® trigger | ΔU trigger technology with automatic adjustment |
External voltage | < 400 V, only with separation filter |
Memory | 4 GB for program and data |
Connections | USB, BNC, CAN |
Protection class | IP 65 enclosed, IP 54 open |
Battery | 12 V Li-Ion rechargeable battery Overload protection Deep Discharge protection Smart charger 110 … 240 V, 50/60 Hz 10 … 17 V DC, 3.8 A 6 hrs of operating time on full charge 4 hrs recharge time |
Dimensions (W x H x D) | 362 x 195 x 305 mm (14.2 in. x 7.6 in. x 12 in.) |
Weight | 7.8 kg (17.1 lbs) |
Operating temperature | – 10 °C … + 50 °C (14 °F … +122 °F) |
Storage temperature | – 20 °C … + 60 °C (-4 °F … +140 °F) |
