PCE-DM 6 True-RMS Digital Multimeter- 6000 Counts, 10 MHz Frequency, NCV
(No Reviews)
The PCE-DM 6 is a slim, smartphone-style True-RMS multimeter with 6000 counts, auto & manual ranges, NCV + live test, and a bright 3.1″ LCD with touch keys. It measures up to 1000 V DC / 750 V AC, resistance to 60 MΩ, capacitance to 60 mF, and frequency up to 10 MHz—rare at this price/size. Safety: CAT III 600 V, 2× AAA power.
- LCD display
- 3 x per second measuring rate
- Automatic and manual measurement range selection
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
The PCE-DM 6 Digital Multimeter is designed for versatility and ease of use, making it suitable for both professional and hobbyist applications. This multimeter features automatic measurement range selection, which simplifies the process for users by automatically adjusting to the optimal range for the measured variable.
PCE-DM 6 Multimeter Key features
The PCE-DM 6 Digital Multimeter is a versatile tool that offers a range of key features designed to enhance usability and measurement accuracy. Here are some of its notable characteristics:
- True RMS Measurement: This feature allows for accurate readings of both AC and DC voltages, ensuring precise measurements even in non-linear loads.
- Non-Contact Voltage Detection: The multimeter can detect live wires without direct contact, providing an added layer of safety during electrical testing.
- Automatic Measurement Range Selection: Users benefit from automatic adjustments to measurement ranges, which simplifies operation and reduces the need for manual settings.

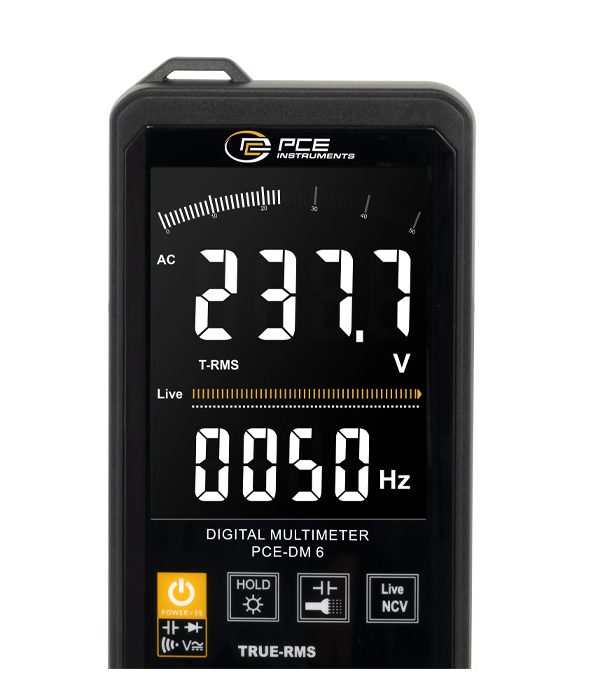

- Large LCD Display: The device features a clear 3.1-inch LCD display that provides easy-to-read measurements, enhancing visibility in various lighting conditions.

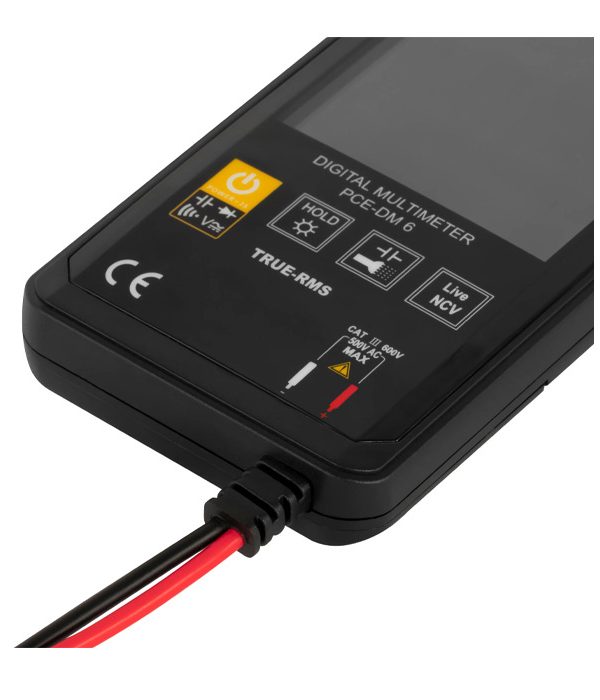

- Touch Key Interface: The multimeter is equipped with touch-sensitive keys, making it user-friendly and allowing for quick navigation through functions.
- Hold Function: This feature enables users to freeze the displayed measurement, which is useful for recording data without needing to look directly at the device.

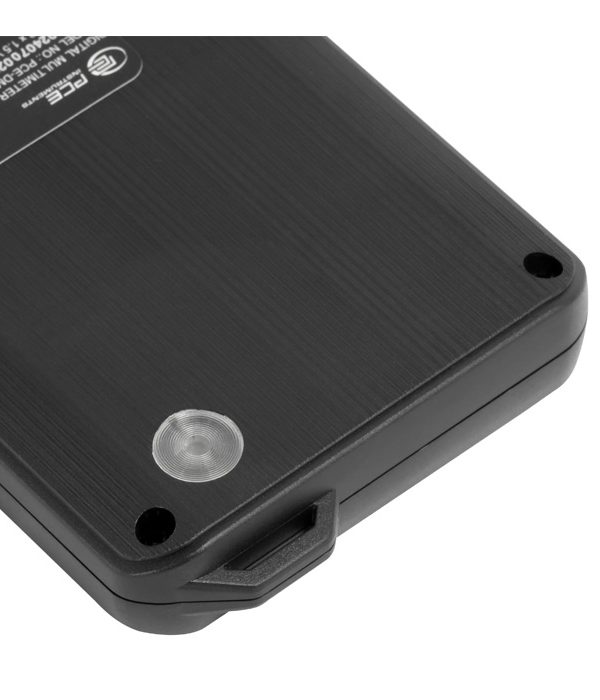

- Integrated LED Light: An LED light on the back of the meter assists users in dimly lit environments, improving visibility while working.
- Data Logging Capability: The PCE-DM 6 can log data for later analysis, which is particularly useful for monitoring changes over time in various electrical parameters.

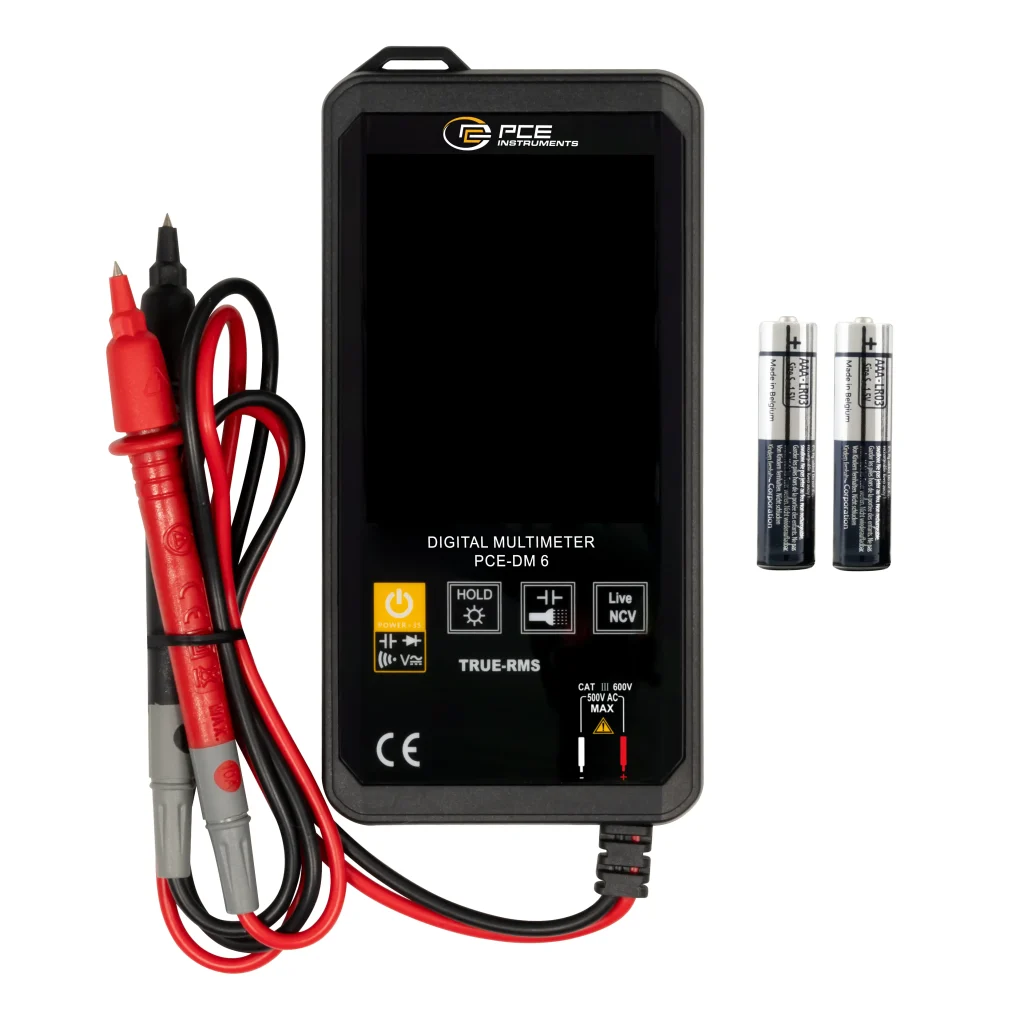

What’s in the PCE-DM 6 Box

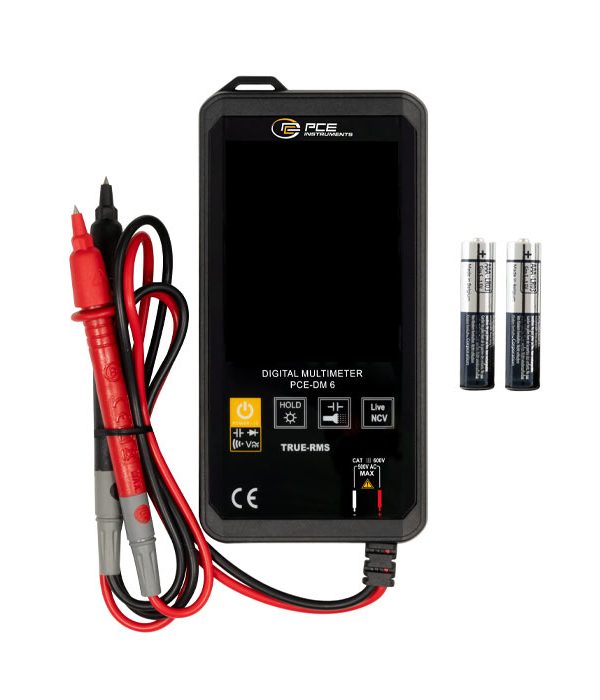

Meter PCE-DM 6, 1 set test leads, 2× AAA batteries, user manual
specifications
specifications
| Direct voltage DC | |
| Measurement range up to | 0 … 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Overload | 1000 V |
| Direct voltage DC | |
| Measurement range up to | 6 … 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 60 … 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 600 … 1000 V |
| Resolution | 1 V |
| Accuracy | ±(0.8 % of Rd +10 digits) |
| Capacity | |
| Measurement range up to | 0 … 10 nF |
| Resolution | 10 pF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 … 100 nF |
| Resolution | 100 pF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 0,1 … 1 µF |
| Resolution | 1 nF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 1 … 10 µF |
| Resolution | 10 nF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 … 100 µF |
| Resolution | 100 nF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 0,1 … 1 mF |
| Resolution | 1 µF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 1 … 10 mF |
| Resolution | 10 µF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 … 60 mF |
| Resolution | 100 µF |
| Accuracy | ±(5 % of Rd +3 digits) |
| AC voltage | |
| Measurement range up to | 0 … 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Overload | 750 V |
| Frequency range | 50 … 1000 Hz |
| AC voltage | |
| Measurement range up to | 6 … 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Frequency range | 50 … 1000 Hz |
| AC voltage | |
| Measurement range up to | 60 … 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Frequency range | 50 … 1000 Hz |
| AC voltage | |
| Measurement range up to | 600 … 750 V |
| Resolution | 1 V |
| Accuracy | ±(0.8 % of Rd +10 digits) |
| Frequency range | 50 … 1000 Hz |
| Resistance | |
| Measurement range up to | 0 … 600 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Resistance | |
| Measurement range up to | 0,6 … 6 kΩ |
| Resolution | 1 Ω |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 6 … 60 kΩ |
| Resolution | 10 Ω |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 60 … 600 kΩ |
| Resolution | 100 Ω |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 600 … 6000 kΩ |
| Resolution | 1 kΩ |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 6 … 60 M Ω |
| Resolution | 10 kΩ |
| Accuracy | ±(2.5 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 0 … 10 Hz |
| Resolution | 0,01 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 10 … 100 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 0,1 … 1 kHz |
| Resolution | 1 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 1 … 10 kHz |
| Resolution | 10 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 10 … 100 kHz |
| Resolution | 100 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 0,1 … 1 MHz |
| Resolution | 1 kHz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 1 … 10 MHz |
| Resolution | 10 kHz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD |
| Display size | 3,1 Inch |
| Measuring rate | 3 x per second |
| Standard(s) | IEC 1010 |
| Automatic power-off | 5 min |
| Safety standard | CAT III 600 V |
| max. input impedance | 10 M Ω |
| Measurement range selection | Automatic, Manual |
| Diode test | Test current: 1 mA |
| max. voltage: 3 V | |
| Display range | 6000 counts |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Weight | 149 g |
| Operating conditions | 0 … 40 °C , 0 … 80 % RH |
| Storage conditions | 0 … 40 °C , 0 … 80 % RH |

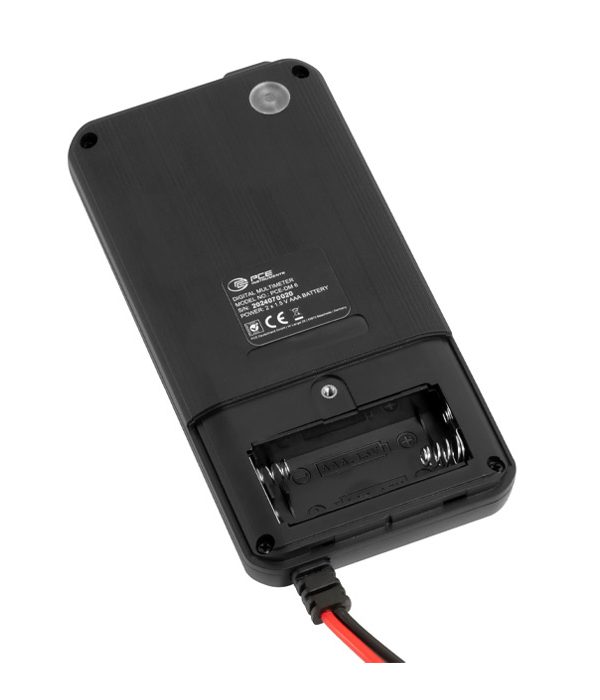

| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Dimensions ( L x W x H ) | 138 x 68 x 18 mm |
