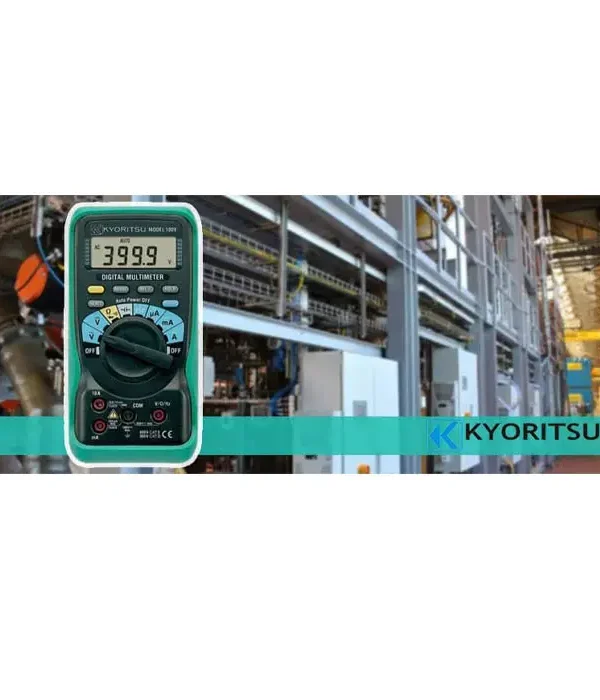

Kyoritsu KEW 1009 Digital Multimeter

Kyoritsu 1009 Auto Range Digital Multimeter

Kyoritsu model 1009 is manufactured by Kyoritsu company with a weight of 280 grams and dimensions of 5 x 8 x 16 cm, which is a compact and lightweight portable multimeter. It is important to know that multimeters are also known as ohmmeters. When creating this device, manufacturers separately made voltmeters, ammeters, and ohmmeters.

Newer models have other features, such as Frequency measurement, capacitor capacitance, and transistor measurement; You can also work in different work areas and automatically find the desired unit of measure (automatic suffering) and display it on the screen. The KEW 1009 multimeter also has an automatic ability to suffer.

MMElectronic, as a prominent distributor, is proud to fulfill all your needs in the field of multimeters with the best global brands, offering top-notch quality and competitive prices.

You can also contact our experts at MMElectronics to know the kyoritsu model 1009 price and other multimeters of kyoritsu such as the Kew 1019r, and Kew 1021r True-RMS Digital Multimeters.

kyoritsu model 1009 Features

• Auto range and manual range selector provided. (with range hold feature)
• Resistance range provides an audible continuity test.
• Automatically turns the power off in about 30 minutes to conserve battery life.
• Direct current measurement up to 10A AC and DC.

Display: 3999 Counts

The KEW 1009 boasts a high-resolution display with 3999 counts, providing clear and detailed readings for accurate data interpretation. This large and easy-to-read display ensures that users can quickly and confidently read measurements, even in low-light conditions or complex testing environments.

Auto-Ranging and Manual Ranging Selector

To cater to different measurement needs, the KEW 1009 offers both auto-ranging and manual ranging options. The auto-ranging feature simplifies the measurement process by automatically selecting the most appropriate range, while the manual ranging selector allows users to lock in a specific range for more precise control. The range hold feature further enhances measurement consistency and reliability.

Resistance Range with Audible Continuity Test

The KEW 1009’s resistance range includes an audible continuity test, an essential feature for quickly identifying continuity in circuits. This audible alert provides immediate feedback, making it easier to diagnose and troubleshoot electrical issues efficiently. This functionality is particularly useful for detecting open or closed circuits in a variety of testing scenarios.

Automatic Power Off

To conserve battery life and ensure the multimeter is always ready for use, the KEW 1009 is equipped with an automatic power-off function. This feature turns the device off after approximately 30 minutes of inactivity, significantly extending battery life and reducing the frequency of battery replacements. This automatic shut-off feature helps maintain the multimeter’s readiness and reliability over extended periods of use.

Direct Current Measurement Up to 10A AC and DC

The KEW 1009 is capable of measuring direct current up to 10A for both AC and DC currents. This capability makes it a versatile tool for a wide range of applications, from troubleshooting household electrical issues to maintaining complex industrial systems. The ability to measure both AC and DC currents enhances the multimeter’s utility and flexibility in various testing scenarios.

Frequently Asked Questions

What multimeter can measure?

A digital multimeter is a measuring device used to measure two or more electrical values, primarily voltage (volts), current (amps), and resistance (ohms).

What is the use of a digital multimeter?

Digital multimeters are measuring devices that can measure quantities such as voltage, current, and resistance. The measured values ​​are shown on a digital display and are therefore easy and clear to read, even for beginners.

How do I choose a good multimeter?

A multimeter only has a few basic functions like measurement, voltage, current, and resistance, so make sure your meter can do at least these three tasks and some additional functions like a diode, continuity mode, and more importantly, There is a backlight, which can sometimes be useful.

Kyoritsu 1009 Specifications:

• DC / AC  V  : 400mV/4/40/400/600V
• DC / AC A: 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt
• Ω : 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt
• Continuity buzzer : 400Ω (Buzzer sounds below 100Ω)
• Diode test: 1.5V Release Voltage: Approx. 0.4mA Test Current
• Capacitance: 40/400nF/4/40/100µF
• Frequency : 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
• DUTY: 0.1 – 99.9% (Pulse width/Pulse period) ±2.5%±5dgt
• Power source : R6 (1.5V) × 2
• Dimensions : 161(L) × 82(W) × 50(D)mm
• Weight: 280g

If you want to check the full specifications and details about the product check the kyoritsu 1009 manual.
