Description

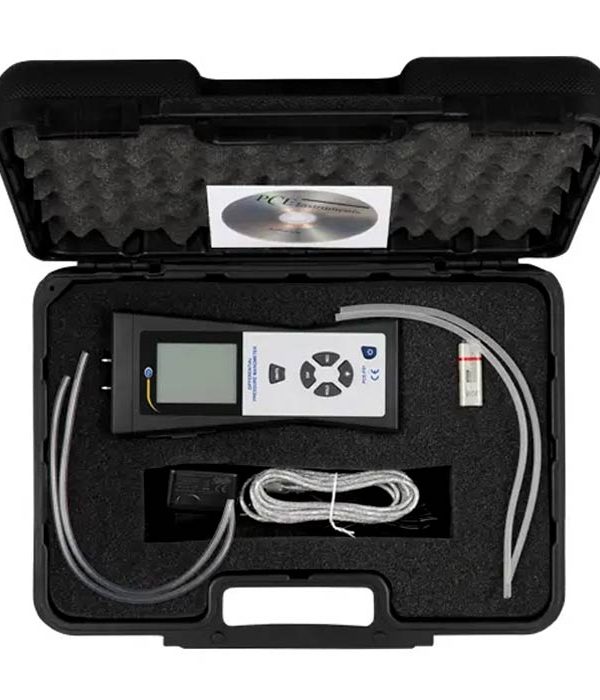

PCE-P15 Differential Pressure Manometer

The PCE-P15 is a professional differential pressure manometer designed for measuring overpressure, underpressure, and differential pressure, suitable for air and gases. It features an RS232 interface and software for data transfer to a PC, making it ideal for use in various industries, services, and laboratories. The device offers high accuracy, and overload protection, and can display measurements in 9 different units.

PCE-P15 Key Features

9 selectable units
Digital display of over, under (vacuum) or differential pressure
Min / Max memory
Data hold function
Backlit LCD display
Impact-resistant ABS housing
Auto-power-off function

PCE P15 Specifications

Pressure Meter	Parameter	PCE-P15
Max. Pressure	positive/ negative or overpressure / vacuum	30 psi
PSI	Range	0…±15
Resolution	0.01
mbar	Range	0…±1000
Resolution	1
inH₂0	Range	0…±415
Resolution	0.3
inHg	Range	0…±30.5
Resolution	0.005
mmHg	Range	0…±750
Resolution	0.5
kPa	Range	0…±100
Resolution	0.1
cmH₂0	Range	0…±1050
Resolution	1
Kg/cm²	Range	0…±1.05
Resolution	0.001

Data format		Baud rate: 2400 baud,1 stop bit, 8 data bits
Accuracy		±0.3 % (full range, @ +25°C / +77°F)
Repeatability		±0.2 % (max. ±0.5 % of full scale)
Duration		0.3 ms
Operating temperature max		+50 °C / +122 °F
Battery		1 x 9 V – block battery PP3
Dimensions		182 x 72 x 30 mm / 7.1 x 2.8 x 1.1″
Weight		150 g / 5.3 oz
