PCE-P01 Differential Pressure Manometer

1 x Differential Pressure Manometer PCE-P01 4 x 30cm / 11.8″ silicone hose 1 x Software including USB cable 1 x 9V block battery 1 x 9V DC power supply 1 x Plastic case 1 x User manual

SKU:61806

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 600 (excl.VAT)

17People watching this product now!

PCE-P01 Differential Pressure Manometer

Differential pressure is measured using a pressure measuring tool known as a “Differential Pressure Manometer” or “differential pressure manometer.” In the chemical and oil processing industries, as well as in air conditioning, heating, and pumping systems, this instrument is often used to monitor air pressure.

product overview

A portable, handheld digital differential pressure manometer called PCE-P01 is used to monitor differential pressure in HVAC (heating, ventilation, and air conditioning) systems, pneumatic installations, compressor and pump installations, valves, tanks, and other places. The PCE-P01 shows minimum, maximum, and average readings on the meter’s LCD so that they may be compared to the current measurement data.

The PCE-P01 differential pressure manometer also has real-time data logging capabilities with a variable interval between 1 second and 24 hours. One 9 V block battery, one AC power adapter, and four 30 cm/11.81 in silicon tubes are included with the gadget. The package materials also contain a USB cord and PC-compatible software. The program may be used to recognize and record pressure variations, as well as show the information visually or in a table.

function PCEP01 Differential Pressure Manometer

Two glass or metal tubes are joined by a tube to form this gadget. The two sites on either one system or two independent systems are linked by these two tubes. The fluid level in each tube will vary depending on where the pressure is different. The differential pressure (pressure difference) of the system may be determined by measuring these heights.

PCE-P01 Differential Pressure Manometer features

  • Easiest to use.
  • Measuring static and differential pressure in 11 selectable units, including mbar, bar, psi, and kPa.
  • A 140 to 140 mbar measuring range.
  • Display of minimum, maximum, and average values.
  • The “Hold” feature.
  • The backlight has an on/off switch.
  • For long-term measurements that take into account the power supply.

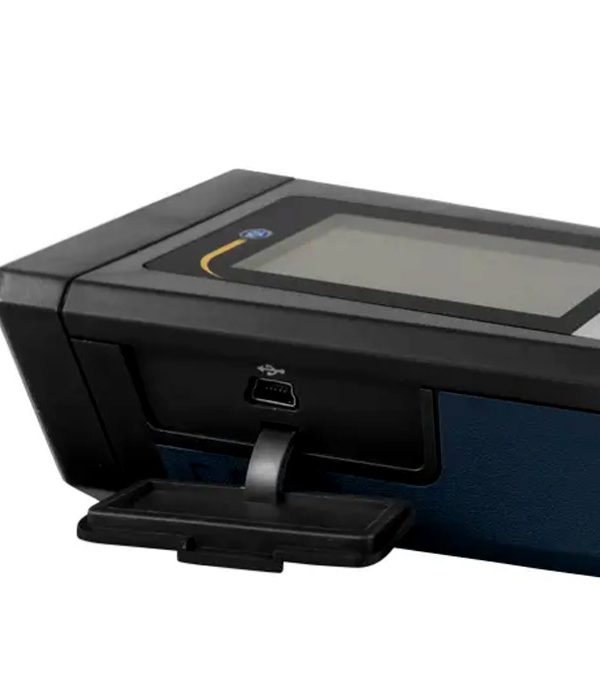

  • Included a USB cord and software.
  • An indicator of battery life.
  • An auto-off feature that may be disabled.
  • At any time, a zero-point adjustment is feasible.

More information

MME-AE is a renowned importer and distributor of Manometer in Dubai and various other countries, providing the most competitive prices in the market. For purchasing a Manometer and obtaining detailed Pce p01 differential pressure manometer price information, we encourage you to get in touch with our knowledgeable experts at MME-AE.

Related Products

PCE-P01 Differential Pressure Manometer specifications

Measuring range (±)55.40
inH2O2.000
psi137.8
mbar13.79
kPa4.072
inHg103.4
mmHg32.00
ozin²4.612
ftH2O140.6
cmH2O0.140
kgcm²0.137
bar
Resolution  0.01
inH2O0.001
psi0.1
mbar0.01
kPa0.001
inHg0.1
mmHg0.01
ozin²0.001
ftH2O0.1
cmH2O0.001
kgcm²0.001
bar
Accuracy (at 25°C / 77°F)± 0.3% of measuring range
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure689 mbar
Operating temperature0 … 50°C / 32 … 122°F
Storage temperature-10 … 60°C / 14 … 140°F
MediaAir and non-explosive gases
Real-time data-logging interval   1 sec. to 24 h adjustable

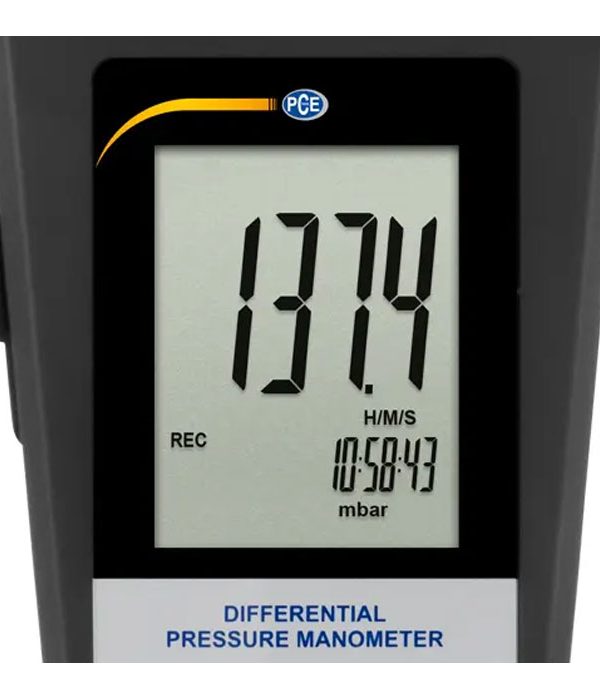

DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs
Power supplyBattery: 1 x 9V block
AC adapter: 9V DC / 500-mA



0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PCE-P01 Differential Pressure Manometer”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Pce

PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.

pce logo brand3

Datasheet

Mme-Pdfs-Image

Specifications

Manometers
max. static pressure

689 mbar

Pressure(Range/Resolution/Accuracy)

+-2.000 /0.001 /± 0.3% psi

Mechanical and General Specifications
Dimensions

210x 75 x 50 mm

Weight

650 g

Power

AC adapter: 9V DC / 500-mA

Operating temperature

0 … 50°C

Storage temperature

-10 … 60°C

Measurement Unit

bar, cmH2O, ftH2O, inH2O, inHg, kgcm², kPa, mbar, mmHg, ozin², psi
