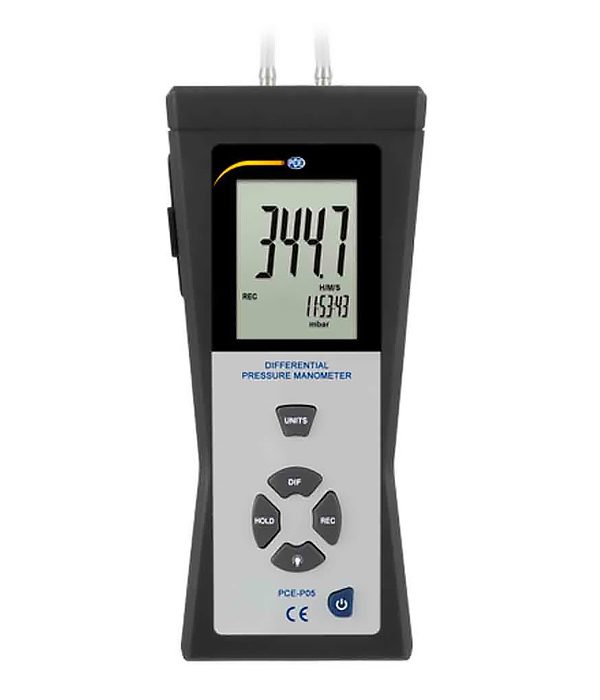

PCE-P05 Differential Pressure Manometer

The PCE-P05 Differential Pressure Manometer is a device used to measure the difference in pressure between two points in a fluid system.

SKU:61947

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 712 (excl.VAT)

19People watching this product now!

PCE-P05 Differential Pressure Manometer

The PCE-P05 Differential Pressure Manometer is a device used to measure the difference in pressure between two points in a fluid system. It is often employed in various industrial, HVAC (heating, ventilation, and air conditioning), and research applications where accurate pressure measurements are required.

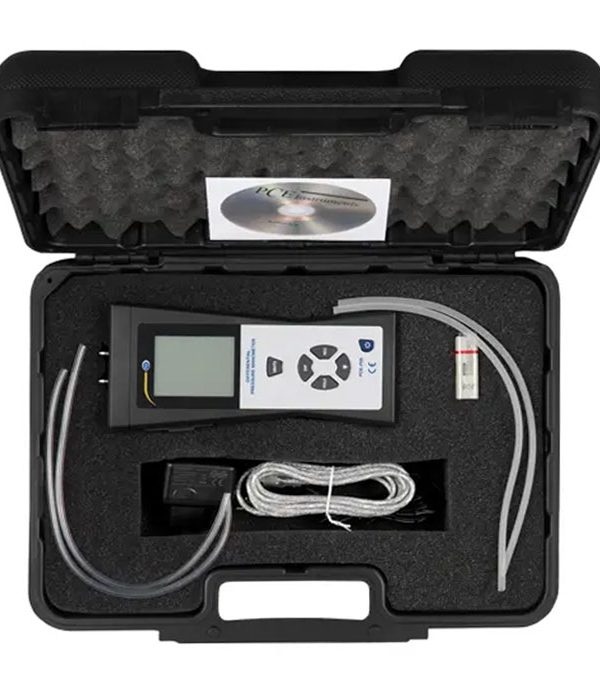

A real-time data logging option is also available on the pce p05 differential pressure manometer, with a range of intervals from 1 second to 24 hours. One 9V block battery, one AC power adapter, and four 30 cm/11.81 in silicon tubes are included with the gadget. The package materials also contain a USB cord and PC-compatible software. The program may be used to identify and record pressure variations, as well as to visually or numerically display the data.

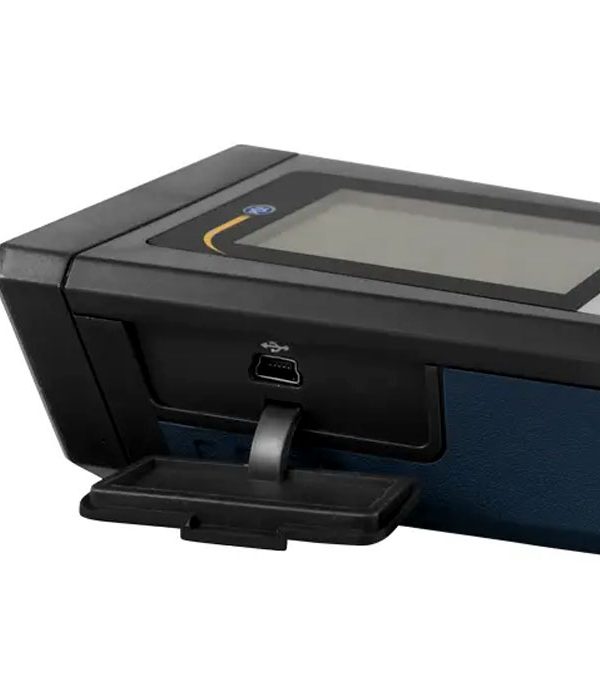

Simply connect the differential manometer by USB to your computer for real-time data recording, and store the recorded results in accordance with the time period you’ve chosen. The program will then allow you to immediately calculate average values, or you may export the data to Microsoft Excel.

PCE-P05 Differential Pressure Manometer features

  • Easiest to use.
  • 11 selectable units, including mbar, bar, psi, kPa, and more.
  • Measuring range: -5.000 to +5.000 psi/-344… +344 mbar.
  • Display of minimum, maximum, and average values.
  • The “Hold” feature.
  • The backlight has an on/off switch.
  • For long-term measurements that take into account the power supply.
  • Included a USB cord and software.
  • An indicator of battery life.
  • An auto-off feature may be disabled.
  • At any time, a zero-point adjustment is feasible.

more information

MME-AE is a renowned importer and distributor of Manometer in Dubai and various other countries, providing the most competitive prices in the market. For purchasing a Manometer and obtaining detailed manometer price information, we encourage you to get in touch with our knowledgeable experts at MME-AE.

Pce P05 Differential Pressure Manometer

PCE P05 Differential Pressure Manometer

PCE-P05 Differential Pressure Manometer specifications

Measuring range  (±)
inH2O138.30
psi5.000
mbar344.7
kPa34.47
inHg1.018
mmHg258.5
ozin²80.00
ftH2O11.53
cmH2O351.5
kgcm²0.351
bar0.344
Resolution
inH2O0.1
psi0.001
mbar0.1
kPa0.01
inHg0.001
mmHg0.1
ozin²0.01
ftH2O0.001
cmH2O0.1
kgcm²0.001
bar0.001
Accuracy (at +25 °C / +77 °F)± 0.3% of the measuring range
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure1378 mbar
Operating temperature0 … 50°C / 32 … 122°F
Storage temperature-10 … 60°C / 14 … 140°F
MediaAir and non-explosive gases
Real-time data-logging interval1 sec. to 24 h adjustable
DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs
Power supplyBattery: 1 x 9V block
AC adapter: 9V DC / 500-mA
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PCE-P05 Differential Pressure Manometer”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Pce

PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.

pce logo brand3

Datasheet

Mme-Pdfs-Image

Specifications

Manometers
Pressure(Range/Resolution/Accuracy)

0.000 to 5.000 psi

Mechanical and General Specifications
Dimensions

210 x 75 x 50 mm

Weight

650 g

Power

1 x 9V battery, 500-mA power supply

Measurement Unit

bar, cmH2O, ftH2O, inH2O, inHg, kgcm², kPa, mbar, mmHg, ozin², psi
