SKF TKSA 71 Shaft Alignment Tool

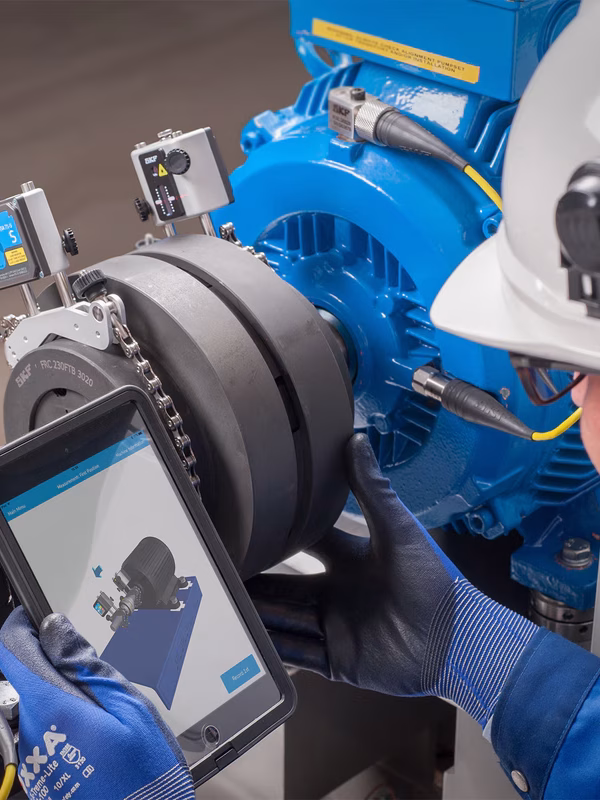

The SKF TKSA 71 shaft alignment tool is an advanced, high-end laser alignment system designed for professional use in harsh industrial environments. Engineered for extreme versatility, it features ultra-compact measuring units that make it the ideal solution for extremely narrow spaces. By delivering precise, fast, and easy alignment of rotating machinery, this completely wireless tool helps prevent unplanned downtime and mechanical failures.

Designed to improve alignment practices across various applications, this instrument functions quickly and intuitively using six dedicated software apps tailored for different alignment jobs. Available free of charge for iOS and Android platforms, these apps guide users through the process without requiring prior training. If you are searching for the best SKF TKSA 71 shaft alignment tool price, this device delivers superior alignment performance and long-term durability, offering incredible value for industrial professionals.

SKF TKSA 71 Key Features

Here are the core features of the SKF TKSA 71 wireless laser shaft alignment system:

• Wireless Precision: Fully wireless system utilizing Bluetooth 4.0 LE for seamless communication and fast setup without tangled cables.

• Comprehensive Software Apps: Includes six free, simple-to-use apps covering horizontal, vertical, machine train, spacer shaft, soft foot, and digital dial gauge applications.

• Highly Flexible Measurement: Enables automatic measurement and requires only a minimal 40° total shaft rotation, perfect for restricted spaces.

• Professional PDF Reporting: Automatic comprehensive reports are generated after alignment, featuring export/sharing options, and customizable target values.

• Machine Library & QR Codes: Simplifies machine identification and significantly improves the alignment workflow using built-in QR code reading.

• Disturbance Compensation: Ensures accurate readings even in challenging, vibrating environments.

SKF TKSA 71 Shaft Alignment Tool Specs

Ensuring precise machinery alignment is effortless with the robust capabilities of the SKF TKSA 71 shaft alignment tool. The bullet points below highlight the core system specifications and measurement tolerances of this advanced alignment tool. To explore the complete technical data, please refer to the product datasheet.

• Connectivity: Bluetooth 4.0 LE wireless communication.

• Measuring Range (Distance): 0.04 to 10 m (0.13 to 32.8 ft).

• Measurement Accuracy (Errors): <1% ±10 µm.

• Sensors: 20 mm 2nd generation PSD with line laser Class 2 and ±0.1° inclinometer.

• Supported Shaft Diameters: 20 to 150 mm (0.8 to 5.9 in), expandable up to 450 mm (17.7 in) with included extension chains.

• Unit Weight: Ultra-lightweight at just 130 g (0.3 lbs) per measuring unit.

• Battery Life: Rechargeable Li-ion battery providing up to 8 hours of operating time, featuring wireless fast charging (10 minutes charging for 1 hour of usage).

• Environmental Protection: Completely sealed measuring units and carrying case with an IP67 rating to withstand dust and water.

SKF TKSA 71 Applications

The SKF TKSA 71 shaft alignment tool is a highly versatile system designed to minimize mechanical wear and energy consumption by guaranteeing precise alignment across a wide range of rotating equipment. The bullet points below highlight the main applications of this advanced alignment tool.

• Horizontal & Vertical Shaft Alignment: Easy and intuitive alignment for standard motor-pump setups, complete with 9-12-3 guidance and shimming support.

• Machine Train Alignment: Align up to three connected machines, giving a complete overview of the machine train alignment.

• Spacer Shafts: Easily accommodates the special requirements of spacer shafts and facilitates complex alignment processes.

• Soft Foot Correction: Assists the technician in verifying the machine is standing evenly on all four feet, supporting rapid identification and correction.

• Values (Digital Dial Gauge): Allows operators to record absolute, zeroed, and halved readings to perform customized alignments with manual calculations.
