SKF TKBA 11 Belt alignment tool

Belt-driven machinery is used in many industries and applications, including HVAC equipment, milling machines, compressors, and camshafts. Aligning belt drives and chain drives accurately helps to reduce wear on belts, pulleys, chains, and sprockets. Precise alignment also reduces machine vibration and extends belt and pulley life. Typical benefits of this include improved machine performance, a reduction in unscheduled downtime, and lower energy costs.

The SKF TKBA 11 Belt alignment tool is part of a series of tools offering a simple way to achieve this. It accurately aligns pulleys and sprockets and corrects for various types of misalignment. Below, you will find detailed insights into the key features, technical specifications, and applications that make the SKF TKBA 11 a vital asset for your maintenance operations.

Key Features of the SKF TKBA 11

Here are the core features of the SKF TKBA 11, highlighting its precision, intuitive design, and measurement flexibility:

• Comprehensive Correction: The tool corrects for vertical angle, horizontal angle, and parallel misalignment, including combinations of all three.

• Clear Visuals: A laser line is projected from the emitting unit to the passive targets, which are mounted on the opposite pulley.

• Magnetic Mounting: Each component is attached quickly and easily using a powerful magnet to the inside or outside face of a belt pulley or chain sprocket.

• Versatile Range: The tool uses a red laser diode and can be used for distances up to 3 m (10 ft).

• Simplified Workflow: The design allows for the simultaneous adjustment of tension and alignment, streamlining the maintenance process.

SKF TKBA 11 Technical Specs & Hardware

The SKF TKBA 11 pairs advanced internal optics with a durable external design to ensure reliable operation in demanding environments.

• Durable Construction: A sturdy housing made from ABS and 2K polymers, paired with an aluminium base, helps ensure assembly stability and accuracy during alignment.

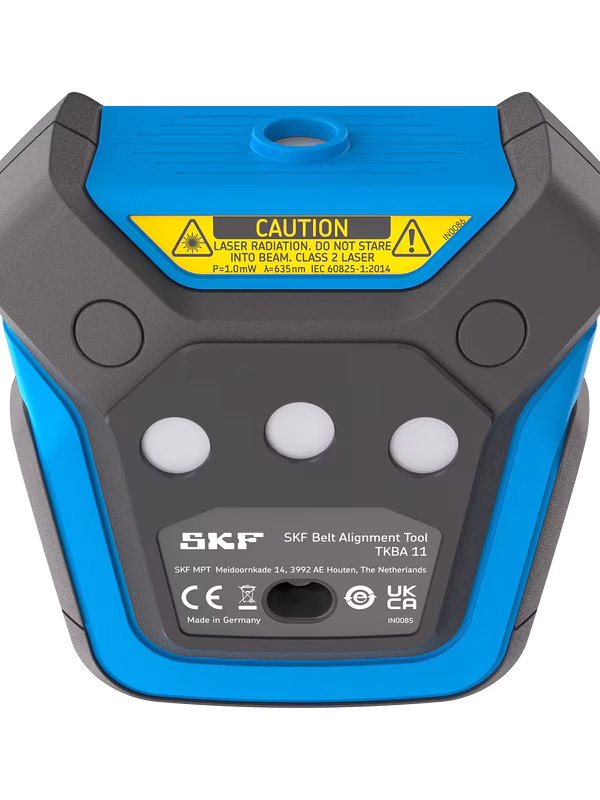

• Laser Specifications: Uses a highly visible, built-in class 2 red laser diode (<1 mW, 635 nm).

• High Precision: Delivers an angular measurement accuracy better than 0.02° at 2 m (6.6 ft) and an offset accuracy better than 0.5 mm.

• Battery Efficiency: It runs efficiently on 3 x AAA batteries for up to 32 hours of continuous operation.

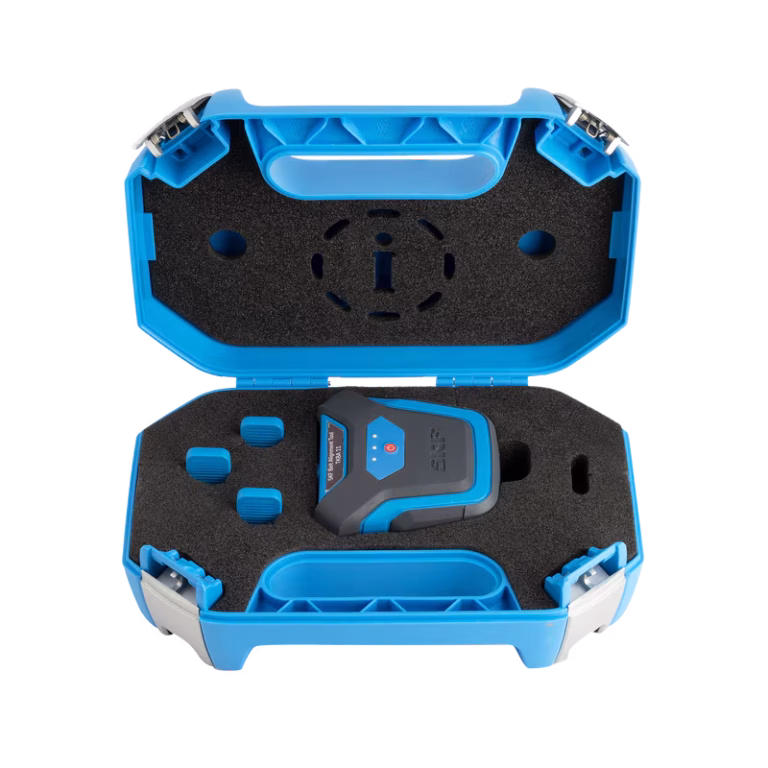

• Compact Design: The emitter unit weighs just 250 g (0.55 lb) with batteries, while the receiver units weigh a mere 35 g (0.08 lb) each.

SKF TKBA 11 Applications

The SKF TKBA 11 is meticulously designed to handle the core alignment processes needed across a vast array of industrial setups.

• Versatile Belt & Chain Compatibility: Applicable to most machines using V belts, banded belts, ribbed belts, and chain sprockets.

• Industrial Equipment: Belt drives are commonly found in HVAC systems, pump installations, paper mills, flour mills, lathe machines, milling machines, and conveyors.

• Heavy Machinery & Plants: Sprocket drives are often used in agricultural machinery, compressors, and engine camshafts. Furthermore, TKBA Belt alignment tools are heavily utilized in power plants, recycling facilities, chemical plants, and food & beverage production.
