SKF TKSA 51 Laser Shaft Alignment System

Overview

The SKF TKSA 51 is a versatile wireless laser shaft alignment system that suits everyone from entry-level users to alignment experts. It pairs over Bluetooth 4.0 LE with a dedicated free app on a tablet or smartphone, guiding the user step by step so no special training is required. A 20 mm PSD sensor with a Class 2 line laser measures with an error of less than 1% ±10 µm across a 0.07–5 m range.

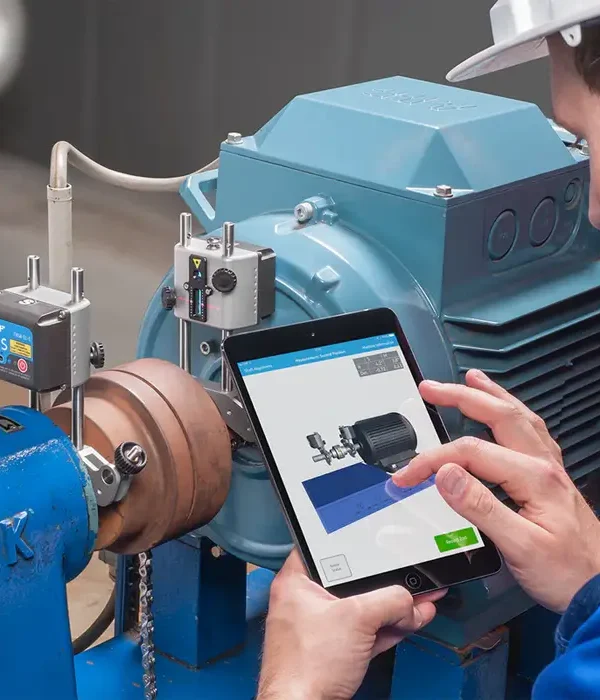

Its compact, lightweight measuring heads (190 g each) make the TKSA 51 easy to fit on motors, drives, fans, pumps and gearboxes, even in tight or hard-to-reach areas. Practical features such as automatic measurement, a soft-foot check, a machine library, QR-code reading, disturbance compensation and automatic PDF reporting help maintenance teams align rotating machinery quickly and document the results. IP54 protection makes it dependable in typical industrial conditions.

Key Features

• Wireless Bluetooth 4.0 LE connection to a tablet or smartphone via a free dedicated app
• 20 mm PSD with Class 2 line laser; measuring error <1% ±10 µm
• System measuring distance of 0.07 to 5 m (0.23 to 16.4 ft)
• Compact, lightweight measuring heads (52 × 64 × 50 mm, 190 g) for tight spaces
• 3-position 9-12-3 and automatic measurement (min. 40° rotation) with soft-foot check
• Live vertical and horizontal correction values displayed in real time
• Machine library, QR-code reading, disturbance compensation, 3D free-view and automatic PDF reports
• Rechargeable Li-ion battery, up to 8 hours’ use, with fast charging (10 min charge for 1 h use)
• IP54 environmental protection; operating temperature 0 to 45 °C
• Supplied with a printed 2-year calibration certificate

Applications

The SKF TKSA 51 aligns horizontal and vertical rotating machinery — motors, drives, fans, pumps, compressors and gearboxes — for maintenance teams across manufacturing, oil and gas, water treatment, power generation and general plant upkeep. Its compact heads make it well suited to tight, hard-to-reach couplings.

What’s in the Box

• 2 × Measuring units (M & S)
• 2 × Shaft brackets with chains 480 mm (18.9 in.), threaded rods 80 mm (3.2 in.) and magnets
• 4 × Threaded extension rods 120 mm (4.7 in.)
• 2 × Extension chains 980 mm (38.6 in.)
• 1 × Micro-USB to USB split charging cable
• 1 × Measuring tape
• 1 × Printed certificate of calibration and conformance
• 1 × Quick start guide (EN)
• 1 × SKF carrying case
• 2 × A5 sheets with 6 QR-code stickers each (12 stickers total)
