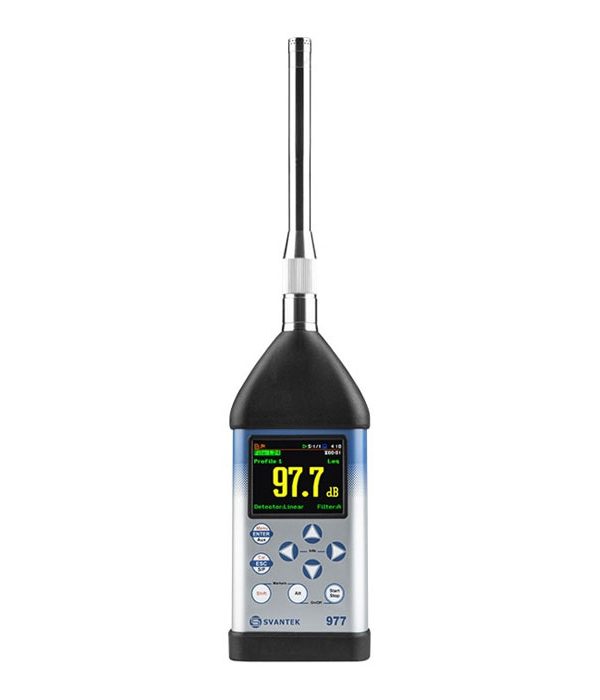

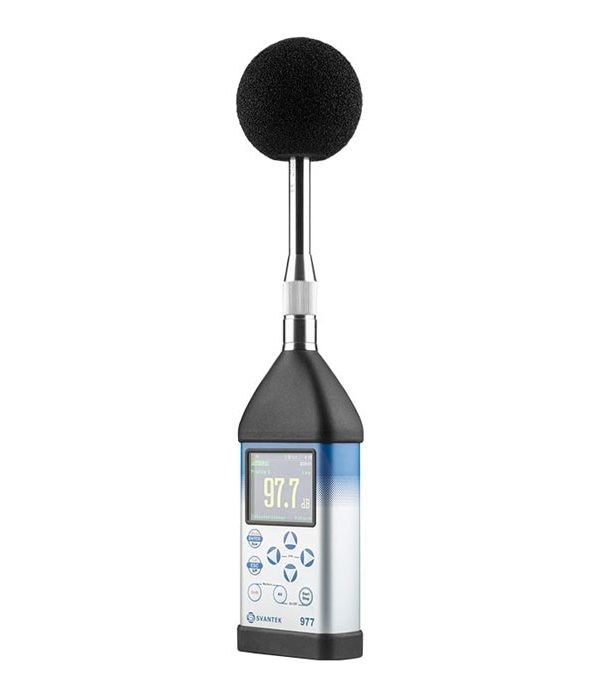

SV 977D Class 1 Sound & Vibration Level Meter

The SV 977 D is a Class 1 sound and vibration meter designed for measurements of building acoustics, industrial noise, and environmental noise.

SKU:16164

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

19People watching this product now!

Class 1 Sound Level Meter SV 977D

The SV 977D is a Class 1 sound and vibration meter designed for measurements of building acoustics, industrial noise, and environmental noise. The meter is a successor to the SVAN 977A and features a new MK255 1/2″ microphone that offers a wide frequency range from 3 Hz and excellent long-term sensitivity stability. The SV 977D has an integrated Bluetooth® interface for wireless connection to smartphone apps such as the Building Acoustics Assistant, which expands the measurement functions for Building Acoustics.

A unique feature of the SV 977D is the ultrasonic measuring tape up to 40 kHz. The frequency range above 20 kHz is normally considered to be the ultrasonic band. Ultrasound is used in a number of industrial processes such as cleaning, drilling, or welding, as well as in hospitals for medical procedures. The SV-977D can be also used as the vibration level meter – simply by connecting a cable and a vibration sensor.

To get more information about Svantek 977 price and Svantek 977 user manual please contact us.

New generation-sound level meters

The new SV 973 Class 2 sound level meter and the SV 971A Class 1 sound level meter are two new generation models, compliant with the IEC 61672 standard, with reduced size and weight and better application compatibility thanks to mobile applications, its main feature.

Class 1 Sound Vibration SV-977D


SV 977 Features

  • Sound measurements
  • Occupational noise
  • Building acoustics
  • Machine vibration
  • Auto-calibration
  • Remote communication
  • Bluetooth

Sv 977D Class 1 Sound &Amp; Vibration Level Meter

Sound & Vibration-Level Meter SV-977  Specifications:

  • Number of channels 1
  • Communication Interfaces USB-C, I/O, RS232, Bluetooth 5.2
  • Keyboard 9 keys
  • Memory uSD 32 GB
  • Battery type AA
  • Operating time 12-16 hours
  • Operating temperature range -10 °C to 50 °C
  • Humidity ranges up to 90 % RH, non-condensed
  • Weight 600 grams
  • Size 343 x 79 x 39 mm
