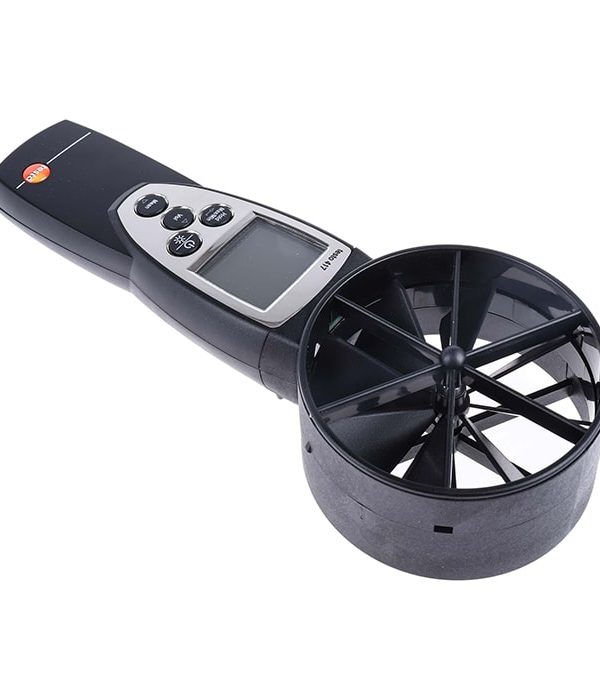

Testo 417 Rotating Vane Anemometer

Brand: Testo

SKU: 0560-4170

The Testo 417 rotating vane anemometer has a 4-inch (100 mm) vane for precise readings of air velocity, volume flow (CFM) and temperature on an easy-to-read display. By entering the duct dimensions, volume flow is calculated and displayed automatically, and you can switch quickly between air velocity and temperature, making airflow measurement a breeze.

Safe Buy
Fast Delivery
Original Guarantee
Online Payment

Call for price

Ask on WhatsApp

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Request a rental quote in 3 quick steps.

Step 1 of 3 — Contact

First name

Last name

No login needed — guests can submit. We email your quote to this address.

Repair & calibration request — 2 steps.

Step 1 of 2 — Contact

First name

Last name

Phone

Company

Address

ZIP / Postal code

No login needed — guests can submit a repair request.

Description

Overview

The Testo 417 rotating vane anemometer has a 4-inch (100 mm) vane, allowing for precise readings of air velocity, volume flow (CFM) and temperature on its easy-to-read display. By inputting the duct measurements, volume flow calculations are displayed automatically, so you get representative results across an outlet quickly and reliably.

With the ability to switch instantly between air velocity and temperature measurement, the testo 417 is straightforward to use in the field. Its large integrated vane averages the airflow across an air outlet, and the instrument works with optional funnels for fast volume flow measurement at supply and extract grilles.

Key Features

4-inch (100 mm) rotating vane for representative airflow measurement
Measures air velocity, temperature and volume flow (CFM / m³/h)
Automatic volume flow calculation from entered duct dimensions
Quick switching between air velocity and temperature
Compatible with testovent funnels for outlet measurement
Easy-to-read display with simple handheld operation

Applications

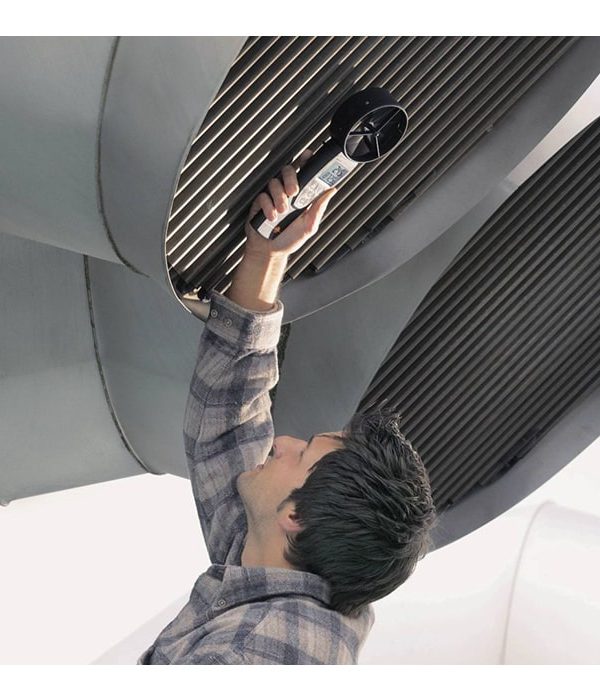

Air velocity and volume flow measurement at outlets and grilles
Ventilation and air-conditioning commissioning and balancing
HVAC service and performance checks
Funnel-based volume flow measurement at supply and extract air

What’s in the Box

testo 417 rotating vane anemometer with integrated 100 mm vane
9 V block battery
Calibration protocol

Why buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of testo measuring instruments in the UAE, offering genuine products, competitive pricing and knowledgeable local support. Order with confidence and get fast delivery across Dubai, Abu Dhabi and the wider Emirates. Download the datasheet

specifications

General Technical Data
Weight	230 g
Dimensions	277 x 105 x 45 mm
Operating temperature	0 to +50 °C
Battery type	9V block battery, 6F22
Battery life	50 h
Storage temperature	-40 to +70 °C
Temperature – NTC
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Velocity – Vane Anemometer
Measuring range	+59.1 to +3937 fpm / +0.3 to +20 m/s
Accuracy	±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
Resolution	1.97 fpm / 0.01 m/s
Volume Flow
Measuring range	0 to +58857 CFM / 0 to +99999 m³/h
Resolution	0.1 CFM (0 to +58.8 CFM) / 0.1 m³/h (0 to +99.9 m³/h)
