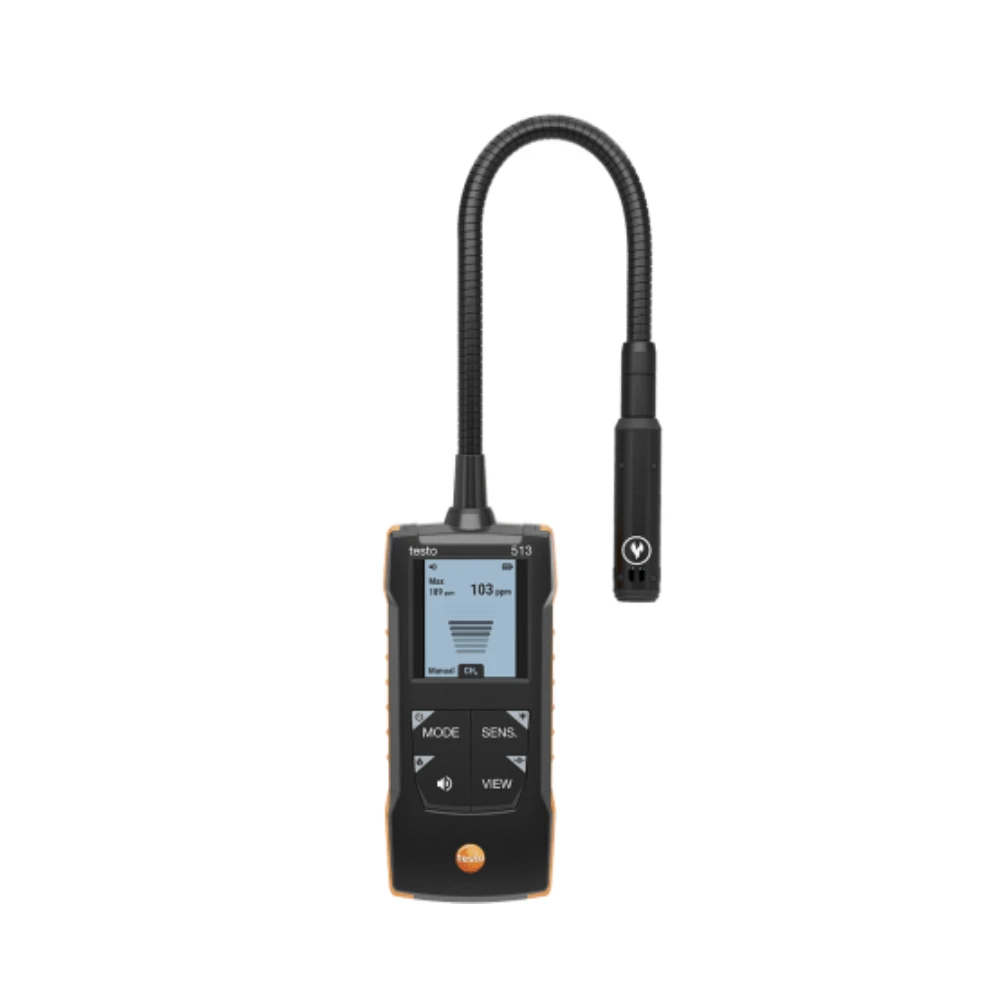

Testo 513 Gas leak detector with flexible probe

Brand: Testo
SKU: 0563 0513
Share
  • Rapid Response: Detects methane, propane, butane, and hydrogen leaks in less than 2 seconds.
  • Flexible Gooseneck: Simplifies leak detection in tight, confined piping spaces.
  • Interchangeable Sensor: Features a replaceable sensor head for long-term cost-efficiency.
  • MME Authorized Supply: Buy with full manufacturer warranty and service support.
  • Safe Buy
  • Fast Delivery
  • Original Guarantee
  • Online Payment

Specifications

Testo 513 Gas Leak Detector Technical Specifications

Specification Details
Detection parameters ppm, Vol.%, %LEL
Gases Methane, propane, butane, hydrogen (forming gas)
Detection range – methane 1 ppm to 1.0 Vol.% CH₄
Detection range – propane 1 ppm to 1.0 Vol.% C₃H₈
Detection range – butane 1 ppm to 1.0 Vol.% C₄H₁₀
Detection range – hydrogen 1 ppm to 1.0 Vol.% H₂
Resolution 1 ppm; 0.1 Vol.% above 999 ppm
Response / recovery time < 2 sec
Leak alarm Optical and audible
Sensitivity 3 g/a high, 14 g/a low
Sensor life 2 years under normal usage
Operating temperature -10 to +50 °C
Operating humidity 0 to 80 %RH
Storage temperature -20 to +60 °C
Battery type 3 × AA alkaline
Battery life 10 h
Dimensions 135 × 60 × 28 mm
Weight 296 g
Probe length with sensor 330 mm
Order number 0563 0513
