UNI-T UT685B KIT TDR Cable Tester | Network & Coax Fault Locator
(No Reviews)
- TDR Technology: Accurately measures cable length and fault distance up to 500m.
- Multi-Cable Support: Tests Twisted Pair (RJ45), Telephone (RJ11), and Coaxial (BNC) cables.
- POE Testing: Detects POE standards (IEEE 802.3af/at/bt), voltage, and polarity.
- Intelligent Wire Map: Identifies short circuits, open circuits, and cross wiring.
- Tone Generator: Digital and analog tone tracing with adjustable sensitivity.
- Complete Kit: Includes tester, receiver, adapters, and carrying bag.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description

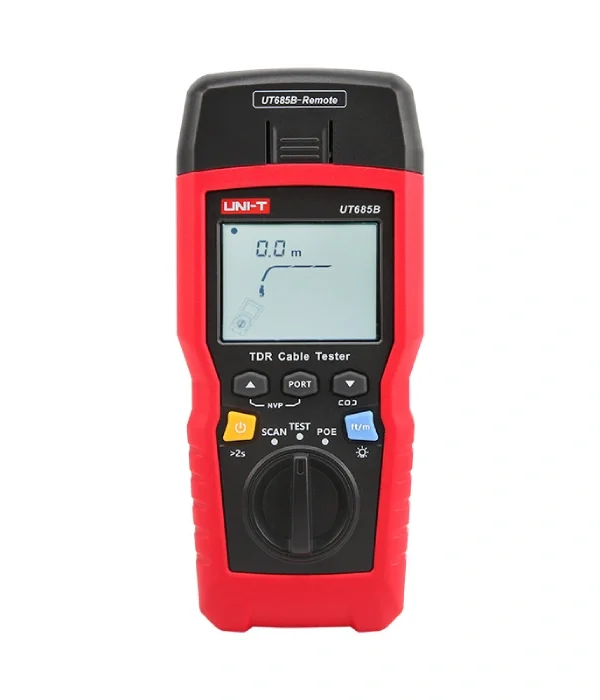

UNI-T UT685B KIT TDR Cable Tester
The UNI-T UT685B KIT is a handheld TDR Cable Tester designed for professionals installing and maintaining copper communication networks. Utilizing advanced Time Domain Reflectometry (TDR) technology, this device can measure cable length and pinpoint the exact distance to a fault (open or short circuit) without the need for a remote unit, supporting lengths up to 500 meters.

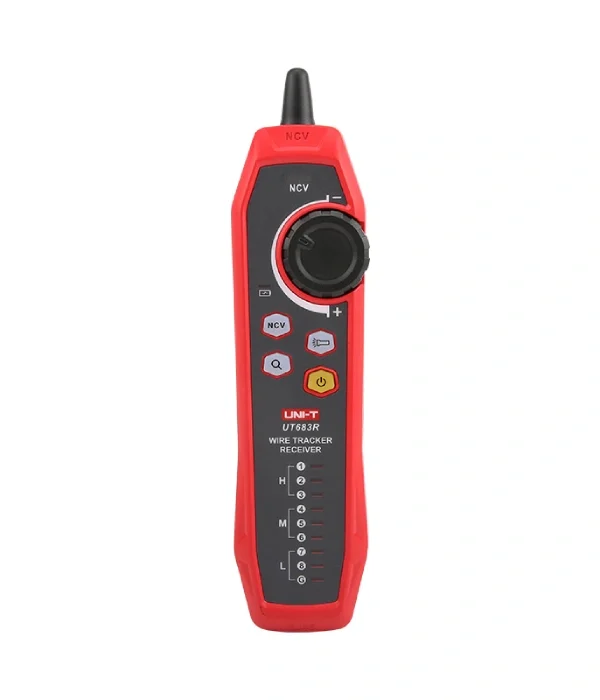

Ideal for testing Twisted Pair (UTP/STP), Coaxial, and Telephone cables, the UT685B KIT goes beyond simple continuity testing. It features comprehensive POE detection to identify power standards and voltage on active networks. The kit includes a receiver for wire tracking (toning) and “Port Flash” functionality to locate corresponding ports on switches/routers. With a large 2.8-inch backlit display and the ability to store 1000 data sets, the UT685B KIT is the ultimate diagnostic tool for network infrastructure.
UNI-T UT685B KIT Key Features:
- TDR Length Measurement: Determine cable length and fault location accurately.
- Detailed Wire Mapping: Graphical display of cable wiring status (RJ45/RJ11/BNC).
- Port Flash: Hub blink function to locate the port on a server/switch.
- POE Diagnostics: Identifies mid-span/end-span and power voltage.
- Dual Mode Tracing: Digital (interference-free) and Analog tone generation.
- Input Protection: Protected against 70V DC input voltage.
Specifications
Specifications
UNI-T UT685B KIT Specifications |
|
|---|---|
| Cable Testing Performance | |
| Tested Cable Types | Twisted Pair (UTP/STP), Coaxial (BNC), Telephone (RJ11) |
| TDR Cable Length | Range: Up to 500m Resolution: 0.33m Accuracy: ±4% or 0.5m |
| Wire Map | Checks for Short, Open, Cross, Split Pair |
| POE & Network Functions | |
| POE Detection | IEEE 802.3af/at/bt Standards |
| POE Voltage | Yes (Polarity and Voltage Value) |
| Port Flash | Yes (Locate port on Switch/Router) |
| Input Protection | 70V DC |
| General Characteristics | |
| Display | 2.8-inch LCD with Backlight |
| Power Supply | 1.5V AA Alkaline Battery x 3 (Tester) 1.5V AA Alkaline Battery x 3 (Receiver) |
| Auto Power Off | Yes (Adjustable: 10/30/60 mins) |
| Product Size | Tester: 181mm x 80mm x 39mm Receiver: 197mm x 48mm x 34mm |
| Kit Contents | UT685B Tester, Receiver, RJ45/RJ11/BNC Adapters, Manual, Carry Bag |
