Megger digiPHONE+2 Shock Wave Receiver

Megger digiPHONE+2 Overview

The Megger digiPHONE+2 is a shock-wave (surge) receiver for pinpointing underground cable faults using combined acoustic and electromagnetic methods. It listens for the acoustic discharge of a surge pulse while simultaneously detecting the magnetic pulse, then displays the time difference so the operator can walk directly to the fault position.

The Megger digiPHONE+2 (order no. 1013124) is for utility cable fault crews, jointers and contractors who have pre-located a fault on a buried LV, MV or HV cable and now need to stand directly above it before digging. A surge wave generator sends pulses into the faulted cable, and each flashover at the fault gives a magnetic pulse and a bang in the ground. The digiPHONE+2 picks up both and shows the time between them. The fault arrow tells you whether you are moving towards or away from the fault, and the lowest time difference marks the dig point. The cable compass shows whether you are left or right of the cable and the angle it runs to the sensor, so you stay on the route.

From Megger’s datasheet and product page: the ground microphone has more than 120 dB gain and an acoustic dynamic range above 110 dB. The sensor is IP65, weighs 2.2 kg with the telescopic handle, and the carrying bar adjusts from 450 to 750 mm. The control unit has a 320 × 240 colour display, stores 99 measurement series of 99 points, runs for more than 15 hours on six 1.5 V batteries, is IP54 and weighs 0.9 kg. Bluetooth pairs headphones and a GPS receiver. Background Noise Reduction cuts background noise by up to 30 dB, Automatic Proximity Mute silences the headphones before your hand reaches the handle, and the acoustic limit is 84 dB(A). Fault distance can be shown in milliseconds, metres or feet.

Which ground probe to fit, per Megger: the 3-point foot (tripod) on uneven solid ground, the 75 mm rod on grass and loose soil, the 18 mm rod on smooth hard ground such as asphalt, and a base plate on very hard, smooth surfaces.

MME is an authorized Megger representative in the UAE. See the Megger range, our cable locators and our cable fault detectors. To add sheath fault location, see the Megger digiPHONE+2 NT set; for cable tracing as well, the digiPHONE+2 NTRX set with the Megger Ferrolux Rx receiver. For the surge pulses it listens for, see the Megger SWG 500 surge wave generator or the Megger EZ-Thump 12 kV; for prelocation, the Megger Teleflex VX-PT V2 reflectometer. The digiPHONE+2 datasheet (PDF)PDF has the full specification.

Key features of the Megger digiPHONE+2 receiver

What the digiPHONE+2 gives a pinpointing crew:

• Combined acoustic and electromagnetic (magnetic pulse) fault pinpointing
• BNR (Background Noise Reduction) — up to 30 dB noise reduction while amplifying the fault signal by up to 20 dB
• DPP-SU ground sound sensor with selectable ground adapters and adjustable telescopic handle
• Colour display with cable compass, fault arrow and time-difference readout
• Automatic Proximity Mute and switchable 84 dB(A) acoustic limit for hearing protection
• Bluetooth and wired headphone support

Megger digiPHONE+2 receiver cable fault location applications

The digiPHONE+2 receiver is used to pinpoint faults on low-, medium- and high-voltage power cables after surge pre-location. The acoustic method locates the discharge point of the surge while the electromagnetic method confirms the position, making it ideal for utility cable fault teams and contractors who need fast, accurate pinpointing.

What’s in the Megger digiPHONE+2 Box

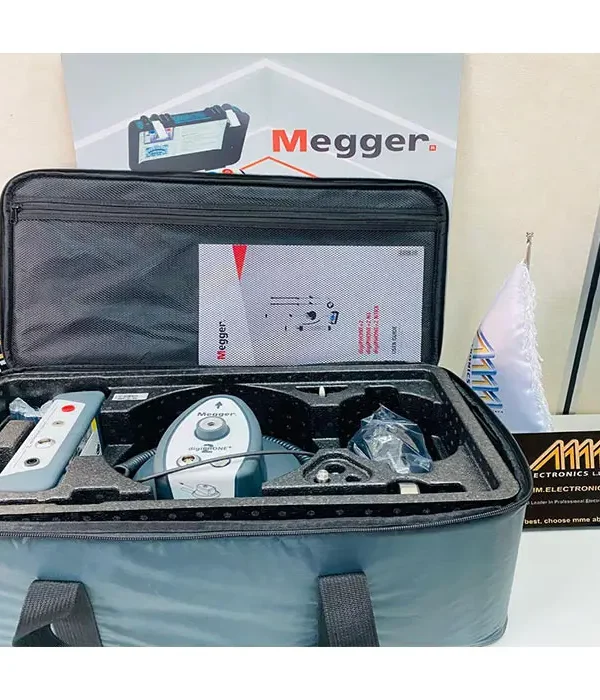

What comes with the digiPHONE+2 (1013124):

• Megger digiPHONE+2 shock wave receiver
• DPP-SU ground sound sensor with ground adapters and telescopic handle
• Sensor cable, 18 mm and 75 mm measuring tips, tripod, base plate and base plate with bitumen
• Stereo headphones, six 1.5 V batteries and transport bag with insert
• User guide

Megger digiPHONE+2 receiver, NT and NTRX sets

This is the digiPHONE+2 receiver. For a complete kit, the Megger digiPHONE+2 NT set adds ESG earth rods and Bluetooth ANC headphones, while the digiPHONE+2 NTRX set further adds the Ferrolux locating receiver and GPS coordinate storage.

Megger digiPHONE+2 questions

What cable crews ask before ordering:

• Does it work without a surge generator? No. It pinpoints the flashovers that a surge wave generator creates at the fault, so it is used together with one.
• What do the NT and NTRX sets add? The NT set (1013126) adds ESG earth rods for sheath faults by the voltage gradient method, plus Bluetooth ANC headphones. The NTRX set (1013168) also adds the Ferrolux receiver for cable tracing.
• What if there is no acoustic signal? Megger advises checking that the surge generator gives a stable flashover, staying on each spot for several pulses so noise reduction can adapt, and checking the measuring tip’s ground contact.

Why buy the Megger digiPHONE+2 from MME in the UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) supplies genuine Megger digiPHONE+2 cable fault location equipment across Dubai, Abu Dhabi and the wider UAE, with expert technical support. Contact us for pricing, configuration and application advice.
