Hioki CM3286 AC Clamp Power Meter Review
Hioki CM3286 AC Clamp Power Meter: Specs, Models & Price in UAE
600A True RMS clamp power meter for current, voltage, power, energy, and harmonics — full specifications, CM3286-50 vs -90 comparison, and buying guide
Quick answer: The Hioki CM3286 is a 600A True RMS AC clamp power meter that measures current, voltage, active/reactive/apparent power, power factor, phase angle, frequency, and energy in one handheld tool. Bluetooth and harmonics (1st–30th order) are enabled via the CM3286-90 (with Z3210 adapter bundled) and the free GENNECT Cross app. Safety rating: CAT IV 600 V / CAT III 1000 V.
Overview: One Tool, Many Electrical Answers
In real-world electrical work, speed and clarity matter. The Hioki CM3286 is built to reduce the need to carry multiple instruments by bringing together the core functions needed for field inspection, troubleshooting, and energy monitoring. Whether the task is checking load current, evaluating power consumption, observing phase behavior, or looking at harmonics, this clamp power meter delivers practical results quickly and reliably.
Its true RMS measurement capability handles non-sinusoidal waveforms more effectively than average-responding meters — especially important in modern facilities where variable-speed drives, switching power supplies, and nonlinear loads are common.
All-in-One Measurement
Measures current, voltage, power, power factor, phase angle, frequency, and energy values in a single device.
Field-Friendly Design
Compact body, φ46 mm clamp opening, and practical usability for daily maintenance and service work.
Connected Workflow
Optional Bluetooth via CM3286-90 or Z3210 adapter, with logging and reporting through the GENNECT Cross app.
What Makes the CM3286 Practical in the Field?
One of the strongest points of the CM3286 is its balance between capability and simplicity. The meter is not trying to be a laboratory power quality analyzer; instead, it focuses on delivering the measurements technicians most often need on site. That makes it especially useful during maintenance rounds, load checks, troubleshooting, and quick verification tasks — and a more affordable alternative to full power quality analyzers like the Hioki PQ3198 when you only need spot power measurements.
Why this matters
A good field meter should be fast to use, easy to read, and capable of handling common power-system questions without unnecessary complexity. The CM3286 fits that need by combining measurement depth with simple operation.

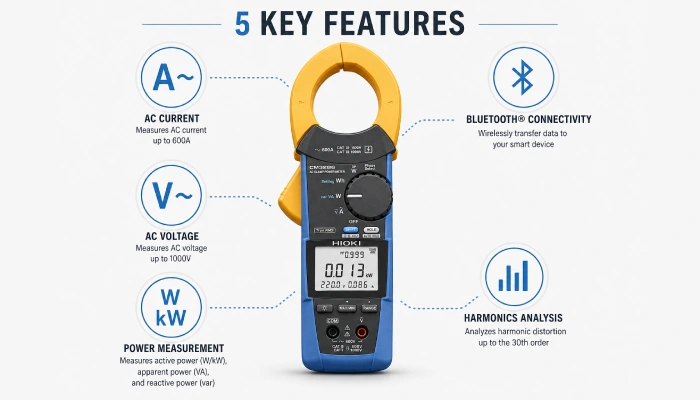

Key Features
- True RMS measurement for accurate AC readings
- AC current, AC voltage, power, power factor, phase angle, frequency, and energy
- Phase sequence check for three-phase systems
- Harmonics measurement (1st–30th order) via GENNECT Cross app with Bluetooth
- Inrush current measurement
- Auto Hold and Data Hold for easier field capture
- Max/Min/Avg and PEAK analysis functions

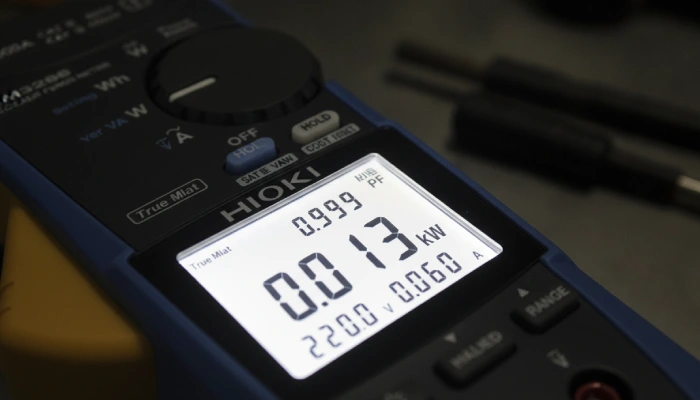

- Backlight and LED flashlight for low-light environments
- Compare function and relative value / zero adjust
- Auto power save to extend battery life
Broad Measurement Coverage
From load checks to power evaluation, the CM3286 covers a wide set of essential electrical measurements.

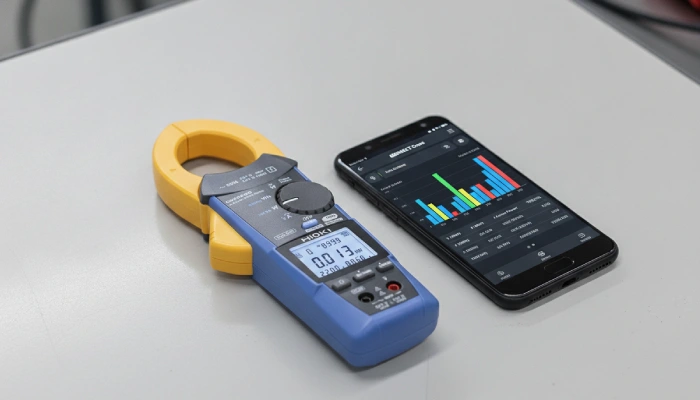

Optional Wireless Workflow
Bluetooth is available through CM3286-90 (Z3210 bundled) or the Z3210 adapter, with app integration via GENNECT Cross.
Built for Daily Use
A compact body, strong safety ratings, and a practical clamp size help it fit into routine industrial work.
Technical Specifications (Hioki CM3286 Datasheet)
| Specification | Details |
|---|---|
| AC Current | 42.00 A / 420.0 A, True RMS, 45 Hz to 1 kHz |
| AC Voltage | 600.0 V, True RMS, 45 Hz to 1 kHz |
| Resistance | 42.00 MΩ |
| Frequency | 42.00 Hz to 1.0000 kHz |
| Power Factor | 0.000 to 1.000 |
| Active Power | 420.0 kW |
| Reactive Power | 420.0 kVar |
| Apparent Power | 420.0 kVA |
| Phase Angle | -180.0 to 180.0° |
| Energy | 4.200 MWh / 4.200 Mvarh / 4.200 MVAh |
| Clamp Diameter | φ46 mm |
| Bluetooth / App Support | Available on CM3286-90 or with Z3210 adapter; supports GENNECT Cross |
| Harmonics | 1st–30th order via GENNECT Cross app (Bluetooth required) |
| Power Supply | 2 × LR03 alkaline batteries |
| Continuous Operating Time | Approx. 170 h (alkaline), approx. 100 h with Z3210 installed |
| Dimensions | Approx. 62 W × 251 H × 39 D mm |
| Weight | Approx. 410 g with batteries |
| Safety Ratings | CAT IV 600 V, CAT III 1000 V |
| Applicable Standards | IEC 61010-related requirements, EN 61326 |
CM3286 vs CM3286-50 vs CM3286-90 vs CM3286-01: Which Model Should You Buy?
The Hioki CM3286 family has several order codes, and choosing the right one depends on whether you need Bluetooth connectivity out of the box. Here is how the models compare:
| Model | Bluetooth | Harmonics via App | Best For |
|---|---|---|---|
| CM3286 | No (adapter required) | With Z3210 | Basic power measurements on a budget |
| CM3286-50 | No (Z3210 sold separately) | With Z3210 | Users who may add wireless later |
| CM3286-90 | Yes — Z3210 included in box | Yes, ready to use | Energy audits & reporting workflows |
| CM3286-01 | Yes — built-in Bluetooth | Yes, ready to use | Older stock; app-based workflows without adapter |
Our recommendation: If you want the full wireless workflow — harmonic analysis, CSV/PDF reporting, and Excel direct input via GENNECT Cross — go for the CM3286-90 since the Z3210 adapter is bundled. If you only need current, voltage, and power spot checks, the base CM3286 is the most economical choice.
CM3286 vs Hioki 3280-10F: Power Meter or Clamp Meter?
A common question from UAE buyers: the CM3286 is a clamp power meter (measures power, PF, phase, energy), while the Hioki 3280-10F is a true RMS AC clamp meter for current and voltage only. If you need load checks, the 3280-10F is cheaper; if you need energy audits and power analysis, the CM3286 is the right tool. See our full Hioki 3280-10F review for details.

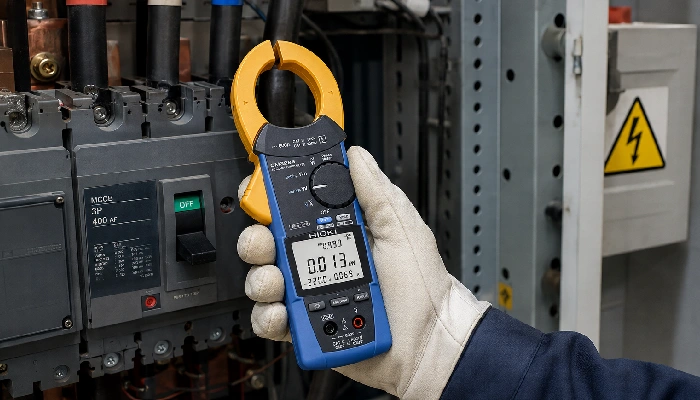

Typical Applications
Electrical maintenance
Troubleshooting loads, verifying voltage, and checking current draw.
Energy audits
Estimating power usage and identifying inefficient operating conditions.
Industrial monitoring
Assessing three-phase loads and observing operating behavior.
Service and inspection
A practical tool for quick field checks and documentation.
Three-phase analysis
Supports phase-related checks and balanced system power estimation.
Harmonic observation
1st–30th order analysis when paired with the wireless/app workflow.
Why Choose the Hioki CM3286?
- Practical all-in-one measurement: reduces the need for multiple instruments.
- Field usability: compact form factor, simple operation, and useful display functions.
- Strong electrical coverage: current, voltage, power, PF, phase, frequency, and energy.
- Good safety profile: CAT IV 600 V / CAT III 1000 V for demanding environments.
- Expandable workflow: wireless/app support on compatible configurations for easier data handling.
Final Verdict
The Hioki CM3286 is a dependable clamp power meter for professionals who need a capable, field-ready instrument with broad AC measurement coverage. It brings together the essential functions needed in electrical maintenance and energy work, while remaining compact and practical to carry and use.
If you need a meter that handles current, voltage, power, power factor, phase angle, frequency, energy, and harmonics workflows, the CM3286 is a strong choice. For a complete wireless reporting package, choose the CM3286-90 with the Z3210 adapter bundled. You can browse the full range in our Hioki brand store or compare with our top 5 Hioki multimeters review.
Need Price & Stock Availability in the UAE?
Contact our sales team for current availability, official quotation, and delivery details for the Hioki CM3286 — including CM3286-50 and CM3286-90 variants.
Get Price & Stock on WhatsApp / استعلام السعر والتوفر واتساب
Call: 04 447 6031
Can the CM3286 measure three-phase power?
Yes. It estimates balanced three-phase 3P/3W and 3P/4W power from a single measurement, with on-screen wiring guides. Unbalanced systems require sequential measurements.
Does the Hioki CM3286 measure harmonics
Yes, but not on the device display alone. Harmonic level, content percentage, and THD for voltage and current (1st to 30th order) are measured through the free GENNECT Cross app, which requires Bluetooth via the CM3286-90/Z3210 or the built-in Bluetooth of the CM3286-01.
What is the difference between CM3286-50 and CM3286-90?
The meters are identical — the only difference is that the CM3286-90 comes bundled with the Z3210 Bluetooth wireless adapter, while the CM3286-50 requires buying the adapter separately.
