Hioki 3280‑10F Review: Compact 1000A AC Clamp Meter for Everyday Electrical Testing
The Hioki 3280‑10F AC Clamp Meter is designed exactly for this purpose. Built with a compact pocket‑size body and a robust structure,
this clamp meter provides reliable electrical measurements while remaining easy to carry and operate in tight workspaces
is a practical instrument for maintenance engineers, electricians, and service technicians who require a dependable diagnostic tool.

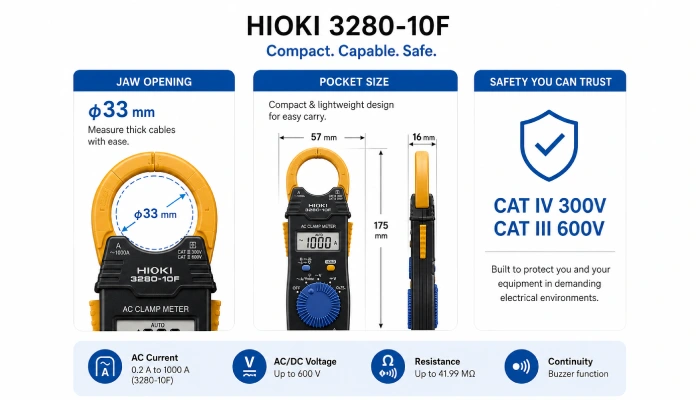

Key Features of Hioki 3280‑10F
- Pocket‑size compact design for easy portability
- AC current measurement up to 1000 A
- Optional flexible current sensor for measurements up to 4200 A AC
- Wide operating temperature range from -25 °C to 65 °C
- Durable construction tested for a 1‑meter drop onto concrete
- L‑shaped fixed clamp tip for easier access in tight electrical panels
- Large clamp opening of φ33 mm
Measurement Capabilities
The Hioki 3280‑10F offers several essential electrical measurement functions used in everyday electrical inspection and maintenance.
| Measurement | Range | Accuracy | Frequency Characteristics |
|---|---|---|---|
| AC Current | 42.00 A / 420.0 A / 1000 A | ±1.5% rdg. ±5 dgt. | 50 to 60 Hz |
| AC Voltage | 4.200 V to 600 V (4 ranges) | ±1.8% rdg. ±7 dgt. | 45 Hz to 500 Hz |
| DC Voltage | 420.0 mV to 600 V (5 ranges) | ±1.0% rdg. ±3 dgt. | — |
| Resistance | 420.0 Ω to 42.00 MΩ (6 ranges) | ±2.0% rdg. ±4 dgt. | — |
| Continuity Check | 420.0 Ω | ±2.0% rdg. ±4 dgt. | Buzzer threshold: 50 Ω ±40 Ω |

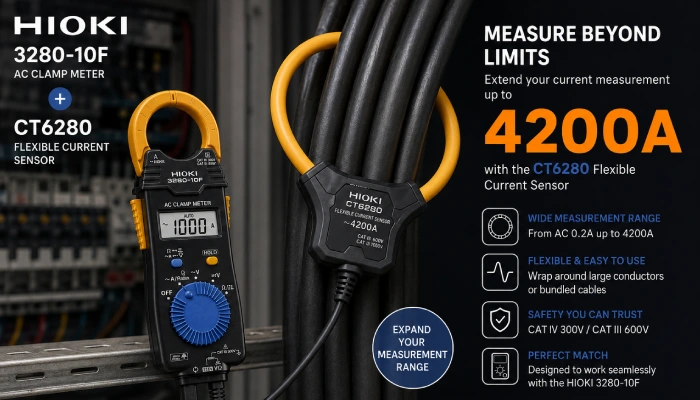

Flexible Current Measurement up to 4200 A
For applications requiring measurement of very high currents, the Hioki 3280‑10F can be used with an
optional AC flexible current sensor. This accessory enables current measurements up to
4200 A AC and supports large conductors with a sensor loop diameter of φ130 mm.
Designed for Real‑World Electrical Work
The clamp meter is engineered for practical field conditions. Its rugged mechanical structure allows it to withstand
accidental drops from a height of 1 meter onto a concrete surface. Combined with a wide operating temperature range
from -25 °C to 65 °C, the instrument remains reliable in both harsh outdoor environments and demanding industrial settings.

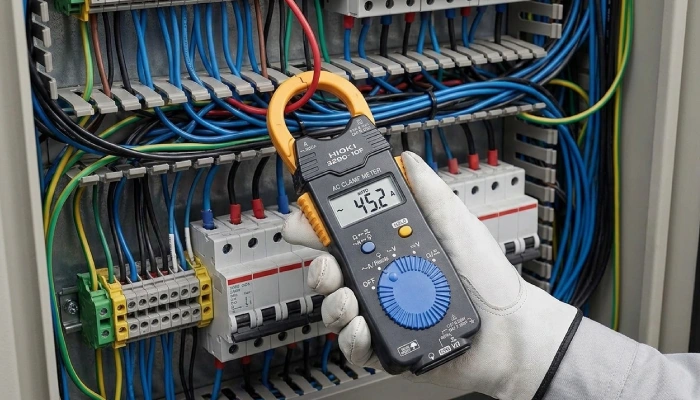

The L‑shaped clamp tip design also improves accessibility when measuring conductors inside crowded electrical panels
or tight installation spaces.
Safety Ratings
- Jaw: CAT IV 300 V / CAT III 600 V
- Voltage measurement terminal: CAT III 300 V / CAT II 600 V
Hioki 3280-10F vs Hioki CM3286: Pocket Clamp Meter vs Handheld Power Meter
While both instruments are premier Japanese-engineered tools, they are designed for entirely different testing scopes. The 3280-10F is an ultra-compact pocket meter for rapid routine current and continuity checks, whereas the Hioki CM3286 AC Clamp Power Meter is a multi-functional power analyzer capable of measuring single-phase and balanced three-phase power, power factor, phase angle, and detecting phase sequence.
| Feature / Capability | Hioki 3280-10F (Pocket Clamp) | Hioki CM3286 (Clamp Power Meter) |
|---|---|---|
| Primary Function | AC Current, AC/DC Voltage, Resistance | Power Analysis (kW, kVA, kVAR), Current, Voltage |
| AC Current Range | 42.00 A to 1000 A (up to 4200 A with CT6280) | 0.060 A to 600.0 A (up to 1000 A peak) |
| Measurement Method | Mean Rectified (Average responding) | True RMS |
| Power & Power Factor (PF) | No | Yes (Active, Reactive, Apparent + PF) |
| Phase Detection / Sequence | No | Yes (Phase order & phase angle) |
| Wireless Data (Bluetooth / GENNECT Cross) | No | Yes (CM3286-01 model includes Bluetooth) |
| Jaw Opening Diameter | φ 33 mm (Ultra-slim profile: 9.5 mm) | φ 46 mm (Heavy-duty clamp) |
| Safety Category | CAT IV 300 V, CAT III 600 V | CAT IV 600 V, CAT III 1000 V |
| Weight & Portability | 100 g (Pocket size) | 450 g (Industrial handheld) |
| Target Audience & Application | Electricians needing an everyday, pocket-friendly meter for fast current audits. | Energy auditors, facility engineers measuring energy consumption & power theft. |
Conclusion
The Hioki 3280‑10F AC Clamp Meter combines compact size, mechanical durability, and practical measurement capability
in a single instrument. With AC current measurement up to 1000 A, voltage and resistance measurement functions, and optional flexible
current sensing up to 4200 A, it provides a versatile solution for electrical maintenance, troubleshooting, and inspection tasks.
Its pocket‑size design, wide operating temperature range, and rugged construction make it a dependable clamp meter for
professionals who require a reliable tool for everyday electrical measurements.
Need Price & Stock Availability?
Contact our sales team for current availability, quotation, and delivery details for the Hioki 3280‑10F.
Get Price & Stock on WhatsApp / استعلام السعر والتوفر واتساب
حتى إذا لم يكن المنتج موجودًا على الموقع، سيتواصل فريق المبيعات بسرعة.
Call: 04 447 6031
Is the Hioki 3280-10F a True RMS clamp meter
No. The 3280-10F uses a mean-rectified (average-sensing) measurement method, which is highly accurate for standard 50/60 Hz sinusoidal loads. If your maintenance work involves variable frequency drives (VFDs), inverters, or distorted electrical waveforms, we recommend the Hioki 3280-20F True RMS model instead.
Can the Hioki 3280-10F measure DC current
No, the jaw is designed for AC current measurement only (up to 1000A). However, the device can measure DC voltage up to 600V using the provided test leads. For DC current measurement (such as solar or automotive applications), please browse our Hioki DC clamp meter series.
How thin is the jaw profile of the Hioki 3280-10F
The core jaw thickness is just 9.5 mm with a conductor diameter of φ 33 mm, allowing easy clamping in ultra-crowded electrical distribution panels and narrow cable runs where standard clamps cannot fit.
