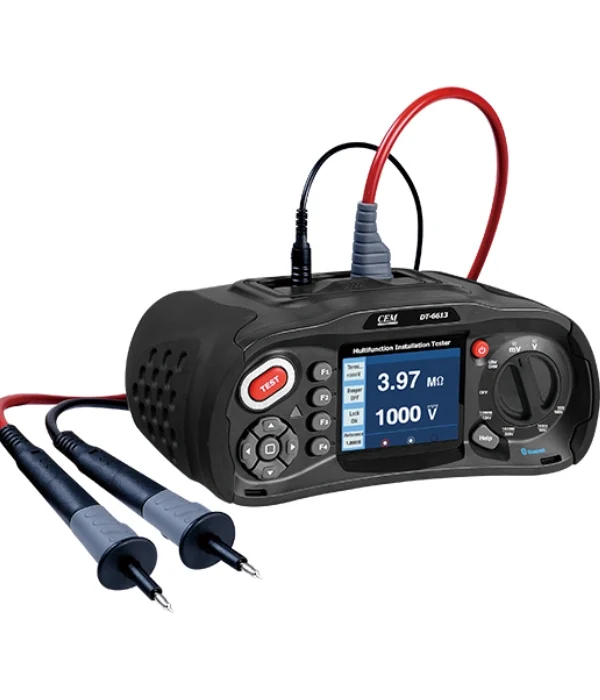

CEM DT-6613 Insulation with Low Ohm Tester

The CEM DT-6613 Insulation with Low Ohm Tester is an advanced tool that integrates the functionality of a digital insulation tester within a full-featured, compact, and handheld unit, designed to deliver unparalleled versatility for both troubleshooting and preventive maintenance tasks. This multifunctional device is equipped to handle a wide range of measurements, making it an essential tool for professionals.

One of the key features of the CEM DT-6613 is its ability to perform insulation resistance measurements across a broad spectrum, from 125V to 1000V, and can measure resistance up to 1000MΩ. This allows for flexibility in testing various types of electrical equipment and insulation materials.

The device boasts a large digital display that supports 4000 counts, enhancing readability. This display is complemented by a bargraph and backlight, ensuring visibility in diverse working environments, whether in bright sunlight or dimly lit areas. The inclusion of MAX/MIN, PEAK, relative value, and data hold functions for DC/AC voltage measurements enhances its utility, providing detailed insights into the voltage conditions of the system being tested.

Further enhancing its diagnostic capabilities, the CEM DT-6613 includes a polarization index measurement (PI) feature, which is crucial for assessing the integrity of insulation in electrical machines and power transformers. The auto-ranging and timer measurement functions simplify operations by adjusting measurement ranges automatically and timing the duration of tests for consistent results.

For safety and convenience, the device indicates both the output voltage and the discharge voltage. A voltage output warning function alerts users to potentially dangerous voltages, increasing the safety of operations. The tester also includes an automatic power-off feature to conserve battery life and a battery check function to ensure the device is always ready for use.

Designed to meet high safety standards, the CEM DT-6613 adheres to the IEC61010-1 CAT IV 600V safety standard, offering robust protection against voltage spikes and surges. This makes it suitable for use in high-voltage environments and for applications that demand the highest safety measures.

CEM DT-6613 Insulation with Low Ohm Tester Specifications:

Specifications
FunctionInsulation resistanceVoltageResistance
Range125V250V500V1000VAC/DCVAC/DC mV5VDC Output
Measuring

range(Auto ranging)

0.125-1000MΩ0.250-1000MΩ0.500-1000MΩ1.000-1000MΩ0-600.0V (50-1kHz)0-500.00mV  (50-1kHz)0-20.00Ω

20.0-200.0Ω 200-2000Ω

Accuracy±3%rdg±2dgt±1.5%rdg±5dgt±1.5%rdg±3dgt
Short Circuit Current1mA approx
Rated test Current(at load Resistance)1mA@load 125kΩ1mA@ load 250kΩ1mA@ load 500kΩ1mA@ load 1MΩ
Open circuit voltage125VDC/+10%-0%250VDC/+10%-0%500VDC/+10%-0%1000VDC/+10%-0%
Continuity checkBuzzer sounds at 50Ω
Display4000 Counts
Current consumptionAbout 30mA
Safety standardIEC 61010-1 CATⅣ 600V Pollution Degree 2
Power supplyDC 12V: 8 x 1.5V”AA” batteries
AccessoriesTest leads, Instruction Manual and 120V/250V AC adaptor
