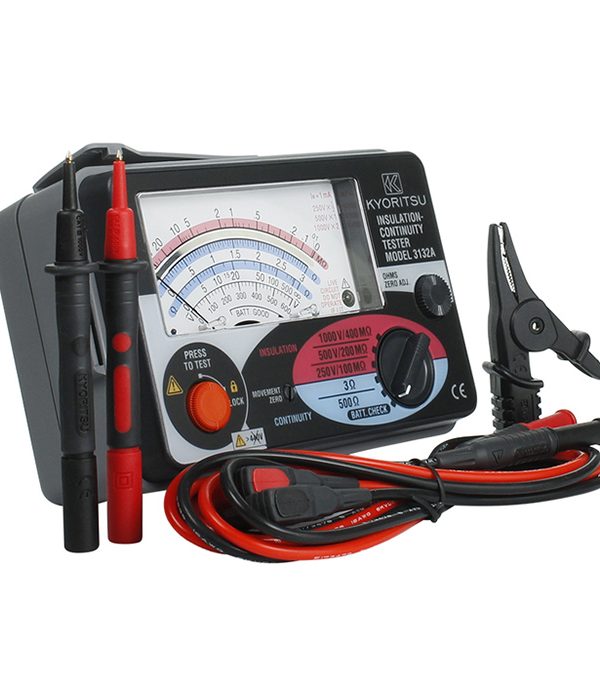

Kyoritsu KEW 3132A Analogue Insulation and Continuity Tester
Brand:
Kyoritsu
SKU:
3902
The Kyoritsu 3132A is an industrial analogue insulation and continuity tester supplied by Mohammad Mahdi Electronics (MME) across the UAE and GCC, engineered for high-precision 250V, 500V, and 1000V DC testing up to 400MΩ alongside 200mA continuity measurement. Certified to IEC 61010-1 CAT III 600V and IP54 dust/drip-proof standards, it delivers instantaneous needle-response diagnostics for switchgear, motors, and distribution panels compliant with DEWA, SEWA, and ADDC requirements.
- Triple Voltage Ranges: 250V (100MΩ), 500V (200MΩ), 1000V (400MΩ) with ±5% indicated accuracy.
- High-Current Continuity: 210mA DC minimum test current per IEC 61557-4 standards.
- Active Circuit Protection: Visual neon lamp indicator plus acoustic buzzer warning for energized lines (>30V AC).
- GCC Climate Resilience: IP54 shock-resistant casing built for high-temperature (>50°C) and high-humidity desert environments.
- Automatic Capacitive Discharge: Discharges cable and motor winding capacitance immediately upon test release.
- Secure Purchase
- Fast Delivery
- Genuine Guarantee
- Online Payment
Description
Engineering Overview: Why Choose the Analogue Kyoritsu 3132A?
Digital insulation meters frequently experience unstable readings and microprocessor lag under high-electromagnetic interference; the Kyoritsu 3132A resolves this with direct electromechanical needle response.
- Instantaneous Trend Analysis: The taut-band analogue pointer shows rapid insulation leakage trends and dielectric absorption rates in real time.
- Shock Hazard Prevention: Built-in automatic circuit discharge neutralizes stored electrical charges in cables and motor windings post-test.
- Low-Resistance Bond Integrity: 210mA test current immediately verifies earth continuity and breaks through surface oxidation on busbar terminals.
- Operator Safety First: Neon lamp and acoustic buzzer trigger before test initiation if hazardous line voltages exceed 30V AC.
Field Engineering Recommendation:
Before performing 1000V DC dielectric stress checks on critical motor windings or subsea cabling, review our comprehensive technical walkthrough on
electrical insulation testing standards, polarization index (PI), and dielectric absorption ratios (DAR)
to prevent premature insulation breakdown during GCC utility handovers.
Technical Specifications & GCC Utility Compliance
The KEW 3132A strictly adheres to IEC standards and satisfies testing mandates enforced by DEWA, SEWA, ADDC, and Saudi Aramco inspection engineers.
| Parameter / Feature | Technical Specification | Standard & Compliance Value |
|---|---|---|
| Test Voltages | 250V / 500V / 1000V DC | IEC 61557-2; covers sub-distribution, 400V 3-phase wiring, and machinery windings. |
| Insulation Resistance | 100MΩ / 200MΩ / 400MΩ (Mid: 1/2/4MΩ) | ±5% of indicated value on guaranteed ranges (0.1 to 40MΩ). |
| Continuity Testing | 3Ω / 500Ω (Mid-scale: 1.5Ω / 20Ω) | IEC 61557-4; 210mA DC min short-circuit current meets international bonding standards. |
| AC Voltage Scale | 0 to 600V AC (Linear Scale) | ±5% scale length; verifies de-energized status directly before applying DC test. |
| Safety Categories | CAT III 600V, Pollution Degree 2 | IEC 61010-1, IEC 61010-2-034 certified for industrial distribution boards. |
| Ingress Protection | IP54 Dust & Drip-Proof | IEC 60529; seals sensitive electronics against fine sand ingress and humidity. |
Field Experience & GCC Deployment Scenarios
Engineered for continuous operation in extreme Gulf ambient temperatures up to 50°C without thermal measurement drift.
- Industrial Motor & Transformer Diagnostics: In heavy industrial zones across JAFZA, ICAD, and Jubail, testing 3-phase motor stators at 1000V DC identifies thermal insulation degradation instantly.
- 0.6/1kV Cable Commissioning: Verifies pre-energization insulation between conductors and outer armor to ensure values exceed local authority thresholds (>100MΩ).
- Mechanical Zero Adjustment: Short Model 7122B test leads prior to continuity checks and turn the mechanical screw to calibrate exactly to 0Ω, eliminating lead resistance offset.
- Battery Voltage Diagnostics: If the pointer fails to deflect during the open-circuit test, swap out all 6 × AA batteries to prevent inaccurate low-resistance alarms caused by terminal voltage drop.
Kyoritsu Benchmark Matrix: 3132A vs. Sibling Models
Compare the analogue 3132A against advanced analogue and digital alternatives to match your project specifications.
| Feature | KEW 3132A (Focus Model) | KEW 3131A (Advanced Analogue) | KEW 3005A (Digital Entry) | Fluke 1507 (Digital Multi) |
|---|---|---|---|---|
| Display Type | Analogue Needle | Analogue Needle | Digital LCD + Bar Graph | Digital Backlit LCD |
| Test Voltages | 250V / 500V / 1000V | 250V / 500V / 1000V | 250V / 500V / 1000V | 50V to 1000V (5 ranges) |
| Max Range | 400 MΩ | 400 MΩ | 2000 MΩ | 10 GΩ |
| Continuity Current | ≥ 210 mA DC | ≥ 200 mA DC | ≥ 200 mA DC | ≥ 200 mA DC |
| IP Ingress Rating | IP54 | IP54 | IP54 | IP40 |
| Safety Tier | CAT III 600V | CAT III 600V | CAT III 300V | CAT IV 600V |
Kyoritsu KEW 3131A Analogue Insulation and Continuity Tester
Call for price
The Kyoritsu KEW 3131A is a rugged analogue insulation and continuity tester with an easy-to-read needle display, offering 250, 500 and 1000 V insulat...
More info
Kyoritsu KEW 3005A Digital Insulation and Continuity Tester
Call for price
The Kyoritsu KEW 3005A is a digital insulation and continuity tester offering 250, 500 and 1000 V insulation test voltages (to 2000 MOhm), 200 mA cont...
More info
Fluke-1507 Insulation Resistance Tester
Call for price
Why the Fluke 1507 is the one to take to a motor:
- Run 50 V to 1000 V insulation tests out to 10 GΩ
- Get polarization index and...
What’s in the Box? (OEM SKU Inventory)
Each factory-sealed package provided by MME contains genuine Japanese testing components ready for field commissioning:
- 1 × Kyoritsu KEW 3132A Analogue Insulation and Continuity Tester
- 1 × Model 7122B Test Lead Set (Red probe/Black alligator clip assembly)
- 1 × Model 9074 Cord and probe storage pouch
- 1 × Model 9121 Heavy-duty adjustable shoulder strap
- 2 × Model 8923 Fast-acting ceramic fuses (0.5A / 600V) (1 factory-installed, 1 spare)
- 6 × R6 (AA) 1.5V heavy-duty manganese dry cells
- 1 × Factory Instruction Manual (Comprehensive English & Arabic editions)
Procurement Guarantee & Calibration via MME
Protect your engineering assets against gray-market counterfeits. Mohammad Mahdi Electronics ensures verified, original test equipment sourced through legitimate global distribution channels.
- Verified Genuine Stock: Supplied by Mohammad Mahdi Electronics Trading LLC (MME) — an independent specialist and premier stockist of industrial test & measurement instruments in Dubai, UAE.
- 100% Original Products: Every unit is brand-new, factory-sealed, and supplied with genuine serial numbers verifiable against OEM packaging standards.
- MME Technical Warranty: Backed by MME’s 12-month commercial warranty covering manufacturing defects, supported directly from our Dubai technical facility.
- Traceable Calibration Support: Independent ISO/IEC 17025 accredited third-party calibration certificates available upon request prior to site handover.
- Export & GCC Dispatch: Ready stock in Dubai with rapid customs clearance and fast delivery across UAE, Saudi Arabia, Oman, and wider GCC projects.
Does the Kyoritsu 3132A have a continuity test function?
Yes, it features a low-resistance continuity test with an audible buzzer for fast and easy circuit verification.
What type of display does the Kyoritsu 3132A use?
It features an analogue meter with a clear, easy-to-read scale, making it ideal for quick visual readings without digital processing delays.
Why do engineers prefer the analogue 3132A over digital insulation testers?
The Kyoritsu 3132A provides instantaneous mechanical needle movement without microprocessor display lag. Engineers inspecting transformers, long cable runs, and variable-frequency drives rely on needle deflection dynamics to detect variable leakage currents and capacitive charging rates instantly.
What is the exact replacement fuse specification for Kyoritsu 3132A?
The 3132A requires exclusively Kyoritsu Model 8923 fast-acting ceramic fuses (0.5A / 600V, 6.35 × 32mm). Standard glass electronics fuses lack high breaking capacity and void the instrument’s IEC 61010-1 CAT III 600V safety certification.
Is the Kyoritsu 3132A approved for DEWA, SEWA, and ADDC project compliance?
Yes, the 3132A fully satisfies all DEWA, SEWA, and ADDC installation inspection standards. It delivers a certified 210mA minimum short-circuit test current compliant with IEC 61557-4 and features 250V/500V/1000V DC test ranges under IEC 61557-2.
Specifications
Specifications
| PARAMETER | SPECIFICATION |
|---|---|
| Product type | Compact analogue insulation and continuity tester |
| Insulation test voltages | 250 / 500 / 1000 V |
| Insulation ranges | 100 / 200 / 400 MΩ |
| Insulation accuracy | ±5% of indicated value; nominal current 1 mA DC min |
| Continuity ranges | 3 Ω / 500 Ω |
| Continuity test current | approx. 200 mA DC min |
| AC voltage | 0 to 600 V |
| Display | Analogue needle meter |
| Ingress protection | IP54 |
| Safety rating | IEC 61010-1 CAT III 600 V |
| Power | 6 x AA (R6, 1.5 V) |
| Dimensions | 106 × 160 × 72 mm |
| Weight | approx. 560 g |
Datasheet
Datasheet
Manual
Manual
