Kyoritsu 3005A Digital Insulation Continuity Tester
2 Comments
Ensure precise 1000V measurements with the Kyoritsu 3005A Continuity Tester. Ideal for electricians and engineers.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Kyoritsu 3005A Insulation Tester
The megger kyoritsu 3005a is a highly regarded instrument widely used in electrical circuits. The kyoritsu 3005a digital insulation tester effectively detects insulation resistance and circuit continuity, making it an essential tool for electricians, engineers, and technicians. This tester features a bar graph display for insulation resistance, along with the AC voltage value and a flashing symbol for added clarity.

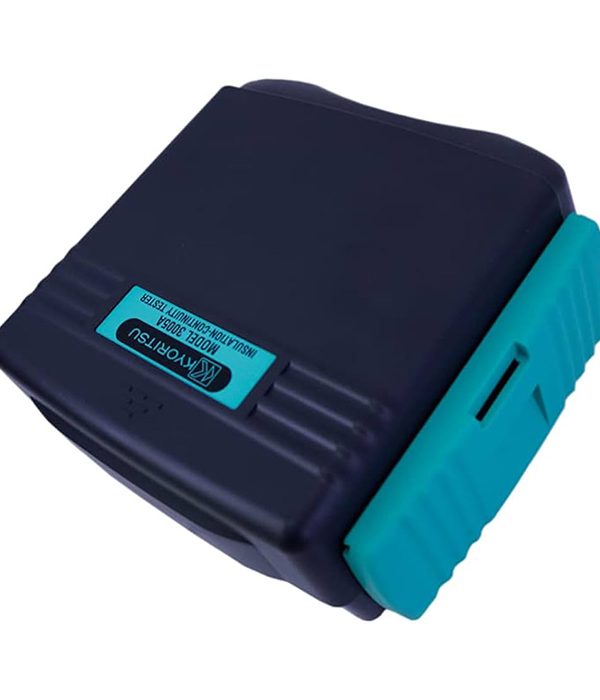

Kyoritsu 3005A Digital Insulation Continuity Tester
kyoritsu 3005a digital insulation continuity tester
One of the key advantages of the Kyoritsu Insulation Tester 3005a is its remarkable adaptability. Capable of measuring insulation resistance up to 2000MΩ and continuity up to 200Ω, kyoritsu 3005a insulation continuity tester is versatile enough to handle a wide range of circuit testing needs. Additionally, kyoritsu model 3005a features an automated discharge mode that safely discharges capacitive charges, enhancing its functionality and safety.
3005a digital insulation continuity tester 600v
The safety features of the 3005a Kyoritsu are another plus. Even in continuous mode, this gadget can detect voltage, reducing the risk of electric shock. The tester also has a CAT IV 600V safety rating, making it appropriate for usage in demanding situations.
Kew 3005a Enhanced Safety Features
Electrical testing demands top-tier safety, and the insulation continuity tester kyoritsu 3005a is engineered with built-in safeguards to protect both the user and the equipment. The automatic discharge function eliminates residual voltage after testing, reducing the risk of accidental shocks. The live circuit warning system alerts users if a voltage greater than 30V is detected, preventing dangerous test conditions. Additionally, insulation tester kyoritsu 3005a meets CAT III 600V safety standards, ensuring safe operation in high-energy environments. Its durable construction makes it a reliable tool for long-term professional use.
Datasheet
Datasheet
Manual
Manual
specifications
specifications
Technical Specifications
| Category | Specification |
|---|---|
| Insulation Resistance | Test voltage: 250/500/1000V Measuring ranges (Mid-scale value): 20/200/2000MΩ Output voltage on open circuit: Rated test voltage +20%, -0% Nominal current: 1mA DC min. Output short circuit current: 1.5 mA DC approx. Accuracy: ±1.5%rdg±5dgt (20/200MΩ), ±10%rdg±3dgt (2000MΩ) |
| Continuity Test | Measuring ranges (Mid-scale value): 20/200/2000Ω Output voltage on open circuit: 7 – 12V DC Measuring current: 200mA DC min. Accuracy: ±1.5%rdg±5dgt (20Ω), ±1.5%rdg±3dgt (200/2000Ω) |
| AC Voltage | AC voltage range: 0 – 600V AC Accuracy: ±5%rdg±3dgt |
| General | Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-031, IEC 61010-2-034, IEC 61557-1,2,4 IP Rating: IEC 60529-IP54 EMC Standard: IEC 61326-1 Power source: R6 (AA) (1.5V) × 8 Dimensions: 167(L) × 185(W) × 89(D)mm Weight: Approx. 970g Accessories: 7122B (Test leads), 9074 (Cord case), 8923 (Fuse[0.5A/600V]) × 1 (included), 1 (spare), R6 (AA) × 8, 9121 (Shoulder strap), Instruction Manual |
