Kyoritsu Kew 3022A

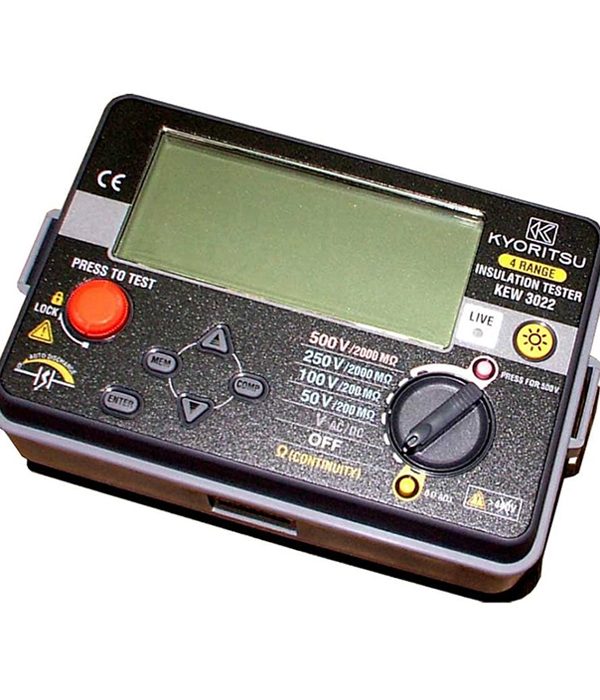

Kyoritsu Digital Insulation | Continuity Tester kew 3022A

Offers 4 voltage ranges of 50, 100, 250, and 500 V and is used as a continuity tester and for AC voltage measurement. Additionally, this multifunction digital insulation tester delivers fast test results, 2.5 times faster compared to its preceding models.

Kyoritsu 3022A Specifications:

• Test voltage:50/100/250/500V
• Measuring range<br>(Auto range):4.000/40.00/200.0MΩ (50/100V),4.000/40.00/400.0/2000MΩ (250/500V)
• First effective measuring range:0.2 – 20MΩ (50/100V),0.2 – 40MΩ (250V),0.2 – 200MΩ (500V)
• Accuracy:5MΩ (50/100/250V),50MΩ (500V)
• The second effective measuring range lower:0.110 – 0.199MΩ
• Second effective measuring range upper:20.01 – 200.0MΩ (50/100V),40.01 – 2000MΩ (250V),200.1 – 2000MΩ (500V)
• Accuracy:±5%rdg±6dgt
• Rated current: DC 1 – 1.2mA
• Output short circuit current:1.5mA max
• Applicable standards: IEC 61010-1 CAT III 600V, IEC 61557-1,2,4, IEC 61326-1 (EMC), IEC 60529 (IP40)
• Power source:R6 × 6 or LR6 × 6
• Dimensions / Weight:105(L) × 158(W) × 70(D)mm / 600g approx.
