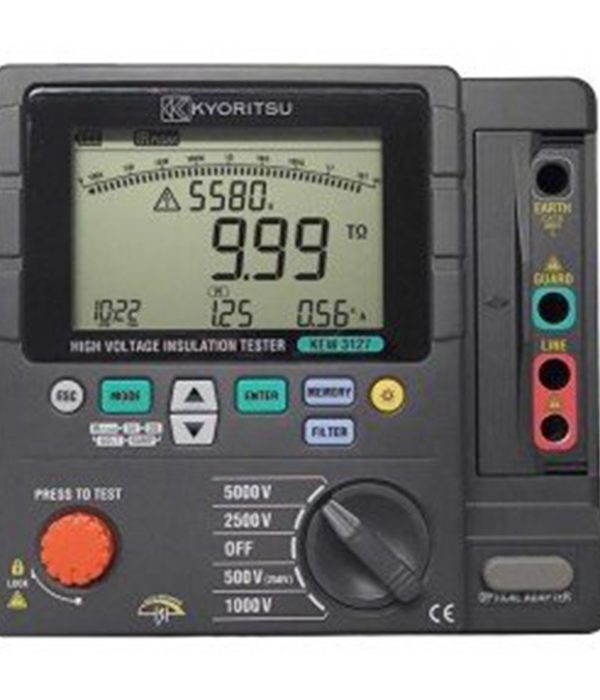

Kyoritsu KEW 3127 High Voltage Insulation Tester (5 kV)

Overview

The Kyoritsu KEW 3127 is a top-of-range diagnostic high-voltage insulation tester built to ensure the integrity and safety of electrical systems in demanding environments. It measures insulation resistance up to 10 TΩ with test voltages from 250 V to 5000 V and a strong 5 mA short-circuit current for fast charging of large capacitive loads. Beyond basic IR it performs a comprehensive set of diagnostic tests — polarization index (PI), dielectric absorption ratio (DAR), dielectric discharge (DD), step voltage (SV) and ramp testing in both breakdown and burn modes — plus capacitance and leakage-current measurement. Bluetooth wireless communication makes it easy to capture and share results, so it excels at both routine maintenance and detailed fault diagnosis.

Key Features

• Insulation resistance up to 10 TΩ; test voltages 250–5000 V.
• Strong 5 mA short-circuit current.
• Full diagnostics: IR, PI, DAR, DD, SV, RAMP (breakdown & burn).
• Capacitance and leakage-current measurement.
• Bluetooth communication; CAT IV 300 V / CAT III 600 V.

Applications

• Advanced insulation diagnostics of motors, transformers and cables.
• Condition monitoring and predictive maintenance of HV plant.
• Breakdown and burn testing for fault localization.

What’s in the Box

• Kyoritsu KEW 3127 high-voltage insulation tester
• Test leads with clips
• Hard carrying case
• Batteries / charger (as supplied)
• Instruction manual

Why buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Kyoritsu test and measurement equipment in the UAE. We offer genuine products, competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Download the datasheet
