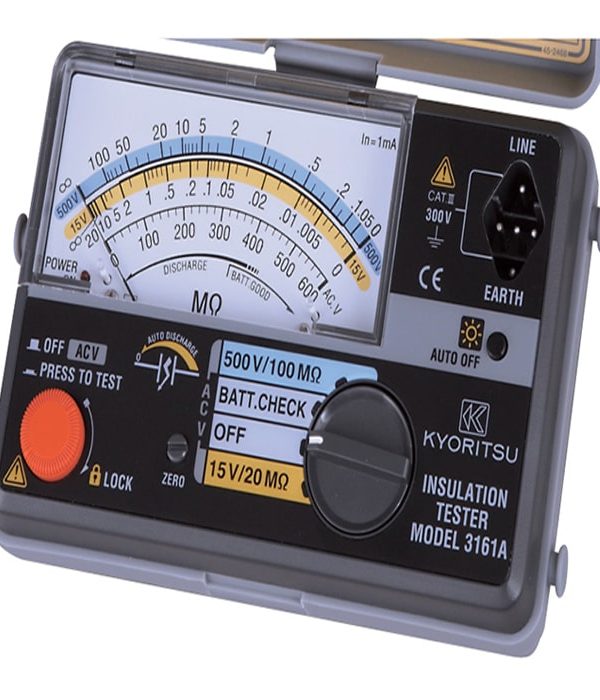

Kyoritsu 3161A Analogue Insulation Tester

Kyoritsu 3161A Insulation tester Key Feature:

  • Miniature lightweight insulation tester. It weighs only 340g(battery included),
    but carries full measurement functions.
  • Automatic discharge of circuit capacitance.
  • Test leads with remote control switch.
  • New robust housing case.
  • Back light function.
  • Neck strap for both hands operation

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 925 (excl.VAT)

10People watching this product now!

Kyoritsu 3161A Analogue Insulation Tester

Kyoritsu 3161A Analogue Insulation Tester a lightweight and miniature insulation tester from the manufacturer, Kyoritsu. It weighs only 340g and carries full measurement functions. Suitable for insulation testing with two insulation settings of 50V and 125V.

Kyoritsu 3161A Analogue Insulation Tester Specification:

  • DC Test Voltage: 15V/500V
  • Max. effective scale value: 20MΩ/100MΩ
  • Mid-scale value: 0.05MΩ/2MΩ
  • First effective measuring range: 0.005 – 2MΩ/ 0.1 – 50MΩ
  • Accuracy: ±5% of Indicated Value
  • Second effective measuring ranges: Measuring ranges other than above, 0 and ∞
  • Accuracy: ±10% of Indicated Value
  • AC voltage range: 600V
  • Accuracy: ±3% of Full Scale
  • Power source: R6 (AA) (1.5V) × 4
  • Included Accessories: 7149A (Remote control switch set)
    Neck Strap
    R6 (AA) × 4
    Instruction Manual
0 reviews

There are no reviews yet.

Be the first to review “Kyoritsu 3161A Analogue Insulation Tester”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.



Kyoritsu Corporation Since its founding in 1940, Kyoritsu has made customer satisfaction and providing high quality products and services their top priorities. State of the art electrical measurement technology products are the backbone of their company's business. Kyoritsu's wide line of testers has contributed to technological developments and industrial infrastructures worldwide.


Data Sheet
