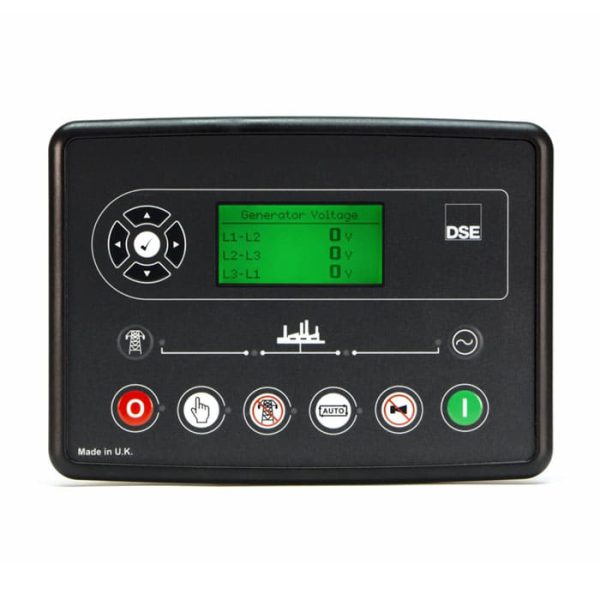

DEEPSEA 6120 MKIII Auto Mains Failure Control Module
Short Description:
Key Features
- Power save mode
- 3-phase generator sensing and protection
- 3-phase mains sensing and protection
- Automatic load transfer control
- Generator current and power monitoring
- Mains current and power monitoring
Product purchase
Call for Best Price 00971(04) 447 6031 00971(04) 344 9868
19
People watching this product now!
Terms of sending goods ›
Description
DEEPSEA 6120 MKIII Auto Mains Failure Control Module
The DeepSEA 6120 MKIII is an automatic power failure control module suitable for a wide range of single, diesel, or gas generator set applications. Monitoring a large number of engine parameters, the module displays warnings, shutdowns, and engine status information on the backlit LCD, illuminated LEDs, and remote PC.
Measurement and Technical Details
- Temperature Testing: Each sensor is pressure tested at multiple external temperatures ranging from -10°C to 50°C at Additel. This rigorous testing ensures fully temperature-adjusted accuracy.
- Performance Characterization: Individual coefficients are generated and stored in the gauge, characterizing its performance over the entire temperature-compensated range.
- IP67 Classification: The ADT681IS version of the gauge has an IP67 classification, making it dust and water-resistant, and submersible in up to 1 meter of water.
DEEPSEA 6120 Specifications
| Specification | Details |
| Maximum Operating Current | 260 mA at 12 V, 150 mA at 24 V |
| Voltage Range | +/- 0.5 V to 70 V |
| Maximum Standby Current | 145 mA at 12 V, 85 mA at 24 V |
| Digital Inputs A to H | Negative switching |
| Heated Display Variant | -40 °C to +70 °C, -40 °F to +158 °F |
| Charge Fail/Excitation Range | 0 V to 35 V |
| Output A & B (Fuel & Start) | 10 A DC at supply voltage |
| Auxiliary Outputs C, D, E, F, G & H | 2 A DC at supply voltage |
| Key Benefits | Provides multiple installation options |
| Key Benefits | Offers optimum flexibility for system expansion |
| Key Benefits | Ensures the module can be used with a wide number of engine types |
Additional information
| CONTINUOUS VOLTAGE RATING |
5 V for up to 1 minute ,8 V to 35 V Continuous |
|---|---|
| FREQUENCY RANGE |
3.5 Hz to 75 Hz |
| MAXIMUM OPERATING CURRENT |
260 mA at 12 V, 150 mA at 24 V |
| MAXIMUM PANEL THICKNESS |
8 mm |
| MAXIMUM STANDBY CURRENT |
145 mA at 12 V, 85 mA at 24 V |
| OUTPUT A (FUEL) |
10 A DC at supply voltage |
| PANEL CUT-OUT |
184 mm x 137 mm |
| VOLTAGE RANGE |
15 V to 415 V AC (Ph to N) ,26 V to 719 V AC (Ph to Ph) |
| size |
216 mm x 158 mm x 43 mm |
datasheet
datasheet
Specifications
Specifications
| Specification | Details |
| Maximum Operating Current | 260 mA at 12 V, 150 mA at 24 V |
| Voltage Range | +/- 0.5 V to 70 V |
| Maximum Standby Current | 145 mA at 12 V, 85 mA at 24 V |
| Digital Inputs A to H | Negative switching |
| Heated Display Variant | -40 °C to +70 °C, -40 °F to +158 °F |
| Charge Fail/Excitation Range | 0 V to 35 V |
| Output A & B (Fuel & Start) | 10 A DC at supply voltage |
| Auxiliary Outputs C, D, E, F, G & H | 2 A DC at supply voltage |
| Key Benefits | Provides multiple installation options |
| Key Benefits | Offers optimum flexibility for system expansion |
| Key Benefits | Ensures the module can be used with a wide number of engine types |
