HIOKI DIGITAL MULTIMETER DT4221

HIOKI DIGITAL MULTIMETER DT4221 KEY FEATURES

  • Achieving a high level of safety in a compact body and lightweight design
  • ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
  • Broad -10°C to 50°C (14°F to 122°F) operating temperature range
  • Resistance and diode testing functions omitted by design in pursuit of added safety



(1 customer review)
SKU:718

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

20People watching this product now!

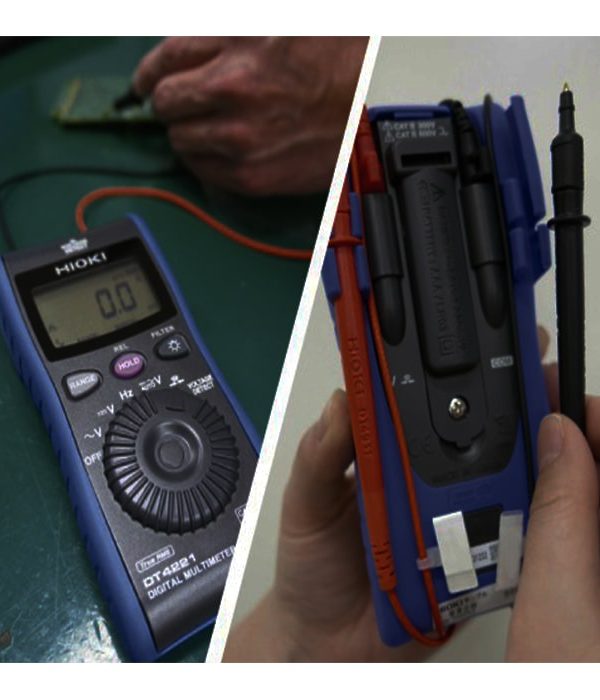

HIOKI Digital  Multimeter DT4221

The Hioki DT4200 Digital Multimeter Series includes a full portfolio of 9 types, ranging from professional to industrial to pocket meters, and offers extremely quick response times and safety features that raise the bar for electrical testing.

The DT4221 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth. Premier Pocket DMM with CAT IV 300 V, CAT III 600 V Safety.

For a comprehensive selection of digital multimeters from renowned brands like Hioki, Fluke, Kyoritsu, and PCE,.. and to compare their prices, we invite you to visit the MME website. Here, you can explore a wide range of options and make informed decisions based on your specific needs.

Related Products

When it comes to digital multimeters made for electrical measurements, the Hioki 4223 and UT 61D are two products that can be compared to the Hioki 4221.

  • The Hioki 4223, manufactured by Hioki, offers accurate and reliable measurements of voltage, current, resistance, capacitance, frequency, and temperature. It features a user-friendly interface, a clear display, and intuitive controls, making it easy to operate for professionals and technicians.
  • The UT 61D, on the other hand, is a digital multimeter manufactured by UNI-T. It also offers similar functionalities to the Hioki 4221, including voltage, current, resistance, capacitance, frequency, and temperature measurements.

HIOKI Digital Multimeter DT4221 Specifications

  • DC Voltage range: 600.0 mV to 600.0 V,  accuracy: ±0.5 % rdg
  • AC Voltage range:6.000 V to 600.0 V Basic accuracy 40 – 500 Hz: ±1.0 % rdg
  • Frequency range: 99.99 Hz (5 Hz or more) to 9.999 kHz  accuracy: ±0.1 % rdg
  • Continuity check :  [ON]25 Ω / [OFF]245 Ω or more
  • Voltage detection: 80 V to 600 V AC
  • Display: 4-digit LCD, max. 6000 digits, bar graph
  • Power supply : LR03 alkaline batteries ×1, Continuous use: 40 hours
  • Dimensions and mass: 72 mm (2.83 in)W × 149 mm (5.87 in)H× 38 mm (1.50 in)D,190 g
  • Accessories : Test lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1
5
1 review
1
0
0
0
0

1 review for HIOKI DIGITAL MULTIMETER DT4221

Clear filters
  1. Robert

    Does what it is advertised to do

Add a review

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Hioki

DATA sheet

Data Sheet

Specifications

Electrical Specifications
AC voltage range/resolution/accuracy

DC voltage range/resolution/Accuracy

Frequency range/resolution/Accuracy

99Hz to 9.9kHz

Mechanical and General Specifications
Dimensions

72mm × 137mm × 35mm

Power

Alkaline (LR03) battery ×1

More
Auto range

Continuity test

Backlight
