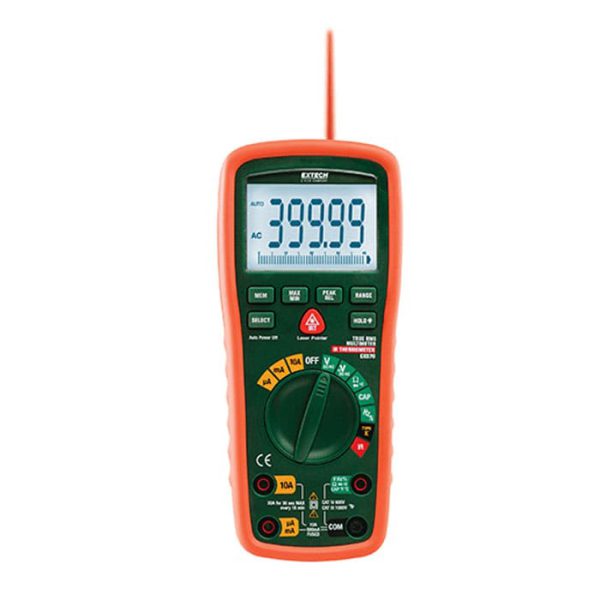

EXTECH EX570 True RMS MultiMeter with IR Thermometer

EXTECH EX570 12 Function True RMS Industrial MultiMeter with IR Thermometer

The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. The affordable EX570 offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with Category IV-600V and Category III-1000V safety ratings.

The EX570 measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include Min. /Max., Average, Hold, Relative, Peak Hold, and “quick-note” memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance-to-spot ratio).

EXTECH EX570 12 Function True RMS Industrial MultiMeter with IR Thermometer specifications:

• Basic Accuracy ±0.06%
• DC/AC Voltage 0.01mV to 1000V
• DC/AC Current 0.01µA to 20A
• Resistance 0.01Ω to 40MΩ
• Capacitance 0.001nF to 10,000µF
• Frequency 0.0001Hz to 40MHz
• Temperature (Type K/ non-contact IR) Type K: -50 to 1382°F (-45 to 750°C) / IR: -22 to 1022°F (-30 to 550°C)
• Field of View 30:1 ratio
• Duty Cycle 0.01 to 99.99%
• Diode (2.8V)/Continuity Yes
• Dimensions 7.25×3.25×2.25″ (184x83x57mm)
• Weight 12.3oz (349g)
