Description

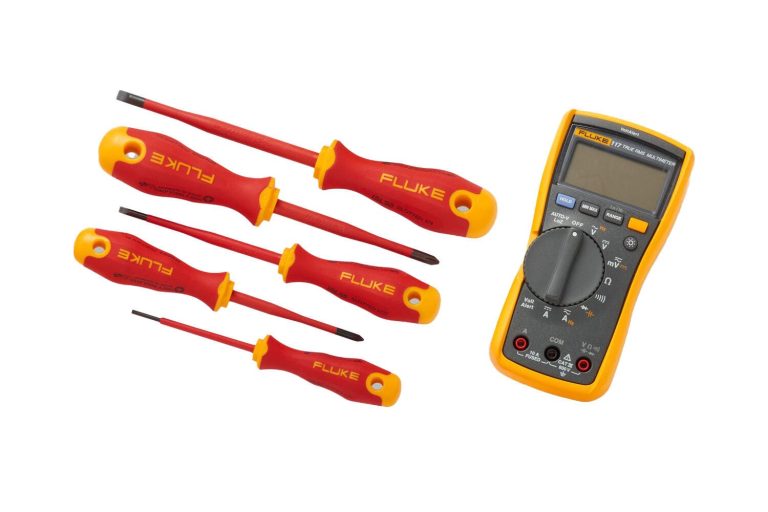

The Fluke 117 Electrician’s Multimeter plus Insulated Hand Tools Starter Kit is a comprehensive solution for electricians and technicians. This kit includes a 600V CAT III multimeter with 6kV surge protection, ensuring safe and accurate measurements.

With its 9V alkaline battery life of up to 400 hours, you can work for extended periods without interruptions. The insulated hand tools starter kit provides a set of essential tools for your daily tasks.

Fluke 117 Key Features

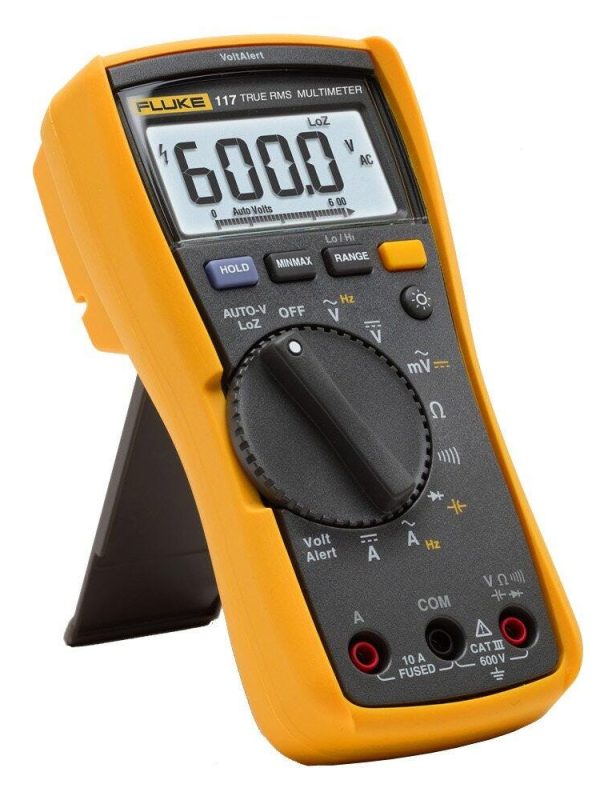

The Fluke 117 multimeter features a digital display with 6,000 counts, updating 4 times per second, and a bar graph with 33 segments, updating 32 times per second.

Maximum voltage between any terminal and earth ground: 600 V
Surge protection: 6 kV peak per IEC 61010–1
Display: Digital: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +60°C
Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
Battery life: 400 hours typical, without backlight

Who Needs the Fluke 117?

The Fluke 117 is designed for electricians, technicians, and engineers who require a reliable and accurate multimeter for their daily tasks.

With its comprehensive features and durable construction, the Fluke 117 is an essential tool for any professional in the electrical industry.

Fluke 117 Applications

Use for electrical circuit testing and troubleshooting
Measure voltage, current, and resistance in electrical systems
Test electrical insulation and continuity
Measure temperature and frequency in electrical systems
Use in electrical panel testing and maintenance
Measure electrical power and energy consumption

Why Buy Fluke 117 from MME?

At MME, we offer the Fluke 117 Electrician’s Multimeter plus Insulated Hand Tools Starter Kit at an affordable price, backed by a 3-year warranty.

Our team of experts is always available to provide support and guidance on the use and maintenance of the Fluke 117.

Fluke 117 Specifications

Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Battery type	9 volt Alkaline, NEDA 1604A / IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
DC volts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts^¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts^¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts^¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts^¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
Diode test	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
Lo-Z capacitance	Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
AC amps True RMS (45 Hz to 500 Hz)	Accuracy	1.5% + 3 20 A continuous overload for 30 seconds max
DC amps	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
DC amps	Accuracy	1.0% + 3 20 A continuous overload for 30 seconds max
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% + 2
All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years
