Description

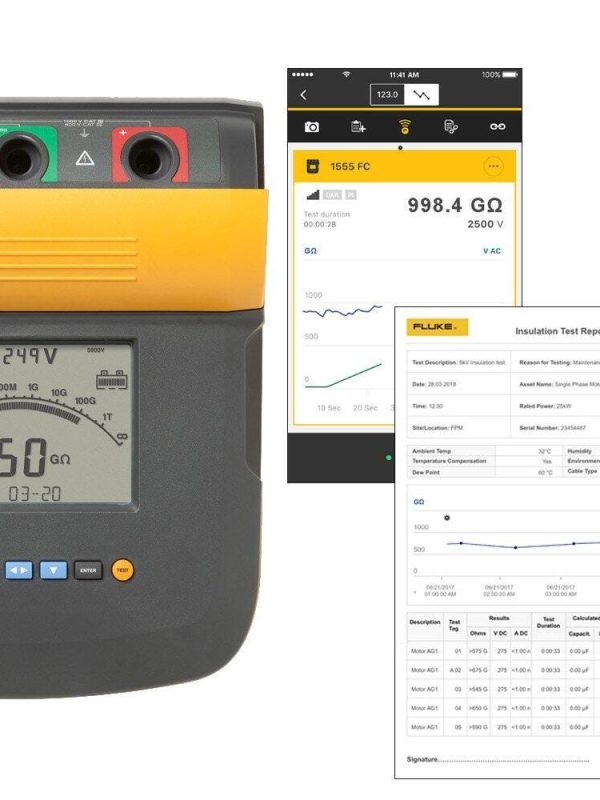

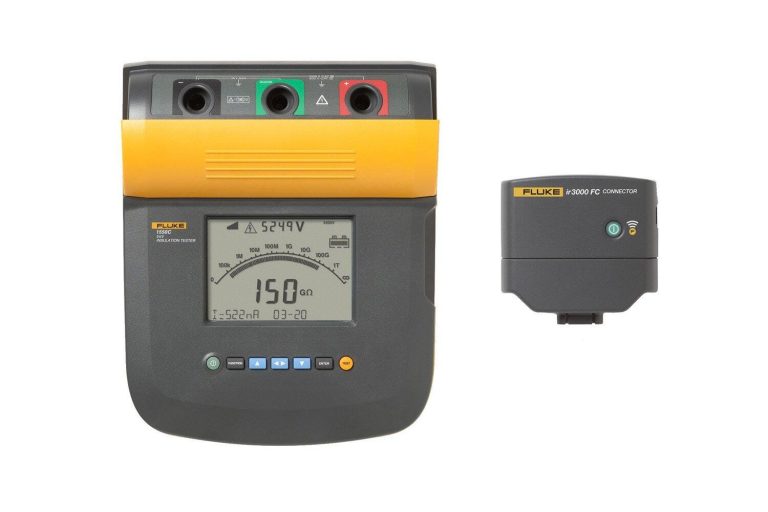

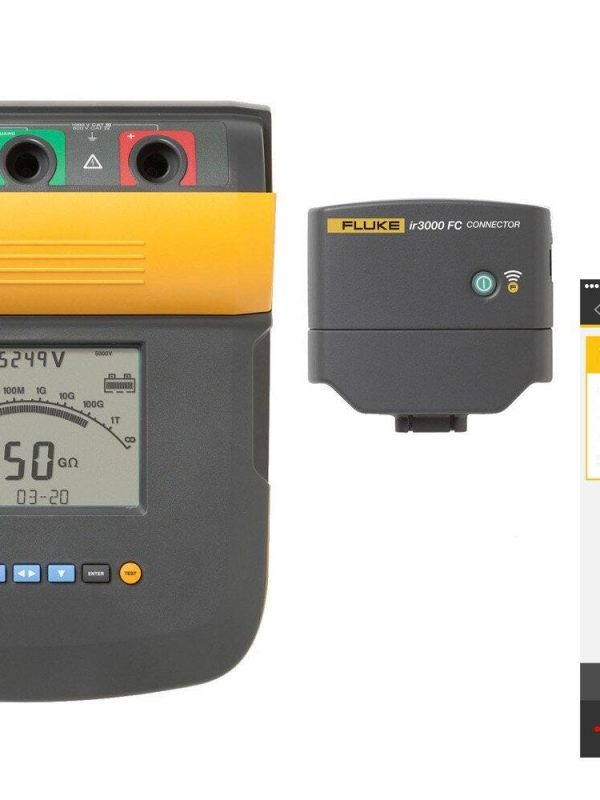

The Fluke 1550C FC 5 kV Insulation Tester Kit is a comprehensive solution for electrical system testing. With its high accuracy and reliability, this kit is ideal for technicians and engineers who need to ensure the safety and efficiency of electrical systems.

Whether you’re working on industrial, commercial, or residential projects, the Fluke 1550C provides the tools you need to get the job done.

Fluke 1550C Key Features

The Fluke 1550C insulation tester kit offers a range of advanced features, including:

Insulation resistance measurement up to 5 kV DC
Capacitance measurement up to 100 μF
Leakage current measurement up to 100 μA
Bar graph range up to 1 TΩ
Timer with 1-minute resolution
Live circuit warning
Compliance with IEC 61010-1 and IEC 61557-1 standards

Who Needs the Fluke 1550C?

The Fluke 1550C is designed for technicians and engineers who need to test and maintain electrical systems. Whether you’re working on industrial, commercial, or residential projects, this kit provides the tools you need to ensure the safety and efficiency of your electrical systems.

Fluke 1550C Applications

Industrial applications: The Fluke 1550C is ideal for testing and maintaining industrial electrical systems, including motors, generators, and transformers.
Commercial applications: This kit is also suitable for testing and maintaining commercial electrical systems, including office buildings, shopping centers, and restaurants.
Residential applications: The Fluke 1550C is perfect for testing and maintaining residential electrical systems, including homes and apartments.
Electrical panel testing: The Fluke 1550C is designed for testing electrical panels, including circuit breakers, fuses, and switches.
Motor testing: This kit is ideal for testing motors, including induction motors, synchronous motors, and DC motors.
Transformer testing: The Fluke 1550C is suitable for testing transformers, including power transformers, distribution transformers, and step-down transformers.

Why Buy Fluke 1550C from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 1550C FC 5 kV Insulation Tester Kit at an affordable price, with fast shipping and excellent customer service. Our team of experts is always available to help you with any questions or concerns you may have.

Fluke 1550C Specifications

Electrical Specifications
The tester’s accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ± .25% per °C, except on the 20% bands add ± 1% per °C.
Insulation Resistance Measurement
Test voltage (DC)
250 V	Range	< 250 kΩ, 250 kΩ to 5 GΩ 5 GΩ to 50 GΩ > 50 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
500 V	Range	< 500 kΩ 500 kΩ to 10 GΩ 10 GΩ to 100 GΩ > 100 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
1000 V	Range	< 1 MΩ 1 MΩ to 20 GΩ 20 GΩ to 200 GΩ > 200 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
2500 V	Range	< 2.5 MΩ 2.5 MΩ to 50 GΩ 50 GΩ to 500 GΩ > 500 GΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
5000 V	Range	< 5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ > 1 TΩ
	Accuracy (± reading)	Unspecified 5% 20% Unspecified
Bar graph range	0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555)
Insulation test voltage accuracy	-0%, +10% at 1 mA load current
Induced AC mains current rejection	2 mA maximum
Charging rate for capacitive load	5 seconds per μF
Discharge rate for capacitive load	1.5 s/μF
Leakage current measurement	Range	1 nA to 2 mA
	Accuracy	±(20% + 2 nA)
Capacitance measurement	Range	0.01 μF to 15.00 μF
	Accuracy	±(15% rdg + 0.03 μF)
Timer	Range	0 to 99 minutes
	Resolution setting	1 minute
	Resolution indication	1 second
Live circuit warning	Warning range	30 V to 660 V AC/DC, 50/60 Hz
	Voltage accuracy	±(15% + 2 V)
Software specifications	FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display	75 x 105 mm
Power	12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC)	85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions	269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight	3.7 kg (8.2 lb)
Temperature (operating)	-20°C to 50°C (-4°F to 122°F)
Temperature (storage)	-20°C to 65°C (-4°F to 149°F)
Humidity	80% to 31°C decreasing linearly to 50% at 50°C
Altitude	2000 m
Enclosure sealing	IP40
Input overload protection	1000 V AC
Electromagnetic compatibility	EN 61326
Safety compliance	IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2
