Description

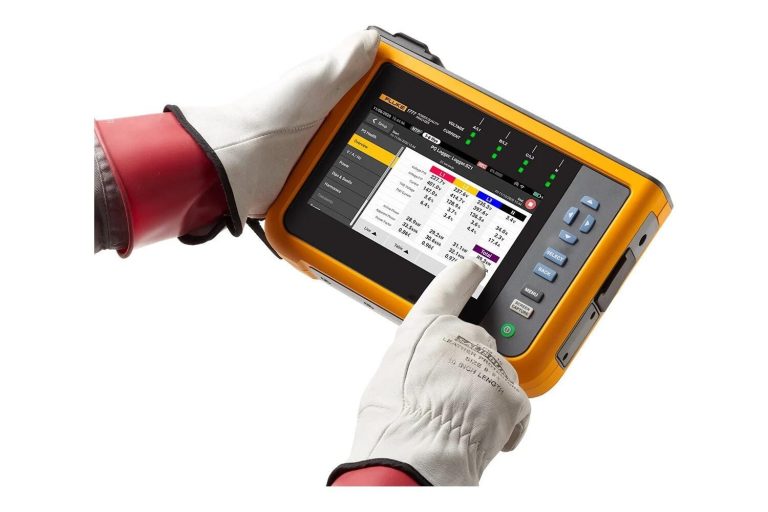

The Fluke 1770 Series is a powerful and versatile three-phase power quality analyzer designed to meet the demands of modern power distribution systems. With its wide range of measurement capabilities and high-accuracy results, this analyzer is ideal for use in industrial control, power distribution, and renewable energy applications.

Whether you’re looking to optimize power quality, troubleshoot electrical issues, or simply ensure compliance with international standards, the Fluke 1770 Series has got you covered.

Fluke 1770 Key Features

The Fluke 1770 Series offers a range of key features that make it an ideal choice for power quality analysis. These include:

Measurement of voltage, current, and power quality parameters
Wide range of measurement capabilities, including voltage dips and swells, voltage transients, and current harmonics
Robust and reliable design for use in demanding environments
Easy-to-use interface and intuitive software
High-accuracy measurements with minimal error

Who Needs the Fluke 1770?

The Fluke 1770 Series is designed for use by technicians, engineers, and buyers who require accurate and reliable power quality analysis. Whether you’re working in industrial control, power distribution, or renewable energy, this analyzer is an essential tool for ensuring optimal power quality and compliance with international standards.

Fluke 1770 Applications

Power distribution system analysis to ensure optimal power quality and minimize energy losses

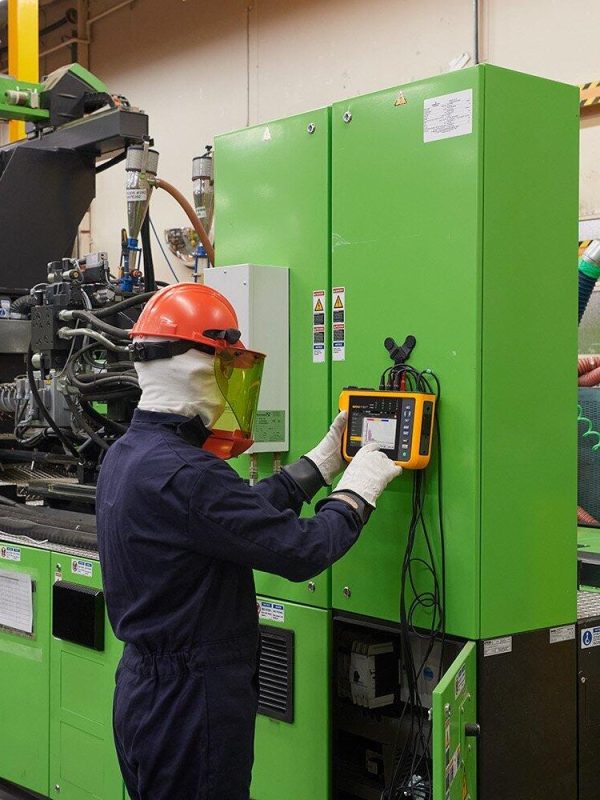

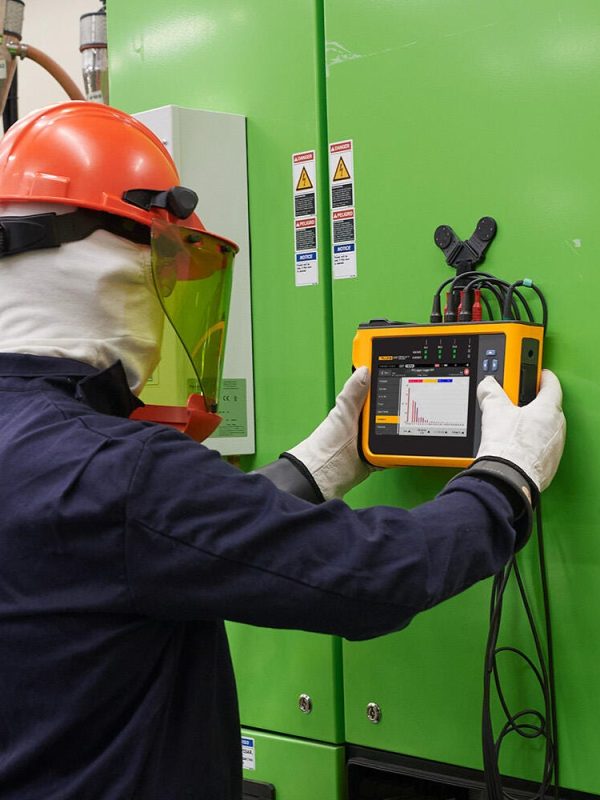

Industrial control system monitoring to detect and troubleshoot electrical issues
Renewable energy system analysis to optimize energy production and minimize downtime
Compliance testing to ensure compliance with international standards for power quality measurement
Power quality monitoring to detect and troubleshoot electrical issues in real-time
Energy efficiency analysis to optimize energy consumption and minimize energy losses
Electrical safety testing to ensure compliance with international standards for electrical safety

Why Buy Fluke 1770 from MME?

At MME, we offer the Fluke 1770 Series at competitive prices, along with expert technical support and a comprehensive warranty. Whether you’re looking to purchase a single analyzer or a large quantity, we’ve got you covered.

Fluke 1770 Specifications

Parameter		Range	Resolution	Intrinsic Accuracy at Reference Conditions % of Reading + % of Full Scale
Voltage		1000 V	0.1 V	0.1 % of nominal voltage in accordance with IEC 61000-4-30 Class A¹,² ±(0.04 % + 0.004 %)³
Voltage dips and swells		–	0.1 V	0.2 % of Vnom^1,2
Voltage transients		±8 kVpk	–	±5 % +0.25 %)
Voltage harmonics/interharmonics		100 %	0.1 % / 0.1 mV	≥1 % Vnom¹: ±2.5 % of rdg. <1 % Vnom1: ±0.025 Vnom
THD on voltage		100 %	0.1 % / 0.1 V	±(2.5 % + 0.5 %)
Voltage distortions 2-9 kHz		Max 100 V	0.1 mV	±(2.5 % + 0.1 V)
Voltage distortions 9-30 kHz		Max 100 V	0.1 mV	±(2.5 % + 0.1 V)
Current (Rogowski clamp mode)	With iFlex 1500 A, i17XX-FLEX1500 18	150 A 1500 A	0.01 % 0.1 A	±(1 % + 0.02 %)
	With iFlex 3000 A, i17XX-FLEX3000 24	300 A 3000 A	0.01 A 0.1 A	±(1 % + 0.03 %)
	With iFlex 6000 A, i17XX-FLEX6000 36	600 A 6000 A	0.1 A 1 A	±(1.5 % + 0.03 %)
	With AC clamp 40 A, i40s-EL	4 A 40 A	0.001 A 0.01 A	±(0.7 % + 0.02 %)
	With AC clamp 400 A, i400s-EL	40 A 400 A	0.01 A 0.1 A	±(2 % + 0.2 %) ±(0.7 % + 0.1 %)
	With AC/DC clamp 2000 A, 80i-2010s-EL	200 A 2000 A	0.01 A 0.1 A	±(0.8 % + 0.2 %)
Current min/max		100 %	defined by accessory	x2 of intrinsic accuracy
Current harmonics/interharmonics		100 %	0.1 % / 0.01 A	≥3 % Inom: ±2.5 % of rdg.4 <3 % Inom: ±0.15 % of Inom
THD on current		100 %	0.1 %	±(2.5 % + 0.5 %)
Frequency		42.5 Hz … 69 Hz	0.001 Hz	±0.01 Hz
Voltage unbalance		100 %	0.1 %	±0.15 %
Current unbalance		100 %	0.1 %	±0.15 %
Flicker Pinst, Pst, Plt		0 to 20	0.01	5 %
Mains signaling voltage		Up to 3 kHz 0-15 % of Vnom	0.1 V / 0.1 %	1-3 % Vnom: ±0.15 % of Vnom 3-15 % Vnom: ±5 % of rdg.
AUX input		±10 V	0.1 mV	±(0.2 % + 0.05 %)
¹ Nominal voltage in the range of 100 V to 690 V. Also known as Udin. ² 0 °C to 45 °C: Intrinsic Accuracy x2. Outside of 0 °C to 45 °C: Intrinsic Accuracy x3 ³ Only for calibration laboratories ⁴ With iFlex 1500A, I17XX-FLEX1500 18
