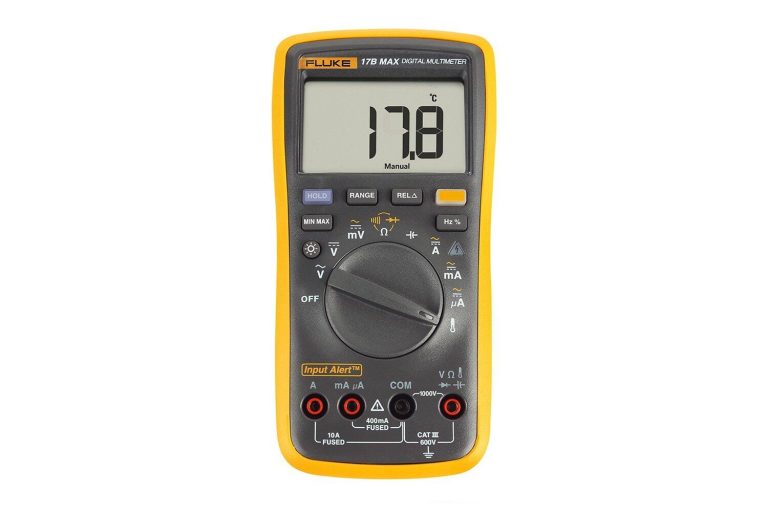

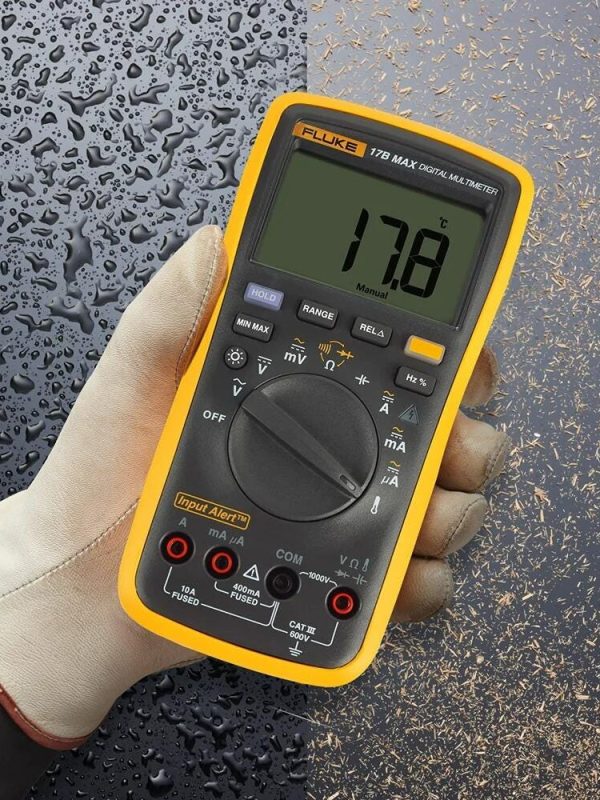

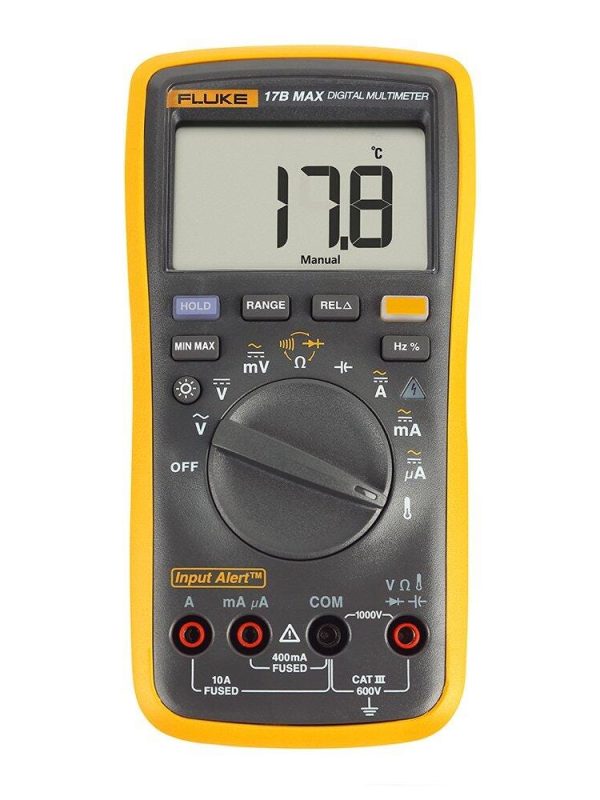

Fluke 17B MAX Digital Multimeter

Fluke 17B MAX Overview

The Fluke 17B MAX is the fuller of Fluke’s two B MAX meters. On top of the voltage, current, resistance and capacitance ranges it shares with the 15B MAX, it adds frequency, duty cycle and type K temperature, plus a hazardous-voltage LED that lights at 30 V or more. The display reads to 6000 counts and Fluke specifies a minimum of 500 hours from two AA cells.

In the UAE, the 17B MAX is a practical everyday meter for split-unit and VRF service technicians, who can check run capacitors, supply voltage and pipe temperature with one tool.

Who Needs the Fluke 17B MAX?

It suits users who need more than a basic voltage checker but not an industrial True-RMS meter:

• Building and facility electricians checking circuits, fuses and controls
• HVAC technicians who want temperature, capacitance and microamp current in one meter
• Electronics and appliance repair technicians
• Training centres and apprentices learning on a familiar Fluke layout

Fluke 17B MAX Key Features

Highlights from Fluke’s specifications and users manual:

• Hazardous voltage alert LED at 30 V and above (17B MAX only)
• Relative (REL) and MIN MAX recording modes (17B MAX only)
• Measures AC/DC voltage to 1000 V and AC/DC current to 10 A, with µA and mA ranges for control and sensor circuits
• Type K temperature from −55 °C to 400 °C, frequency from 10 Hz to 100 kHz and duty cycle from 1% to 99%
• Capacitance to 2000 µF and resistance to 40 MΩ, plus diode and continuity tests
• Input Alert gives an audible and visual warning when leads are in the wrong jacks for the selected function
• 6000-count display with backlight; any key wakes the meter from sleep
• IP40, CAT III 600 V; fused current inputs (440 mA and 11 A, 1000 V)

Fluke 17B MAX Applications

Jobs where the 17B MAX fits well:

• Checking supply voltage, continuity and fuses in distribution boards (CAT III 600 V environments)
• Measuring run capacitors and duct or pipe temperatures on air-conditioning units
• Reading 4-20 mA signals with the mA ranges
• Frequency checks on generator outputs and control circuits

Choosing between B MAX models? See our Fluke 15B MAX vs 17B MAX comparison. Other options include the Fluke 17B+, the Fluke 15B+ and the pocket-size Fluke 107; for True-RMS on industrial loads, look at the Fluke 117 EUR or the full multimeter range from Fluke.

Fluke 17B MAX Specifications

Key figures from Fluke’s specifications and users manual for the 17B MAX:

Fluke 17B MAX FAQ

Questions buyers ask about the Fluke 17B MAX:

What does the 17B MAX add over the 15B MAX?

Frequency, duty cycle, type K temperature, the hazardous-voltage LED, and the Relative (REL) and MIN MAX modes, which Fluke’s users manual marks as 17B MAX only. Voltage, current, resistance and capacitance specs are the same.

Is the 17B MAX True-RMS?

Fluke does not describe the 17B MAX as True-RMS. For non-sinusoidal loads such as drives, choose a True-RMS model like the Fluke 117 EUR or 87V.

What does the red LED mean?

It lights when the meter detects 30 V or more, as a hazardous-voltage warning.

What safety rating does it carry?

CAT III 600 V to IEC 61010-1, with a 1000 V maximum between terminals.

Which test leads are included?

Supplied accessories depend on the version (for example the 17B MAX-02 and 17B MAX KIT include TL31 fine-tip leads). Ask us which version we can supply.
