Description

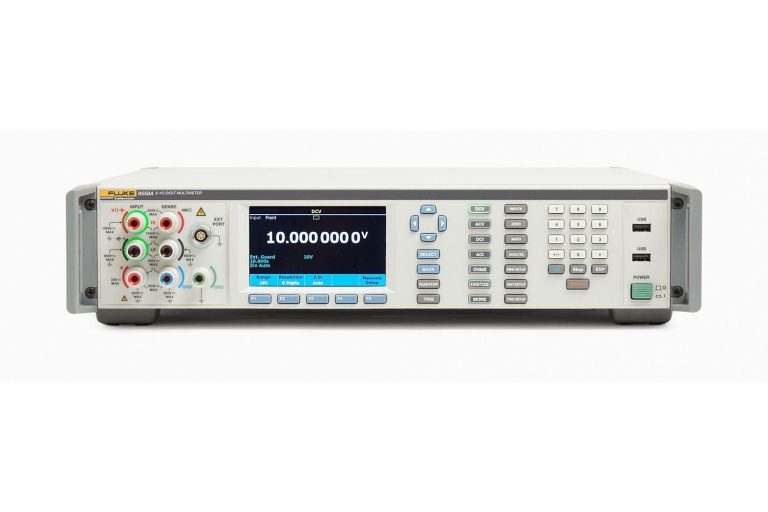

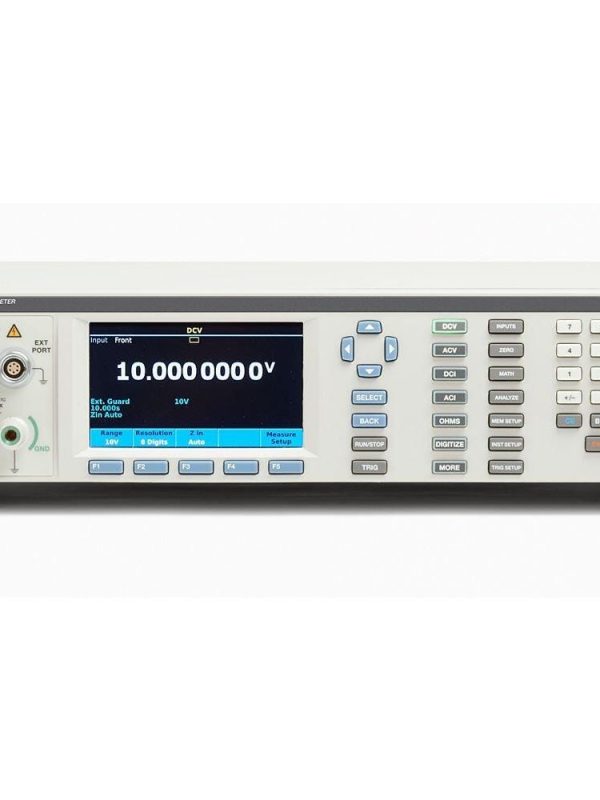

The Fluke 8558A 8.5 Digit Multimeter is designed for technicians and engineers who require precise measurements in a variety of applications.

With its 8.5-digit resolution and wide range of measurement capabilities, this multimeter is ideal for use in industrial, commercial, and residential settings.

Fluke 8558A Key Features

The Fluke 8558A features a range of key specifications, including:

8.5-digit resolution
DC voltage: 100 mV – 1000 V
AC voltage: 10 mV – 1000 V, 1 Hz – 10 MHz
Resistance: 1 Ω – 10 GΩ
DC current: 10 uA – 2 A
AC current: 10 uA – 2A, 1 Hz to 100 kHz
Digitize V: 100 mV – 1000 V, 5 MSamples/s, up to 20 MHz BW
Digitize I: 10 uA – 2 A, 5 MSamples/s, up to 4 MHz BW

Who Needs the Fluke 8558A?

The Fluke 8558A is designed for use by technicians and engineers who require precise measurements in a variety of applications, including:

Industrial process control, commercial building maintenance, and residential electrical work.

Fluke 8558A Applications

Use for industrial process control to ensure accurate measurements and optimize system performance.
Use for commercial building maintenance to diagnose and troubleshoot electrical issues.
Use for residential electrical work to ensure safe and efficient electrical systems.
Use for research and development to test and validate new electrical systems and components.
Use for quality control to ensure that electrical systems and components meet required standards.
Use for calibration to ensure that electrical instruments and equipment are accurate and reliable.
Use for data acquisition to collect and analyze electrical data for research and development purposes.

Why Buy Fluke 8558A from mme-ae?

The Fluke 8558A is available from mme-ae, a leading supplier of electrical test and measurement equipment.

With its wide range of measurement capabilities and precise accuracy, the Fluke 8558A is an ideal choice for technicians and engineers who require reliable and accurate measurements.

Fluke 8558A Specifications

Key feature and specification comparison	8558A	8588A
DC voltage	100 mV – 1000 V	100 mV – 1000 V
AC voltage	10 mV – 1000 V, 1 Hz – 10 MHz	10 mV – 1000 V, 1 Hz – 10 MHz
Resistance, LoI, HV	1 Ω – 10 GΩ	1 Ω – 10 GΩ
DC current	10 uA – 2 A	10 uA – 30 A
AC current	10 uA – 2A, 1 Hz to 100 kHz	10 uA – 30 A, 1 Hz to 100 kHz
Digitize V	100 mV – 1000 V, 5 MSamples/s, up to 20 MHz BW	100 mV – 1000 V, 5 MSamples/s, up to 20 MHz BW
Digitize I	10 uA – 2 A, 5 MSamples/s, up to 4 MHz BW	10 uA – 30 A, 5 MSamples/s, up to 4 MHz BW
Frequency (V, I, BNC)	1 Hz to 10 MHz, 1 Hz to 100 kHz, 10 Hz to 100 MHz	1 Hz to 10 MHz, 1 Hz to 100 kHz, 10 Hz to 100 MHz
Temperature	PRT / Thermocouple (ext CJC)	PRT / Thermocouple (ext CJC)
Capacitance	No	1 nF – 100 mF
RF power	No	R&S NRP Series
Ext. dc current and ac current	No	A40B current shunt and other shunts
Graphical display	Yes	Yes
Visual Connection Management ®	Yes	Yes
Programmable front/rear input switching	Yes	Yes
Ratio difference, deviation – ohms, voltage	Yes	Yes
External 10 MHz ref clock, 50 Î©/Hi-Z	Yes	Yes
A40B and other shunt asset management	No	Yes

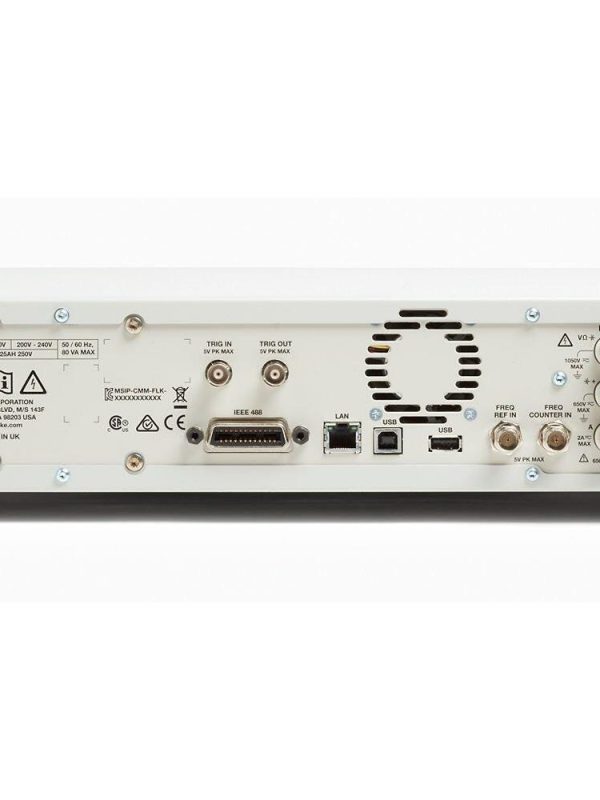

GPIB 488.2, Ethernet, USB TMC	Yes	Yes
SCPI command compatibility	Yes	Yes
3458A emulation, 8508A emulation	Yes	Yes
Memory	15 million	15 million
Level and other trigger	Yes	Yes
FFT onboard	No	Yes
Reading rates: 5 MS/s into memory, bus: 100 kS/s at 4.5 digits, 1 rdg/s at 8.5 digits	Yes	Yes
