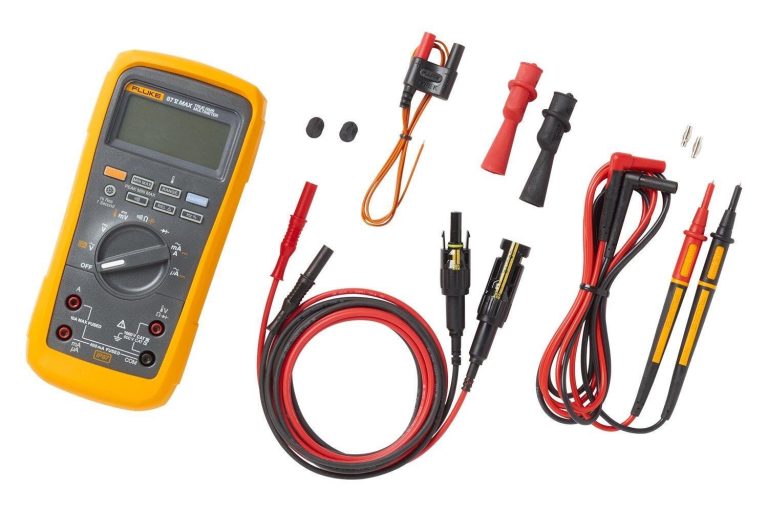

Fluke 87V Max Digital Multimeter and Test Leads

The Fluke 87V Max Digital Multimeter and Test Leads is a versatile and reliable tool for professionals and DIY enthusiasts alike. With its high-accuracy true-rms AC measurements and compact design, it’s perfect for a variety of applications, from electrical troubleshooting to solar panel testing.

Fluke 87V Key Features

The Fluke 87V Max Digital Multimeter and Test Leads offers a range of advanced features, including:

• DC Voltage: Range: 200 mV to 1000 V, Accuracy: ±(0.05% + 1), Maximum resolution: 0.1 mV
• AC Voltage: Range: 20 mV to 600 V, Accuracy: ±(0.7% + 4), true-rms AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz, Maximum resolution: 0.1 mV
• DC Current: Range: 0.1 µA to 10 A, Amps accuracy: ±(0.2% + 2), Maximum resolution: 0.1 µA
• AC Current: Range: 0.1 µA to 10 A, Amps accuracy: ±(1.0% + 2) true-rms, Maximum resolution: 0.1 µA
• Resistance: Range: 0.1 Ω to 40 MΩ, Accuracy: ±(0.2% + 1), Maximum resolution: 0.1 Ω
• Capacitance: Range: 0.01 nF to 40,000 µF, Accuracy: ±(1% + 2), Maximum resolution: 0.01 nF
• Frequency: Range: 1 Hz to 100 kHz, Accuracy: ±(0.005% + 1), Maximum resolution: 0.01 Hz
• Duty cycle: Maximum duty cycle Accuracy: ±(0.2% per kHz + 0.1%), Maximum resolution: 0.1%
• Temperature measurement range: –200.0 °C to 1090 °C –328.0 °F to 1994.0 °F excluding probe 80 BK temperature probe: –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater –40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater
• Conductance: Maximum conductance Accuracy: ±(1.0% + 10), Maximum resolution: 0.01 nS
• Diode test: Range Resolution: 0.001V, Accuracy: ±(1% + 1)
• Diagnostics and data storage: Peak Min/Max Min/Max/Avg: Yes, Reading hold/Auto (Touch) Hold: Yes, Relative reference: Yes
• Display: Digital, Analog bar graph: 32 segments, updates 40/second, Backlight: Two level, Low pass filter (VFD measurements): Yes, Input Alert™: Yes

Who Needs the Fluke 87V?

The Fluke 87V Max Digital Multimeter and Test Leads is designed for professionals and DIY enthusiasts who need a reliable and accurate tool for a variety of applications, including electrical troubleshooting, solar panel testing, and more.

Fluke 87V Applications

• Electrical Troubleshooting: Use the Fluke 87V to diagnose and repair electrical issues in residential, commercial, and industrial settings.
• Solar Panel Testing: Use the Fluke 87V to test and troubleshoot solar panels and inverters.
• Industrial Maintenance: Use the Fluke 87V to perform routine maintenance and troubleshooting on industrial equipment.
• Automotive Diagnostics: Use the Fluke 87V to diagnose and repair electrical issues in vehicles.
• Home Improvement: Use the Fluke 87V to perform electrical work and troubleshooting in residential settings.

Why Buy Fluke 87V from mme-ae?

At mme-ae, we offer the Fluke 87V Max Digital Multimeter and Test Leads at a competitive price, with fast shipping and excellent customer service. Whether you’re a professional or DIY enthusiast, we have the tools and expertise to help you get the job done.

Fluke 87V Specifications

Buy the Fluke 87V Max Digital Multimeter and Test Leads from MME today and take advantage of our expertise and competitive pricing. Contact us to learn more.
